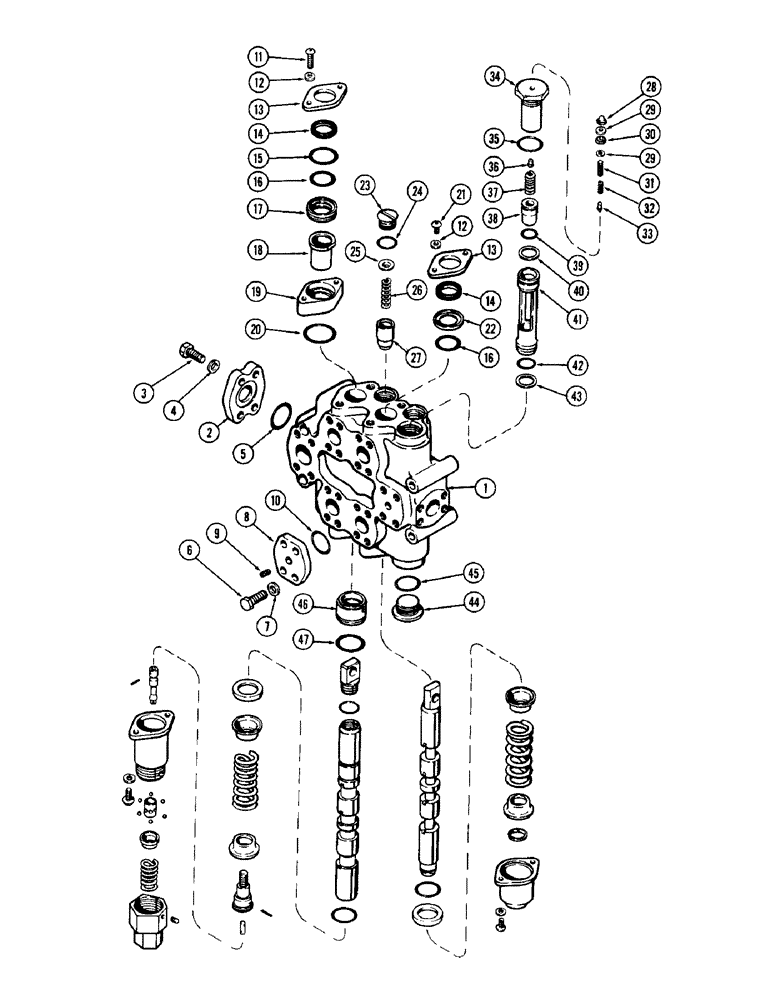

Запчасти Case W12 (172) - HYDRAULIC CONTROL VALVE (08) - HYDRAULICS

A56429

SPARE PART

VALVE ASSY. - control, hyd. (2 spool), Includes: Ref. 1 - 47

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve, (Order A56429)

1шт.

2

A15534

COVER - valve body

1шт.

3

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

4

92-8

LOCK WASHER,1/2"

4шт.

5

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

"O" RING - cover seal

1шт.

6

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

4шт.

7

92-7

LOCK WASHER,7/16"

4шт.

8

A15548

COVER - valve

1шт.

9

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Pipe Hex Soc, 1/4"-18 NPTF

1шт.

10

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

"O" RING - valve cover

1шт.

11

75-520

SCREW - mach., 5/16" N.C. x 1-3/4"

2шт.

12

92-5

LOCK WASHER,5/16"

4шт.

13

A15546

RETAINER

- wiper

2шт.

14

A25584

WIPER

- spool

2шт.

15

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

"O" RING - float spool

1шт.

16

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

"O" RING - spool seal (replaces A27507)

2шт.

17

A15558

RETAINER - seal, spool

1шт.

18

A15557

SLEEVE - spool, float

1шт.

19

A15559

RETAINER - sleeve & seal, spool

1шт.

20

A15529

O-RING,0.103" Thk x 1.925" ID, -135, Cl 5, 75 Duro

"O" RING - retainer, sleeve

1шт.

21

75-512

SCREW,Rd, 5/16" - 18 x 3/4"

- mach., 5/16" N.C. x 3/4"

2шт.

22

A15537

RETAINER

- spool wiper

1шт.

23

218-5159

PLUG,1-3/16" - 12 ORB

ASSY. - flow directional control, Includes: Ref. 24

4шт.

24

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

"O" RING - plug, 7/8" tube

1шт.

25

A15542

GUIDE - spring

4шт.

26

A15541

SPRING - poppet

4шт.

27

A15540

POPPET - directional control

4шт.

28

129-514

CROWN NUT,Low, 5/16" - 24

- light hex. acorn, 5/16" N.F.

1шт.

29

D26270

WASHER, SEALING

GASKET - relief valve

2шт.

30

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex., jam, 5/16" N.C.

1шт.

31

A15909

X

SCREW - set, relief valve

1шт.

32

D26268

SPRING

- relief valve

1шт.

33

D26267

PLUNGER

- relief valve

1шт.

34

A25592

CAP - adj., relief valve

1шт.

35

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

"O" RING - adj. cap

1шт.

36

D26266

SEAT

- plunger

1шт.

37

A25591

SPRING - relief valve

1шт.

38

A40175

PLUNGER ASSY. - relief valve

1шт.

39

A25590

O-RING,15" ID x 1 1" OD x 3/32"

"O" RING - plunger

1шт.

40

A25589

X

RING - back up, plunger

1шт.

41

A25585

SEAT

- plunger

1шт.

42

A32180

O-RING,0.103" Thk x 1.174" ID, -123, Cl 5, 75 Duro

"O" RING - plunger seat

1шт.

43

A25586

RING - back-up, plunger seat

1шт.

44

A25277

X

PLUNGER - lower, relief valve

1шт.

45

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

"O" RING - plug, 1-1/8" tube

1шт.

46

A15555

RESTRICTOR - spool

1шт.

47

A15528

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

"O" RING - restrictor

1шт.

A56429

SPARE PART

VALVE ASSY. - control, hyd. (2 spool)

1шт.

48

A25575

SPOOL ASSY. - float

1шт.

49

A15563

EYE - spool end

1шт.

50

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - spool eye, 3/4" tube

1шт.

51

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

"O" RING - spool seal (replaces A27507)

1шт.

52

A15556

RING, SNAP

RETAINER - o-ring

1шт.

53

A25579

RETAINER - spring, inner

1шт.

54

A25580

SPRING - inner & outer retainer

1шт.

55

A15543

RETAINER

- spring, outer

1шт.

56

A25583

BARREL & PLUG ASSY. - detent

1шт.

57

A25581

FLANGE - barrel

1шт.

58

92-5

LOCK WASHER,5/16"

2шт.

59

75-512

SCREW,Rd, 5/16" - 18 x 3/4"

- mach., 5/16 x 3/4" N.C. rhd.

2шт.

60

A16848

SLEEVE CYLINDER

SLEEVE - detent

1шт.

61

A16851

X

BALL - detent (.1875")

6шт.

62

A16852

RETAINER

- ball, detent

1шт.

63

A16853

VALVE SPRING

SPRING - retainer, ball

1шт.

64

A25582

CAP - detent, outer

1шт.

65

A16855

SCREW

- set, detent cap

1шт.

66

A25574

SPOOL ASSY. - tilt

1шт.

67

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - spool seal

1шт.

68

A15556

RING, SNAP

RETAINER - o-ring

1шт.

69

A15543

RETAINER

- spring

2шт.

70

A25580

SPRING - return, spool

1шт.

71

A15530

RING - snap, retainer

1шт.

72

A15560

CAP - spool end

1шт.

73

92-5

LOCK WASHER,5/16"

2шт.

74

75-512

SCREW,Rd, 5/16" - 18 x 3/4"

- mach., 5/16 x 3/4" N.C. rhd.

2шт.
