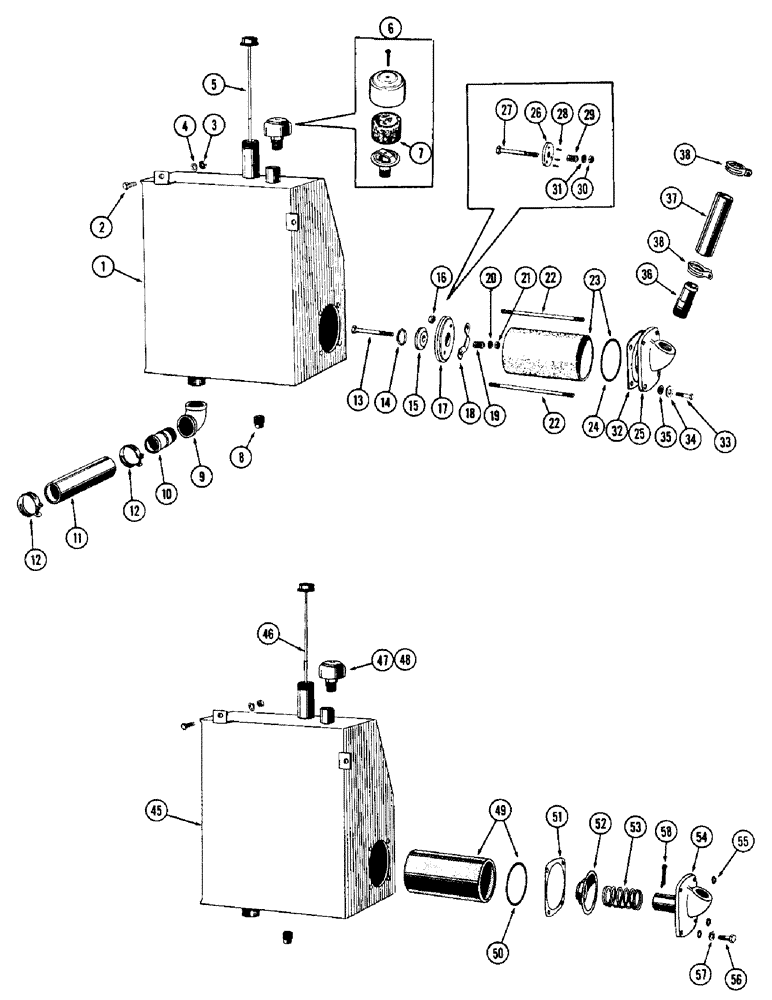

Запчасти Case W12 (170) - HYDRAULIC OIL RESERVOIR TANK, LATE PRODUCTION, HYDRAULIC OIL (08) - HYDRAULICS

1

A16588

TANK - hydraulic oil reservoir

1шт.

2

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- hex. hd., 3/8" x 1-1/4" N.F.

3шт.

3

25-116

NUT,Hex, 3/8"-24, G5

- hex., 3/8" N.F.

3шт.

4

92-6

LOCK WASHER,3/8"

3шт.

5

A16589

CAP ASSY. - oil lever and filler

1шт.

6

A9238

BREATHER

ASSY. - oil tank, Includes: Ref. 7

1шт.

7

A10059

FILTER, ELEMENT

ELEMENT - breather filtering

1шт.

8

A17429

PLUG

- magnetic drain, 3/4" P.T.

1шт.

9

221-1397

ELBOW - pipe, 2" P.T. x 90 degrees

1шт.

10

A14133

NIPPLE - oil tank outlet

1шт.

11

A14144

HOSE - tank outlet to suction tube

1шт.

12

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

A16564

FILTER ASSY. - hydraulic oil, Includes: Ref. 13 - 31

1шт.

13

13-452

BOLT,Hex, 1/4" - 20 x 3-1/4", Gr 5

- hex. hd., 1/4" x 3-1/4" N.C.

1шт.

14

A27385

SHIM,.005" Thk

O- Ring - relief opening .005" Thk

1шт.

15

A18785

COVER ASSY

COVER - filter relief

1шт.

16

131-31

LOCK NUT,5/16"-24, G8

NUT - lock hex., 5/16" NF, Essna

2шт.

17

A16582

VALVE

COVER - filter inner

1шт.

18

A16583

SPACER - relief spring

1шт.

19

A30709

VALVE SPRING

SPRING - filter relief

1шт.

20

195-18

WASHER,1/4"

- plain, 1/4"

1шт.

21

131-506

NUT,1/4-20

NUT - hex. lock, 1/4"-20 N.C.

1шт.

22

A16584

SPRING SEAT

STUD - filter & rear cover mounting

2шт.

23

A16784

KIT

ELEMENT KIT - filter, Includes: Ref. 24

1шт.

24

A16735

GASKET

- element mounting

2шт.

25

A16587

COVER - filter mounting cover

1шт.

26

A16581NS

COVER - relief (Order A18785)

1шт.

27

14-540

BOLT,Hex, 5/16" - 24 x 2-1/2", Gr 5

- hex. hd., 5/16 x 2-1/2" N.F. (Use w/A16581)

1шт.

28

135-227

AXLE PIN,1/8" x 5/8", Type B

PIN - grooved, , use w/A16581 1/8" x 5/8", Type B

3шт.

29

A26418

SPRING - filter relief (Use w/A16581)

1шт.

30

131-3

LOCK NUT,5/16"-24, GB

NUT - lock, 5/16"-24 N.F. (Use w/ref. 27)

1шт.

31

195-21

WASHER,5/16"

- plain, (Use w/Ref. 27) 5/16"

1шт.

32

A12289

GASKET

- filter, Serial Range: mounting-tank

1шт.

33

A16900

BOLT - cover mounting

4шт.

34

95-5

WASHER,3/8" x 7/8" x .083"

- plain, 5/16"

4шт.

35

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

"O" RING - mounting cover bolt

4шт.

36

A12295

NIPPLE - oil tank inlet

1шт.

37

A12303

INTAKE AIR HOSE,1.50" ID

x 7.50", SAE 20R1 - Oil return 1.50" ID

1шт.

38

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

45

A14127NS

TANK - hydraulic oil (Order new tank & filter), hydraulic oil reservoir tank early production

1шт.

46

A12286

CAP ASSY. - oil level & filler, hydraulic oil reservoir tank early production

1шт.

47

A9238

BREATHER

ASSY. - oil tank, Includes: Ref. 48, hydraulic oil reservoir tank early production

1шт.

48

A10059

FILTER, ELEMENT

ELEMENT - filtering (Not illust.), hydraulic oil reservoir tank early production

1шт.

49

A16784

KIT

ELEMENT KIT - oil filter, Includes: Ref. 50, hydraulic oil reservoir tank early production

1шт.

50

A16735

GASKET

- filter element, hydraulic oil reservoir tank early production

2шт.

51

A12289

GASKET

- filter cover mounting, hydraulic oil reservoir tank early production

1шт.

52

A12293

RETAINER - oil filter, hydraulic oil reservoir tank early production

1шт.

53

A12292

SPRING - oil filter, hydraulic oil reservoir tank early production

1шт.

54

A14131

COVER - filter mounting, hydraulic oil reservoir tank early production

1шт.

55

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

"O" RING - cover bolt, hydraulic oil reservoir tank early production

4шт.

56

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Hydraulic oil reservoir tank early production Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

57

92-6

LOCK WASHER,3/8"

hydraulic oil reservoir tank early production 3/8"

4шт.

58

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), , Hydraulic oil reservoir tank early production 1/8" x 2"

1шт.
