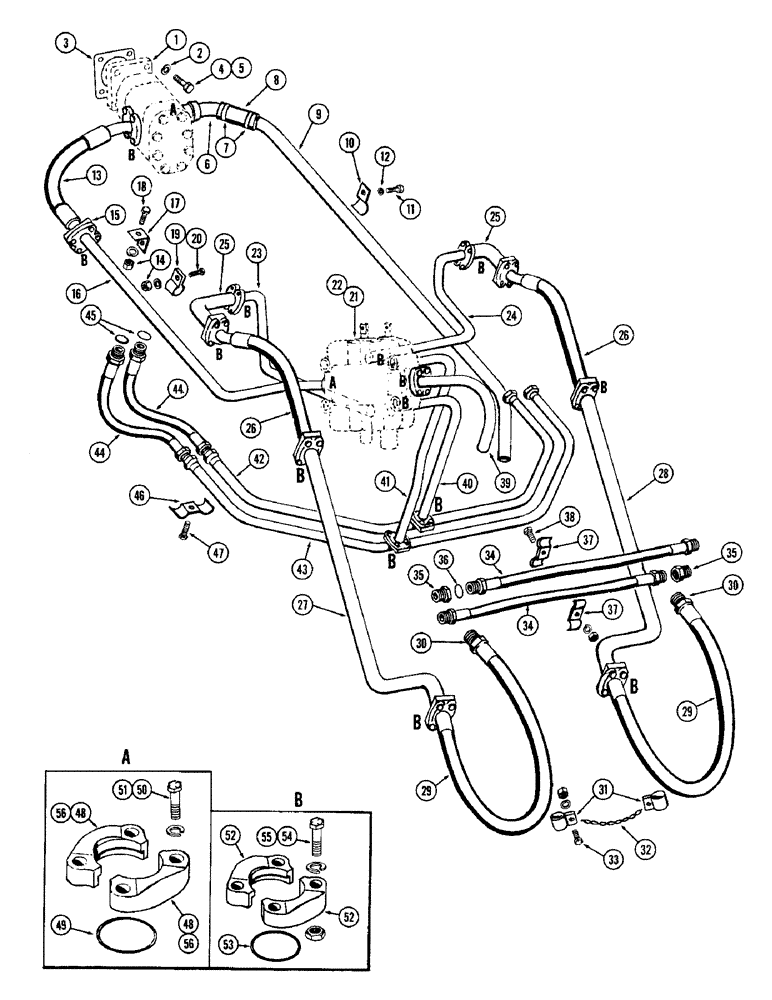

Запчасти Case W12 (168) - BUCKET-LIFT ARM HYDRAULIC SYSTEM (08) - HYDRAULICS

1

A16690

PUMP, HYDRAULIC

PUMP ASSY. - hydraulic (Repairs, figure 182)

1шт.

2

92-8

LOCK WASHER,1/2"

4шт.

3

A12304

GASKET,0.4mm Thk

- pump mounting

1шт.

4

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

5

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex. hd., 1/2 x 1-3/4" N.C.

2шт.

6

A16709

TUBE - suction, hydraulic

1шт.

7

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

8

A14143

HOSE - suction tube

1шт.

9

A14145

TUBE - suction, pump to reservoir tank

1шт.

10

A14146

CLAMP - suction tube

1шт.

11

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

- hex. hd., 3/8 x 1-1/2" N.F.

1шт.

12

92-6

LOCK WASHER,3/8"

1шт.

13

A16706

HOSE ASSY. - pump inlet

1шт.

14

25-116

NUT,Hex, 3/8"-24, G5

- hex., 3/8" N.F.

2шт.

15

A14148

PLATE

- split-flange connector

1шт.

16

A14149

TUBE - pump inlet, Serial Range: valve-plate

1шт.

17

A14182

BRACKET - tube clamp

1шт.

18

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- hex. hd., 3/8 x 1-1/4" N.F.

1шт.

19

A14183

CLAMP - pump inlet tube

1шт.

20

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- hex. hd., 3/8 x 1" N.F.

1шт.

21

A56429

SPARE PART

VALVE ASSY. - control (Repairs figure 172 & 174)

1шт.

22

A16433

VALVE ASSY. - hyd. control (Order A56429) (Repairs, Figure 176)

1шт.

23

A14174

TUBE - valve to R.H. connector

1шт.

24

A14175

TUBE - valve to L.H. connector

1шт.

25

A13959

TUBE ASSY. - tilt cylinder, Serial Range: (Welded-chassis)

2шт.

26

A14179

HOSE - junction tube to tilt cyl. tube

2шт.

27

A14314

TUBE - intermediate R.H. tilt cylinder

1шт.

28

A14315

TUBE - intermediate L.H. tilt cylinder

1шт.

29

A14180

HOSE - intermediate tube to tilt cylinder

2шт.

30

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" RING - 1" O.D. tube

2шт.

31

A13241

CLAMP - tilt cylinder hoses

2шт.

32

A13242

O-RING

CHAIN - tie, tilt cyl. clamps

1шт.

33

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

2шт.

34

A14181

HOSE - cross, tilt, Serial Range: cyl.-cyl.

2шт.

35

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

FITTING - adapter, tilt cyl. cross hose, Incl. Ref. 36

2шт.

36

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - adapter fitting

1шт.

37

A12332

CLAMP

- cross hoses

2шт.

38

14-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

- hex. hd., 3/8 x 1-1/4" N.F.

1шт.

39

A14153

TUBE - return, valve to reservoir tank

1шт.

40

A14158

TUBE - valve to inner manifold

1шт.

41

A14170

TUBE - valve to outer manifold

1шт.

42

A14160

TUBE - inner manifold (Lift cylinder)

1шт.

43

A14161

TUBE - outer manifold (Lift cylinder)

1шт.

44

A14172

HOSE

- lift, Serial Range: cylinder-manifold

4шт.

45

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

"O" RING - lift cylinder hose

4шт.

46

A12332

CLAMP

- inner and outer manifold tube

2шт.

47

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

- hex. hd., 3/8" x 1-1/2" N.F.

2шт.

48

A14157

FLANGE

CLAMP - split-flange, hydraulic

4шт.

49

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

"O" RING - split-flange clamp

2шт.

50

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

(At pump) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

51

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

(At valve) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

52

A12301

CLAMP,Half

CLAMP - split flange, hydraulic

32шт.

53

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

"O" RING - split-flange clamp

18шт.

54

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

56шт.

55

A15605

BOLT - split clamp to frame (Ref. 23 & 24)

8шт.

56

A14141

FLANGE

CLAMP - split-flange, hyd. (Use w/ref. 12)

2шт.
