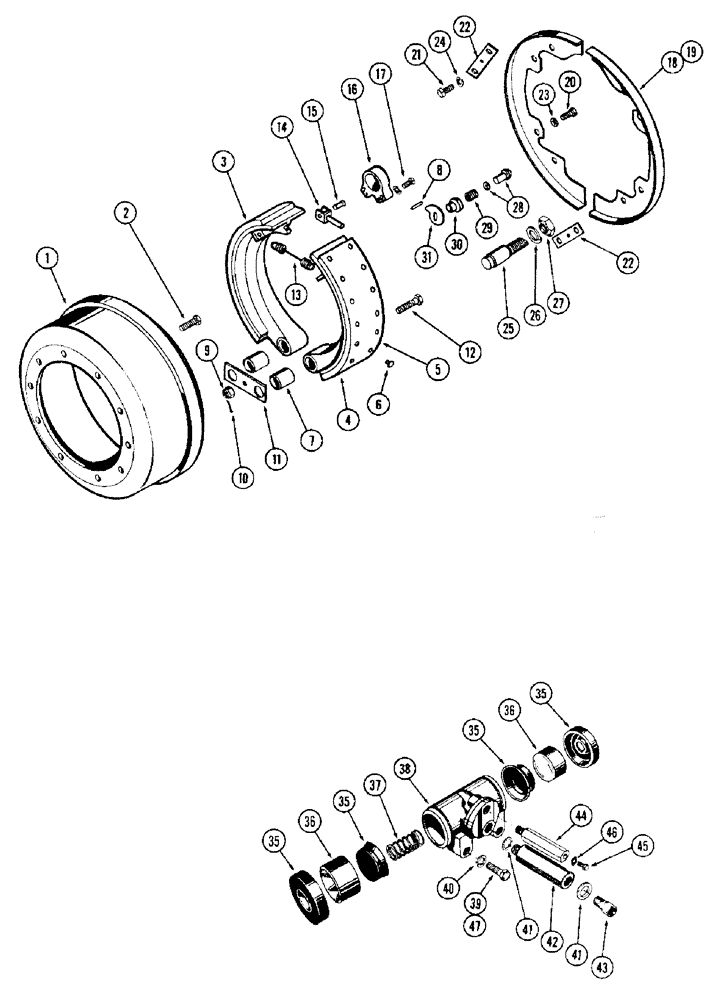

Запчасти Case W12 (152) - REAR AXLE BRAKE ASSEMBLY (07) - BRAKES

A14199

AXLE ASSY. - complete, rear steering, Includes: Ref. 1 - 31

1шт.

1

A15045

DRUM

DRUM - brake, axle

2шт.

2

A14962

BOLT,5/8" x 1 1/2", Gr 8

BOLT - brake, Serial Range: drum-hub

20шт.

3

A15073

SHOE

SHOE ASSY. - brake, L.H. front and R.H. rear, Includes: Ref. 5 - 8

2шт.

4

A15072

BRAKE SHOE

SHOE ASSY. - brake, L.H. rear and R.H. front, Includes: Ref. 5 - 8

2шт.

5

A14998

KIT

KIT - lining , brake shoe, Includes: Ref. 6

1шт.

6

A15060

RIVET

RIVET - brake lining

32шт.

7

A15062

BUSHING

BUSHING - brake shoe

2шт.

8

A15065

SPARE PART PIN - brake cam

2шт.

9

129-225

X

NUT - slotted hex., 1/2" N.F., shear

2шт.

10

132-28

COTTER PIN,3/32" x 1"

2шт.

11

A15064

LINK

LINK - brake shoe

2шт.

12

A15059

BOLT

BOLT - brake shoe link

2шт.

13

A15071

SPRING

SPRING - brake shoe return

2шт.

14

A14996

LINK

YOKE ASSY. - cylinder actuator, Includes: Ref. 15

4шт.

15

A14999

PIN - yoke

1шт.

16

A15058

ADAPTER

ADAPTER - wheel cylinder

2шт.

17

113-408

X

BOLT - hex. hd., 1/2 x 2' N.C. (grade 8)

4шт.

18

A15075

SPARE PART SHIELD - brake dust, L.H. front and R.H. rear

2шт.

19

A15074

SPARE PART SHIELD - brake dust, R.H. front and L.H. rear

2шт.

20

13-78

BOLT,Hex, 7/16" - 14 x 1/2", Gr 5, Full Thd

4шт.

21

13-69

BOLT,Hex, 3/8" - 16 x 9/16", Gr 5, Full Thd

12шт.

22

A15067

SPARE PART PLATE - dust shield mounting

4шт.

23

92-7

LOCK WASHER,7/16"

4шт.

24

92-6

LOCK WASHER,3/8"

12шт.

25

A15066

AXLE PIN

PIN - anchor, brake shoe

4шт.

26

92-16

LOCK WASHER,1"

4шт.

27

A15063

NUT

NUT - brake anchor pin

4шт.

28

A16391

AXLE PIN

PIN ASSY. - brake shoe adjusting

4шт.

29

A15069

VALVE SPRING

SPRING - cam adjusting

4шт.

30

A15061

SPACER

RETAINER - cam spring

4шт.

31

A15070

X

CAM - brake shoe adjusting

4шт.

A14199

AXLE ASSY. - complete, rear steering, Includes: Ref. 35 - 47, rear wheel brake cylinder

1шт.

A15057

CYLINDER

CYLINDER ASSY. - rear wheel brake cylinder, Includes: Ref. 35 - 47

2шт.

35

A14994

KIT

REPAIR KIT - wheel cylinder (incl. 2 cups & 2 boots) rear wheel brake cylinder

1шт.

36

A15000

PISTON ASSY.

PISTON - cylinder, rear wheel brake cylinder

2шт.

37

A15053

SPRING

SPRING ASSY. - piston, w/ filler, rear wheel brake cylinder

1шт.

38

NSS

NOT SOLD SEPARAT

BODY - wheel cylinder (order A15057), rear wheel brake cylinder

1шт.

39

113-222

X

BOLT - hex. hd., 3/8 x 1-3/8" N.C., rear wheel brake cylinder

4шт.

40

92-6

LOCK WASHER,3/8"

rear wheel brake cylinder

4шт.

41

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - inlet fitting, rear wheel brake cylinder

4шт.

42

A15054

EXTENSION

EXTENSION - inlet fitting, rear wheel brake cylinder

2шт.

43

A12989

ADAPTER

FITTING - cylinder inlet, rear wheel brake cylinder

2шт.

44

A15056

SCREW,Bleed, 1/4" - 28 x 2 15/16"

EXTENSION - bleeder screw, rear wheel brake cylinder

2шт.

45

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

Rear wheel brake cylinder

2шт.

46

92-4

LOCK WASHER,1/4"

Rear wheel brake cylinder

2шт.

47

166-86

12 PT SCREW,Flg, 1/2" - 13 x 1 1/4", Gr 8

CAP SCREW - 12 pt. ferry, 1/2 x 1-1/4" N.C. (used on center model cylinders), rear wheel brake cylinder

4шт.
