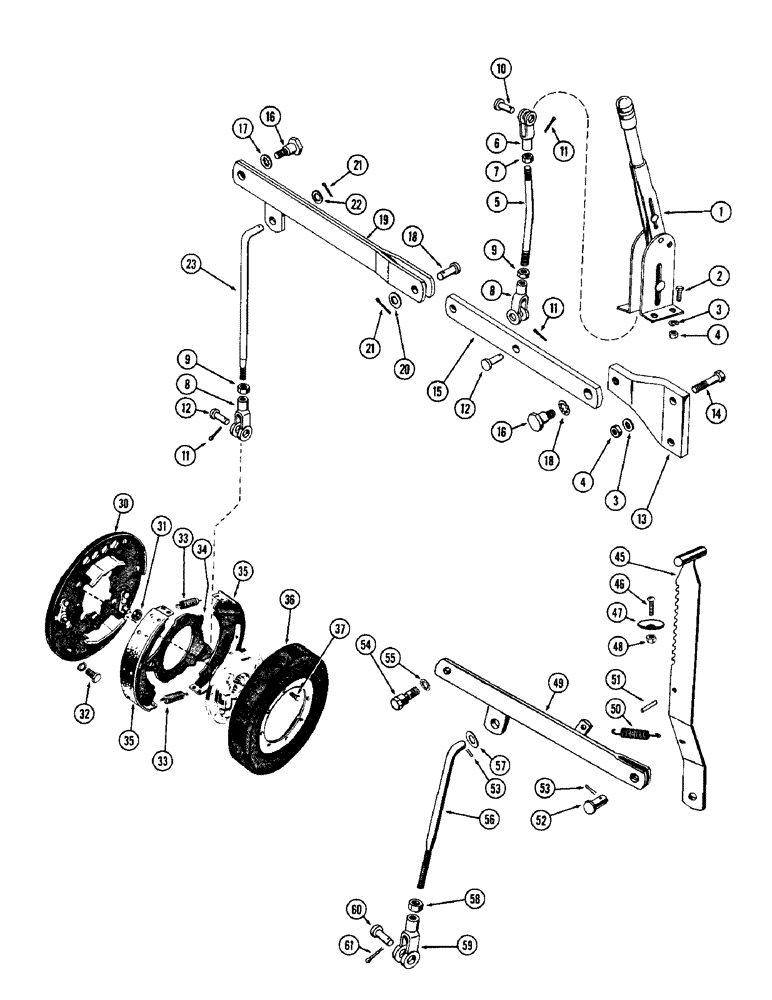

Запчасти Case W12 (096) - OVER CENTER PARKING BRAKE (07) - BRAKES

1

A16533

LEVER ASSY. - parking brake

1шт.

2

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

3

92-6

LOCK WASHER,3/8"

6шт.

4

25-106

NUT,3/8"-16, G5

- hex., 3/8" N.C.

6шт.

5

A16595

ROD - upper control

1шт.

6

213-3

ADJUSTABLE CLEVIS,5/16"-24

YOKE - end, 3/8" light

1шт.

7

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex. jam, 5/16" N.F.

1шт.

8

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - end, 1/2" light

2шт.

9

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex. jam, 3/8" N.F.

2шт.

10

T11232

PIN

- clevis, 5/16" x 2"

1шт.

11

132-25

COTTER PIN,3/32" x 5/8"

PIN - cotter, 5/32" x 5/8"

3шт.

12

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

2шт.

13

A16596

BRACKET - hand lever

1шт.

14

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex. hd., 3/8 x 1-1/2" N.C.

2шт.

15

A16594

LEVER - front control

1шт.

16

A14265

STUD

- pivot, lever

2шт.

17

193-64

WASHER - lock, 1/2" int. Shakeproof

2шт.

18

141-5

CLEVIS PIN,7/16" x 1.190"

PIN - clevis, 7/16" dia.

1шт.

19

A16611

LEVER - rear control

1шт.

20

195-29

WASHER,7/16"

- plain, 7/16"

1шт.

21

132-46

COTTER PIN,1/8" x 3/4"

PIN - cotter, 3/32 x 5/8"

2шт.

22

195-33

WASHER,1/2"

- plain, 1/2"

1шт.

23

A14266

ROD - lower control

1шт.

30

A15974

PLATE ASSY. - brake backing, parking brake

1шт.

31

A16642

WASHER

ROLLER - cam lever, parking brake

1шт.

32

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

Parking brake Hex, 5/8"-11 x 1 1/4", G5, Full Thd

3шт.

33

A12778

SPRING

- brake shoe return, parking brake

2шт.

34

A12779

LEVER

- cam, parking brake

1шт.

35

A12780

BRAKE SHOE

SHOE ASSY. - brake (Set of 2), parking brake

1шт.

36

A12777

DRUM - brake, parking

1шт.

37

14-614

SCREW,Hex, 3/8" - 24 x 7/8", Gr 5

BOLT - hex. hd., 3/8" x 3/4" N.F., parking brake

8шт.

45

A14263

HANDLE - ratchet, brake, ratchet type parking brake

1шт.

46

76-612

SCREW - mach., 3/8" x 3/4" N.F. rd. hd., ratchet type parking brake

1шт.

47

A27698

GASKET

PAWL - handle, ratchet type parking brake

1шт.

48

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex. jam, 3/8" N.F., ratchet type parking brake

1шт.

49

A14260

LEVER - hand brake, ratchet type parking brake

1шт.

50

A10436

VALVE SPRING

SPRING - lever return, ratchet type parking brake

1шт.

51

138-134

LOCK PIN,1/4" x 1", Slotted

PIN, , Ratchet type parking brake 1/4" x 1", Slotted

1шт.

52

A12470

PIN

- pivot, ratchet handle, ratchet type parking brake

1шт.

53

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), , Ratchet type parking brake 1/8" x 3/4"

2шт.

54

A14265

STUD

- pivot, lever, ratchet type parking brake

1шт.

55

193-64

WASHER - lock, 1/2" int. Shakeproof, ratchet type parking brake

1шт.

56

A14266

ROD - lower control, ratchet type parking brake

1шт.

57

195-33

WASHER,1/2"

- plain, , ratchet type parking brake 1/2"

1шт.

58

25-116

NUT,Hex, 3/8"-24, G5

- hex. jam, 3/8" N.F., ratchet type parking brake

1шт.

59

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - end, 1/2" light, ratchet type parking brake

1шт.

60

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Ratchet type parking brake 3/8" x 1.060"

1шт.

61

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), , Ratchet type parking brake 3/32" x 5/8"

1шт.
