Запчасти Case W12 (094) - HYDROVAC CYLINDER REPAIR KITS, POPPET KIT, MINOR KIT, MAJOR (07) - BRAKES

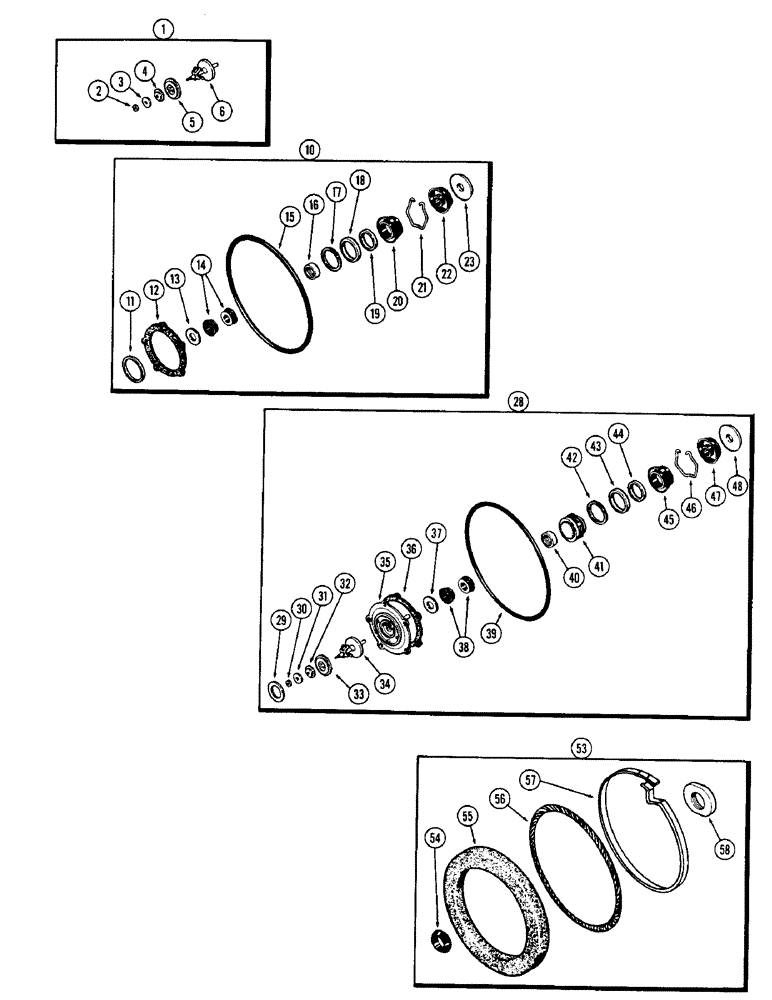

Схема запчастей Case W12 - (094) - HYDROVAC CYLINDER REPAIR KITS, POPPET KIT, MINOR KIT, MAJOR (07) - BRAKES

Артикул

Название

Примечание

Количество

1

A24877

KIT

POPPET KIT - replacement, Includes: Ref. 2 - 6

1шт.

2

129-15

NUT,#6-32

1шт.

3

A24862

WASHER - poppet

1шт.

4

A24865

POPPET - valve

1шт.

5

A24861

SEAL ASSY.

SEAL - valve

1шт.

6

A24860

SEAL ASSY.

SEAL - valve

1шт.

10

A24878

REPAIR KIT

- , Includes: Ref. 11 - 23, minor

1шт.

11

A24869

GASKET - cover, minor kit

1шт.

12

A19673

GASKET - valve body, minor kit

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - valve fitting, minor kit

1шт.

14

NSS

NOT SOLD SEPARAT

CUP - piston, minor kit

2шт.

15

A19695

SEAL

RING - cylinder seal, minor kit

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL - push rod, minor kit

1шт.

17

A19703

GASKET

- end cap, minor kit

1шт.

18

A19706

SEAL

- piston, minor kit

1шт.

19

A19707

SEAL

- slave tube, minor kit

1шт.

20

NSS

NOT SOLD SEPARAT

CUP - piston, minor kit

1шт.

21

NSS

NOT SOLD SEPARAT

RING - snap, minor kit

1шт.

22

NSS

NOT SOLD SEPARAT

CUP - piston, minor kit

1шт.

23

NSS

NOT SOLD SEPARAT

WASHER - piston rod, minor kit

1шт.

28

A24876

KIT

REPAIR KIT - major (Incl. minor kit), Includes: Ref. 29 - 48

1шт.

29

A24869

GASKET - cover, major kit

1шт.

30

129-5

NUT,#6-32

Major kit #6-32

1шт.

31

A24862

WASHER - poppet, major kit

1шт.

32

A24865

SEAL - valve, major kit

1шт.

33

A24861

SEAL ASSY.

POPPET - valve, major kit

1шт.

34

A24860

SEAL ASSY.

SEAL - valve, major kit

1шт.

35

A24872

DIAPHRAGM

ASSY. - poppet, major kit

1шт.

36

A19673

GASKET - valve body, major kit

1шт.

37

NSS

NOT SOLD SEPARAT

SEAL - valve fitting, major kit

1шт.

38

NSS

NOT SOLD SEPARAT

CUP - piston, major kit

2шт.

39

A19695

SEAL

RING - cylinder seal, major kit

1шт.

40

NSS

NOT SOLD SEPARAT

SEAL - push rod, major kit

1шт.

41

A19699

VALVE

- master cylinder, major kit

1шт.

42

A19703

GASKET

- end cap, major kit

1шт.

43

A19706

SEAL

- piston, major kit

1шт.

44

A19707

SEAL

- slave tube, major kit

1шт.

45

NSS

NOT SOLD SEPARAT

CUP - piston, major kit

1шт.

46

NSS

NOT SOLD SEPARAT

RING - snap, major kit

1шт.

47

NSS

NOT SOLD SEPARAT

CUP - piston, major kit

1шт.

48

NSS

NOT SOLD SEPARAT

WASHER - piston rod, major kit

1шт.

53

A19735

KIT

PACKING KIT - piston, Includes: Ref. 54 - 58

1шт.

54

A19689

REPAIR KIT

SEAL - piston rod, packing kit

1шт.

55

NSS

NOT SOLD SEPARAT

PACKING - piston, packing kit

1шт.

56

A19686

GASKET

FELT - piston, packing kit

1шт.

57

A19685

RING

- piston packing kit

1шт.

58

A19683

NUT - felt retainer, packing kit

1шт.

Выбрано товаров: 47
