Запчасти Case W12 (090) - HYDROVAC CYLINDER (07) - BRAKES

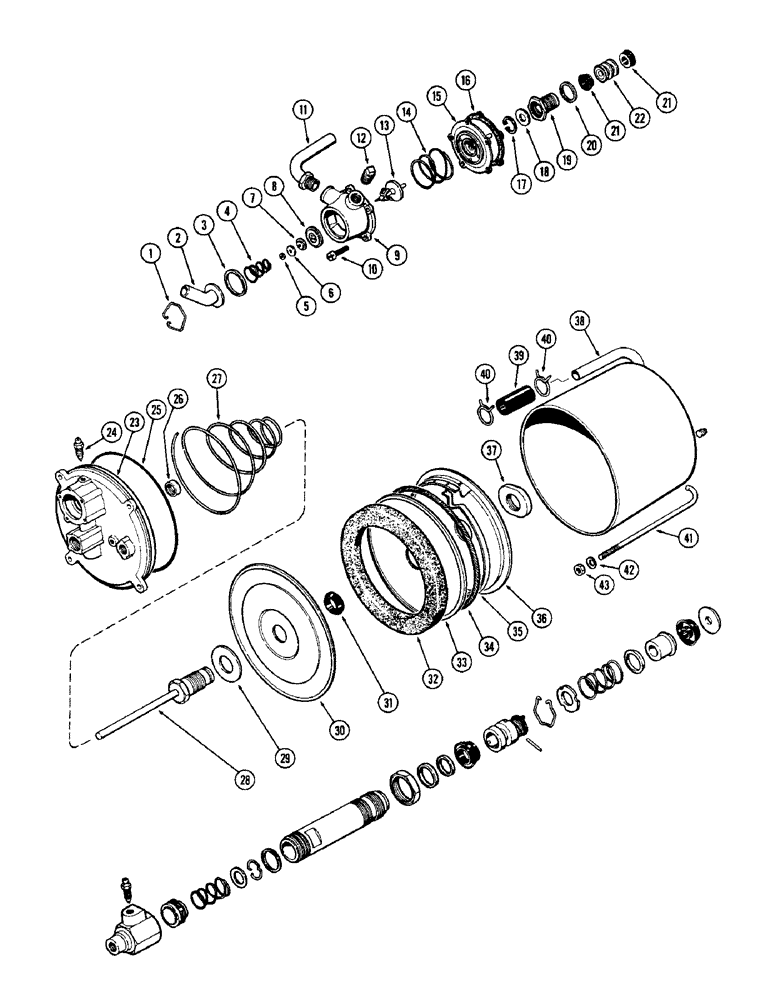

Схема запчастей Case W12 - (090) - HYDROVAC CYLINDER (07) - BRAKES

Артикул

Название

Примечание

Количество

A18554

CYLINDER

ASSY. - hydrovac, Includes: Ref. 1 - 44

1шт.

1

A24870

RING - snap, tube retaining

1шт.

2

A24866

TUBE & COVER - valve

1шт.

3

A24869

GASKET - cover

1шт.

4

A24868

SPRING - poppet

1шт.

5

129-5

NUT,#6-32

Valve poppet #6-32

1шт.

6

A24862

WASHER - poppet

1шт.

7

A24865

POPPET - valve

1шт.

8

A24861

SEAL ASSY.

SEAL - valve

1шт.

9

A24864

BODY - valve

1шт.

10

A19669

SCREW

- valve housing

5шт.

11

A24867

TUBE - valve

1шт.

12

221-1003

PLUG - pipe, 3/8" sq. hd.

1шт.

13

A24860

SEAL ASSY.

SEAL - valve

1шт.

14

A24874

SPRING - valve seat

1шт.

15

A24872

DIAPHRAGM

ASSY. - poppet

1шт.

16

A19673

GASKET - valve body

1шт.

17

A19674

X

RING - retaining

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL - valve fitting

1шт.

19

A24857

FITTING - valve

1шт.

20

A24858

WASHER - piston stop

1шт.

21

NSS

NOT SOLD SEPARAT

CUP - piston

2шт.

22

A24855

PISTON

- relay valve

1шт.

23

A24859

PLATE - end

1шт.

24

A19696

SCREW

- bleeder

1шт.

25

A19695

SEAL

RING - cylinder seal

1шт.

26

NSS

NOT SOLD SEPARAT

SEAL - push rod

1шт.

27

A24873

SPRING - piston return

1шт.

28

A24871

ROD

- push, piston

1шт.

29

A19691

WASHER

- piston plate

1шт.

30

A19690

PLATE - front piston

1шт.

31

A19689

REPAIR KIT

SEAL - piston rod

1шт.

32

NSS

NOT SOLD SEPARAT

PACKING - piston

1шт.

33

A19687

PLATE - rear piston

1шт.

34

A19686

GASKET

FELT - piston

1шт.

35

A19685

RING

- piston packing

1шт.

36

A19684

RETAINER - piston felt

1шт.

37

A19683

NUT - felt retainer

1шт.

38

A24908

HOUSING - cylinder, hydrovac

1шт.

39

A24875

HOSE - vacuum tube

1шт.

40

A24907

X

CLAMP - hose

2шт.

41

A24909

BOLT - hook

4шт.

42

92-6

LOCK WASHER,3/8"

4шт.

43

25-116

NUT,Hex, 3/8"-24, G5

- hex., 3/8" N.F.

4шт.

44

A19698

CAP - end

1шт.

Выбрано товаров: 45
