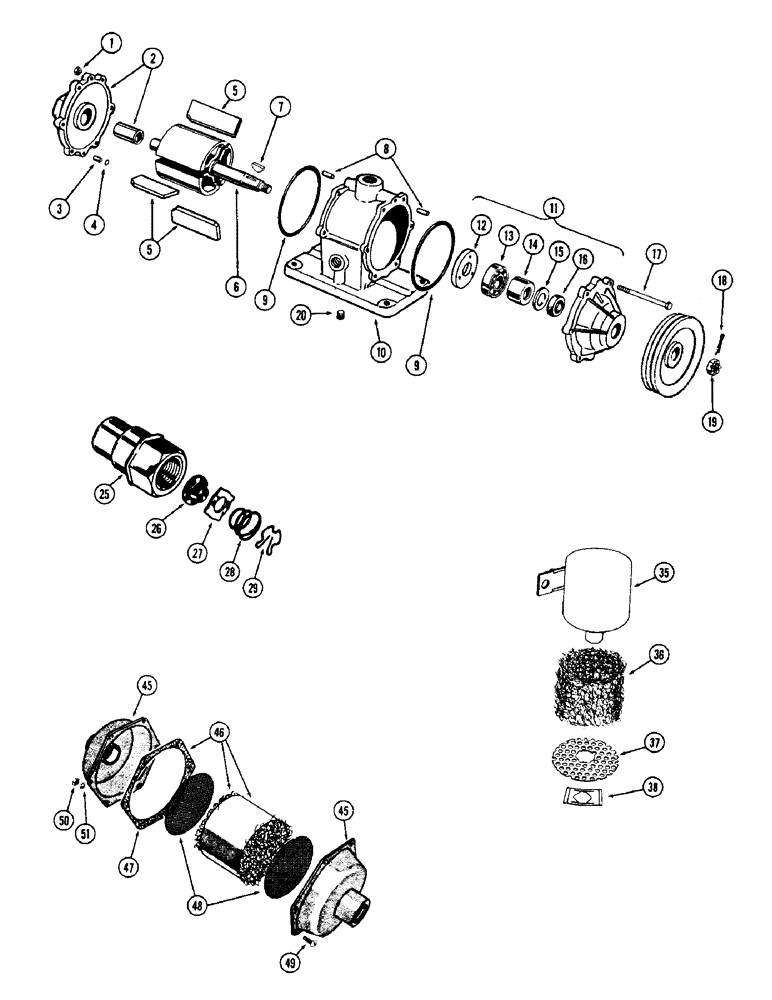

Запчасти Case W12 (088) - VACUUM PUMP, CHECK VALVE, AIR CLEANER, AIR FILTER (07) - BRAKES

A18534

PUMP

ASSY - vacuum, Includes: Ref. 1 -20

1шт.

1

25-114

NUT,1/4"-28, G5

- hex., 1/4" N.F.

6шт.

2

L30005

PLATE ASSY.

- end, (Used on late models)

1шт.

2

A19719

X

PLATE ASSY. - end (Used on early models)

1шт.

3

A19720

RETAINER - gasket (Used w/early models)

1шт.

4

A19721

GASKET

- retainer (Used w/early models)

1шт.

5

A19722

KIT

VANE KIT - rotor (Set of 3)

1шт.

6

A19723

ROTOR & BALL ASSY. - vacuum pump

1шт.

7

126-16

WOODRUFF KEY,#9, 3/16" x 3/4"

Pulley #9, 3/16" x 3/4"

1шт.

8

A19724

DOWEL

PIN - dowel, end plate locating

2шт.

9

A19725

GASKET

- end plates

2шт.

10

L30006

HOUSING

ASSY. - rotor (Used on late model)

1шт.

10

A19726

HOUSING ASSY. - rotor (Used on early models)

1шт.

11

A19732

PLATE ASSY. - end, front, Includes: Ref. 12 - 16

1шт.

12

A19727

NO LONGER SERVICED

BAFFLE - end plate

1шт.

13

A19728

BALL BEARING

BEARING - ball

1шт.

14

A19729

SEAL

SEAL - oil, rotor shaft

1шт.

15

A19730

GASKET

- oil seal

1шт.

16

A19731

FELT

WASHER - felt, end plate

1шт.

17

14-472

BOLT,Hex, 1/4" - 28 x 4-1/2", Gr 5

- thin, 1/4" x 4-1/2" N.F. hex.

6шт.

18

132-49

COTTER PIN,1/8" x 1 1/8"

Pin, Split (Cotter), 1/8" x 1 1/8"

1шт.

19

25-238

SLOTTED NUT,1/2"-20, G5, Thk

NUT - hex. castle, 1/2" N.F.

1шт.

20

221-1843

PLUG

- pipe, 3/8" hex. sckt. hd.

1шт.

A18513

LOCK VALVE

VALVE ASSY. - check valve, Includes: Ref. 25 - 29

1шт.

25

NSS

NOT SOLD SEPARAT

BODY - check valve (Order A18513)

1шт.

26

A19743

SEAL ASSY.

SEAL - poppet, check valve

1шт.

27

A19744

RETAINER

- seal, check valve

1шт.

28

A19745

SPRING

- check valve

1шт.

29

A19746

RETAINER - spring, check valve

1шт.

A18529

CLEANER ASSY. - air, hydrovac

1шт.

35

NSS

NOT SOLD SEPARAT

SHELL ASSY. - air cleaner (Order A18529)

1шт.

36

A19750

ELEMENT

FILTER - air cleaner (Hair type, 11-02 grams)

1шт.

37

A19749

PLATE ASSY.

PLATE - screening, air cleaner

1шт.

38

A19748

FASTENER - screening plate, air cleaner

1шт.

A18532

CLEANER

FILTER ASSY. - air, vacuum pump, Includes: Ref. 45 - 51

1шт.

45

NSS

NOT SOLD SEPARAT

BODY - filter (Order A18532), air filter

2шт.

46

A40055

FILTER

ELEMENT KIT - filter, air

1шт.

47

A40054

GASKET

- air filter

1шт.

48

A19752

FILTER STRAINER

SCREEN - filter element, air filter

2шт.

49

A19753

SCREW - body retainer (#6-32 x 3/8" N.C.), air filter

6шт.

50

129-640

NUT,#6-32, Brass

- hex., #6 N.C., air filter

6шт.

51

192-5

LOCK WASHER,#6

WASHER, LOCK, , Air filter #6

6шт.
