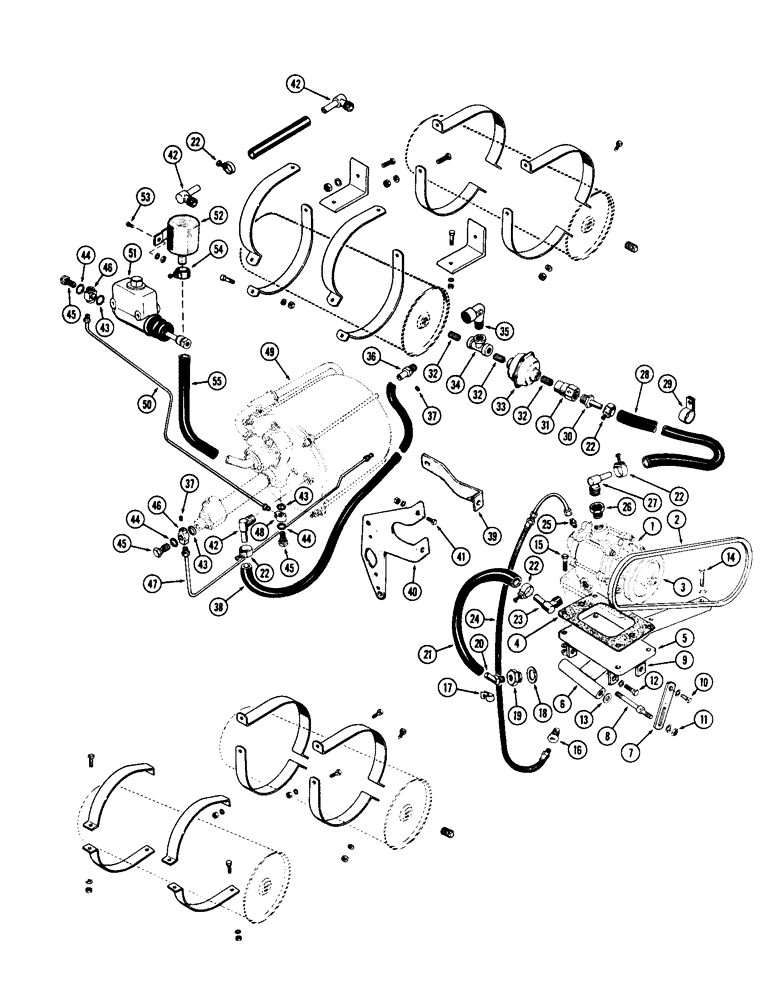

Запчасти Case W12 (084) - HYDROVAC BRAKE SYSTEM (07) - BRAKES

1

A18534

PUMP

ASSY. - vacuum (Repair, Figure 88)

1шт.

2

A18537

V-BELT,39.00" L

Pump Drive 39.00" L

1шт.

3

A18536

PULLEY

- drive, vacuum pump

1шт.

4

A18535

GASKET

- pump mounting

1шт.

5

A19580

BRACKET - hose, pump mounting

1шт.

6

A18542

BRACKET - arm, pump base bracket

1шт.

7

A18545

STRAP - adjusting, vacuum pump

1шт.

8

A18546

BOLT (SPREADER)

BOLT - stud, adjusting strap

1шт.

9

A19497

ANGLE - mounting base

1шт.

10

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

11

25-106

NUT,3/8"-16, G5

- hex., 3/8" N.C.

1шт.

12

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

13

195-33

WASHER,1/2"

- plain, 1/2"

1шт.

14

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

2шт.

15

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex. hd., 3/8" x 1-1/2" N.C.

4шт.

16

221-1053

BUSHING

- reducer, Serial Range: 1/4"-3/8"

1шт.

17

A26696

NO LONGER SERVICED

CLIP - hose retaining

1шт.

18

A27947

X

GASKET - timing plug

1шт.

19

A18550

PLUG

- timing window

1шт.

20

A18549

ELBOW - oil return hose, 45 degrees

1шт.

21

A18551

HOSE,0.50" ID x 14.00", SAE 40R3A

0.50" ID x 14.00", SAE 40R3H - Oil return

1шт.

22

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16" to 1-1/16"

8шт.

23

A27489

ELBOW UNION

ELBOW - return hose, 90 degrees

1шт.

24

A18547

HOSE

ASSY. - pump oil pressure

1шт.

REFER TO THE ILLUSTRATION PAGE.THE NUT IS NOT PART OF HOSE ASSY, ORDER, NUT 222-112. THE SLEEVE USED BETWEEN IT IS 222-102.

1шт.

25

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

CONNECTOR - 1/4" tube x 1/4" P.T.

1шт.

26

221-1056

BUSHING

- reducer, Serial Range: 1/2"-3/8"

1шт.

27

A18509

FITTING

ELBOW - nipple, reservoir hose 45 degrees

1шт.

28

A18558

HOSE - vacuum, Serial Range: pump-reservoir

1шт.

29

A27256

CLAMP

CLIP - hose retaining

4шт.

30

A18512

FLOAT

NIPPLE - hose

1шт.

31

A18513

LOCK VALVE

VALVE ASSY. - check (Repairs, Figure. 88)

1шт.

32

221-1185

FITTING

NIPPLE - close straight, 1/2" P.T. x 1-1/8"

3шт.

33

A18532

CLEANER

FILTER ASSY. - air (Repairs, figure 88)

1шт.

34

221-1424

TEE,Pipe, 1/2" NPT

- pipe, 1/2" P.T.

1шт.

35

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

- street, 90 degrees x 1/8" P.T.

1шт.

36

A18515

SUN VISOR

NIPPLE - hose, Serial Range: reservoir-hydrovac

1шт.

37

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, 1/8" sq. hd.

2шт.

38

A18518

HOSE -, Serial Range: reservoir-hydrovac

1шт.

39

A18522

BRACKET - support,. hydrovac mtg.

1шт.

40

A18521

BRACKET - mounting, hydrovac

1шт.

41

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

42

A18519

ELBOW - hose, 90 degrees

3шт.

43

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- hydraulic block (Large copper)

3шт.

44

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - hydraulic fitting (Small copper)

3шт.

45

A12864

BOLT

- hydraulic connection

3шт.

46

A12863

SUN VISOR

BLOCK - hydraulic connection

2шт.

47

A18556

TUBE ASSY. - hydrovac to brake line tee

1шт.

48

A18531

FITTING

BLOCK - hydraulic connection

1шт.

49

A18554

CYLINDER

ASSY. - hydrovac (Repairs, Figure 92)

1шт.

50

L10726

TUBE ASSY. - hydrovac to master cylinder

1шт.

51

A18557

CYLINDER

ASSY. - master, brake (Repairs, figure82)

1шт.

52

A18529

CLEANER ASSY. - air, hydrovac (Repairs, figure 88)

1шт.

53

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

54

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4"

2шт.

55

A18559

HOSE

- air, Serial Range: cleaner-hydrovac

1шт.

56

L10727

HOSE -, Serial Range: reservoir-reservoir

1шт.

57

A18514

TANK

- reservoir, air

2шт.

58

221-1014

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, 1/2" square hd.

1шт.

59

L10740

ANGLE - reservoir tank mounting (Used on later models)

2шт.

60

A19327

SUPPORT

STRAP - reservoir tank retaining (Late production)

6шт.

61

A19326

SUPPORT

STRAP - reservoir tank retaining (Used on late production)

2шт.

62

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- hex. hd., 3/8 x 3" N.C.

2шт.

63

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

64

A19326

SUPPORT

STRAP - upper reservoir mounting (Used on early production)

2шт.

65

A19327

SUPPORT

STRAP - lower reservoir mounting (Used on early production)

2шт.

66

A18516

STRAP - upper reservoir mounting (Used on early production)

2шт.

67

A18517

STRAP - lower reservoir mounting (Used on early production)

2шт.

68

75-440

SCREW

- mach., 1/4 x 2-1/2" N.C. rd. hd.

2шт.

69

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

70

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

54

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4"

2шт.

55

A18559

HOSE

- air, Serial Range: cleaner-hydrovac

1шт.
