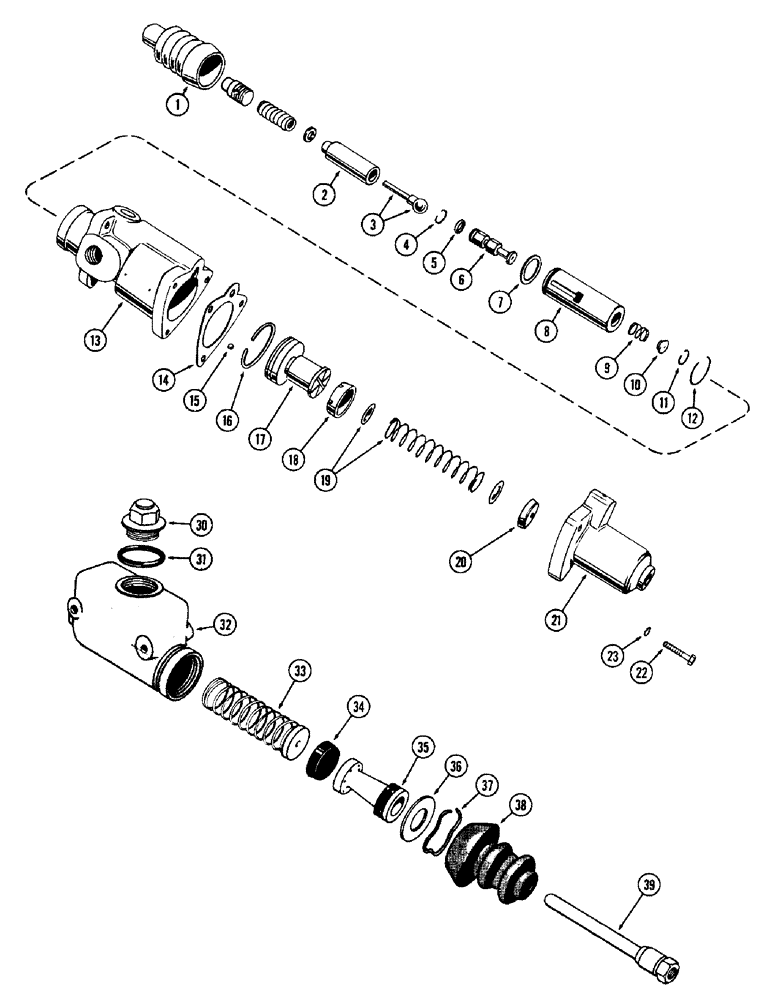

Запчасти Case W12 (082) - HYDRAULIC BRAKE CYLINDER, FIRST PRODUCTION, HYDROVAC BRAKES (07) - BRAKES

A14083NS

CYLINDER ASSY. - hydraulic brake (Order L10749), Includes: Ref. 1 - 22

1шт.

1

A15122

BOOT - dust (Rubber)

1шт.

2

A16621

REGULATOR ASSY. - pressure

1шт.

3

A15107

ROD & BALL - brake regulating

1шт.

4

A15114

RING

- ball retaining

1шт.

5

A15117

PACKING

SEAL - spool

1шт.

6

NSS

NOT SOLD SEPARAT

SPOOL - cylinder

1шт.

7

A15116

PACKING

SEAL - spool sleeve

1шт.

8

NSS

NOT SOLD SEPARAT

SLEEVE - spool

1шт.

9

A15120

SPRING - spool return

1шт.

10

A15109

PLATE - adjusting, orifice

1шт.

11

A15110

SNAP RING,0.812", Int, #81

RING - snap, , orifice plate 0.812", Int, #81

1шт.

12

A15119

RING - retaining, spool

1шт.

13

NSS

NOT SOLD SEPARAT

BODY - brake cylinder (Order L10749)

1шт.

14

A15123

GASKET

- cyl., Serial Range: cap-body

1шт.

15

211-4

BALL

- 5/32" dia. steel, grade 3

1шт.

16

A15115

RING - piston

1шт.

17

A15106

PISTON - cylinder

1шт.

18

A15125

CUP ASSY.

CUP - primary

1шт.

19

A15113

SPRING & RETAINER - piston return

1шт.

20

A15108

CHECK VALVE

VALVE - check

1шт.

21

A15112

CAP ASSY. - cylinder

1шт.

22

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex. hd., 5/16" x 1-1/4" N.C.

3шт.

23

92-5

LOCK WASHER,5/16"

3шт.

A16649

SEAL

KIT - seal, cylinder (Incl. ref. 1, 4, 5, 7, 14, 18 & 20)

1шт.

A18557

CYLINDER

ASSY. - master brake, hydrovac, Includes: Ref. 30 - 39

1шт.

30

A19918

CAP

PLUG - filler, hydrovac brakes

1шт.

31

A19755

GASKET

- filler plug, hydrovac brakes

1шт.

32

NSS

NOT SOLD SEPARAT

BODY - cylinder (Order A18557), hydrovac brakes

1шт.

33

A19803

SEAL

SPRING - piston, hydrovac brakes

1шт.

34

A19807

CUPEL

CUP - primary, hydrovac brakes

1шт.

35

NSS

NOT SOLD SEPARAT

PISTON ASSY. - cylinder (Order A19919), hydrovac brakes

1шт.

36

A19759

PLATE

- stop, hydrovac brakes

1шт.

37

A19760

RING

LOCKWIRE - stop plate, hydrovac brakes

1шт.

38

A19916

BOOT

- dust, piston rod, hydrovac brakes

1шт.

39

A25256

ROD - push, cylinder, hydrovac brakes

1шт.

A19919

KIT

- repair (Incl. ref. 34, 35, 37 & 38), hydrovac brakes

1шт.
