Запчасти Case W12 (080) - HYDRAULIC BRAKE CYLINDER, FIRST USED LOADER SER. NO. 9803813 (07) - BRAKES

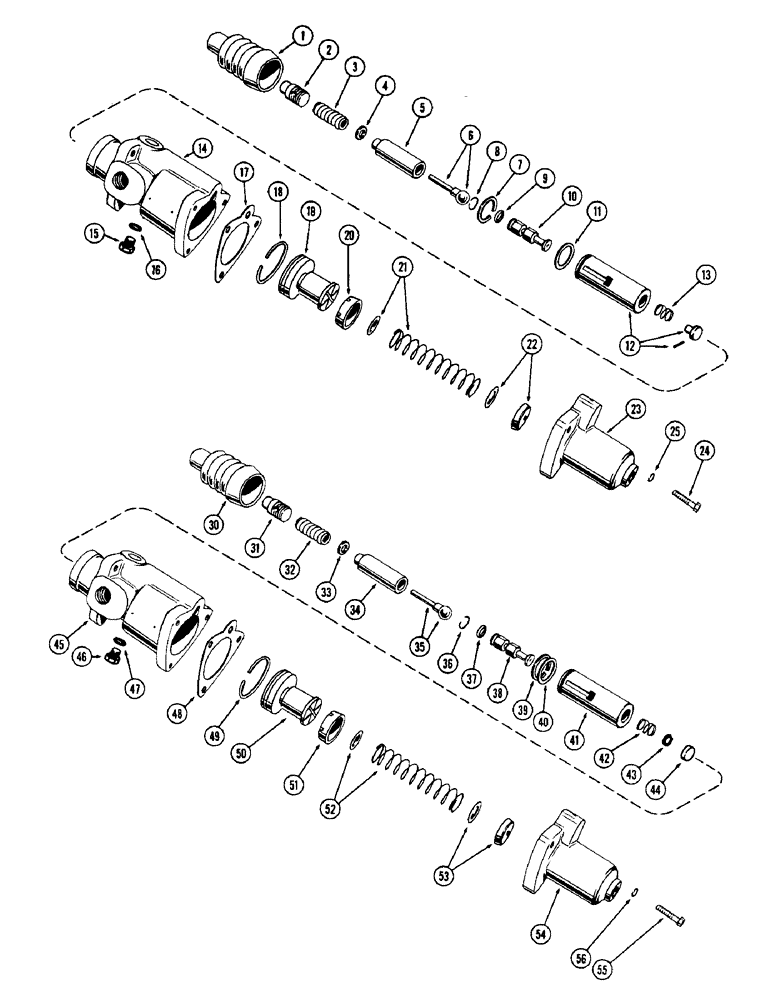

Схема запчастей Case W12 - (080) - HYDRAULIC BRAKE CYLINDER, FIRST USED LOADER SER. NO. 9803813 (07) - BRAKES

Артикул

Название

Примечание

Количество

L10749

BRAKE CYLINDER

VALVE & CYLINDER ASSY., hydraulic brake, Includes: Ref. 1 - 25

1шт.

1

A15122

BOOT - dust, push rod

1шт.

A16621

REPAIR KIT - valve adjustment, Includes: Ref. 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

PLUG - adjustment

1шт.

3

NSS

NOT SOLD SEPARAT

SPRING - clevis return

1шт.

4

NSS

NOT SOLD SEPARAT

WASHER - valve spring

1шт.

5

NSS

NOT SOLD SEPARAT

LINK - valve spring

1шт.

6

A15107

ROD ASSY. - clevis

1шт.

7

A15119

RING - snap, sleeve retaining

1шт.

8

A15114

RING

- ball retaining

1шт.

9

A15117

PACKING

RING - packing, vee block

1шт.

10

NSS

NOT SOLD SEPARAT

SPOOL - vee block

1шт.

11

A15116

PACKING

RING - packing, power sleeve

1шт.

12

NSS

NOT SOLD SEPARAT

SLEEVE ASSY. - cylinder spool

1шт.

13

A15120

SPRING - spool return

1шт.

14

NSS

NOT SOLD SEPARAT

BODY - valve (Order L10749)

1шт.

15

L30359

BOLT - sleeve stop

1шт.

17

A15123

GASKET

-, Serial Range: body-cap

1шт.

18

A15115

RING - piston

1шт.

19

A15106

PISTON ASSY. - master

1шт.

20

A15125

CUP ASSY.

CUP - primary

1шт.

21

L30358

SPRING & RETAINER - piston return

1шт.

22

A15108

CHECK VALVE

VALVE ASSY. - check

1шт.

23

A15112

CAP ASSY. - cylinder

1шт.

24

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex. hd., 5/16" x 1-1/4" N.C.

3шт.

25

92-5

LOCK WASHER,5/16"

3шт.

A18341

VALVE & CYLINDER ASSY., hydraulic brake (Order L10749), Includes: Ref. 30 - 56

1шт.

30

A15122

BOOT - dust, adjusting plug, Serial Range: -9803813

1шт.

A16621

REPAIR KIT - valve adjustment, Includes: Ref. 31 - 34, Serial Range: -9803813

1шт.

31

NSS

NOT SOLD SEPARAT

PLUG - adjusting valve, Serial Range: -9803813

1шт.

32

NSS

NOT SOLD SEPARAT

SPRING - clevis return, Serial Range: -9803813

1шт.

16

218-5001

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

2-1, .239" ID x .064" Thk, sleeve stop, Serial Range: -9803813

1шт.

33

NSS

NOT SOLD SEPARAT

WASHER - clevis spring, Serial Range: -9803813

1шт.

34

NSS

NOT SOLD SEPARAT

LINK - adj. plug & clevis spring, Serial Range: -9803813

1шт.

35

A15107

ROD ASSY. - clevis, Serial Range: -9803813

1шт.

36

A15114

RING

- ball retaining, Serial Range: -9803813

1шт.

37

A15117

PACKING

RING - packing, spool, Serial Range: -9803813

1шт.

38

NSS

NOT SOLD SEPARAT

SPOOL - valve, Serial Range: -9803813

1шт.

39

A15119

RING - snap, sleeve, Serial Range: -9803813

1шт.

40

A15116

PACKING

RING - packing, sleeve, Serial Range: -9803813

1шт.

41

NSS

NOT SOLD SEPARAT

SLEEVE - spool, Serial Range: -9803813

1шт.

42

A15120

SPRING - spool, Serial Range: -9803813

1шт.

43

A15110

SNAP RING,0.812", Int, #81

Ring, Snap, , orifice plug 0.812", Int, #81, Serial Range: -9803813

1шт.

44

L30426

PLUG - orifice, power adjust, Serial Range: -9803813

1шт.

45

NSS

NOT SOLD SEPARAT

BODY - brake valve (Order L10749), Serial Range: -9803813

1шт.

46

L30359

BOLT - sleeve stop, Serial Range: -9803813

1шт.

47

218-5001

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

2-1, .239" ID x .064" Thk, stop bolt, Serial Range: -9803813

1шт.

48

A15123

GASKET

- body to cap, Serial Range: -9803813

1шт.

49

A15115

RING - piston, Serial Range: -9803813

1шт.

50

A15106

PISTON ASSY - master, Serial Range: -9803813

1шт.

51

A15125

CUP ASSY.

CUP - primary, Serial Range: -9803813

1шт.

52

L30358

SPRING & RETAINER - piston return, Serial Range: -9803813

1шт.

53

A15108

CHECK VALVE

VALVE ASSY. - check, Serial Range: -9803813

1шт.

54

A15112

CAP ASSY. - brake valve, Serial Range: -9803813

1шт.

55

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex. hd., 5/16" x 1-1/4" N.C., Serial Range: -9803813

3шт.

56

92-5

LOCK WASHER,5/16"

, Serial Range: -9803813

3шт.

Выбрано товаров: 56
