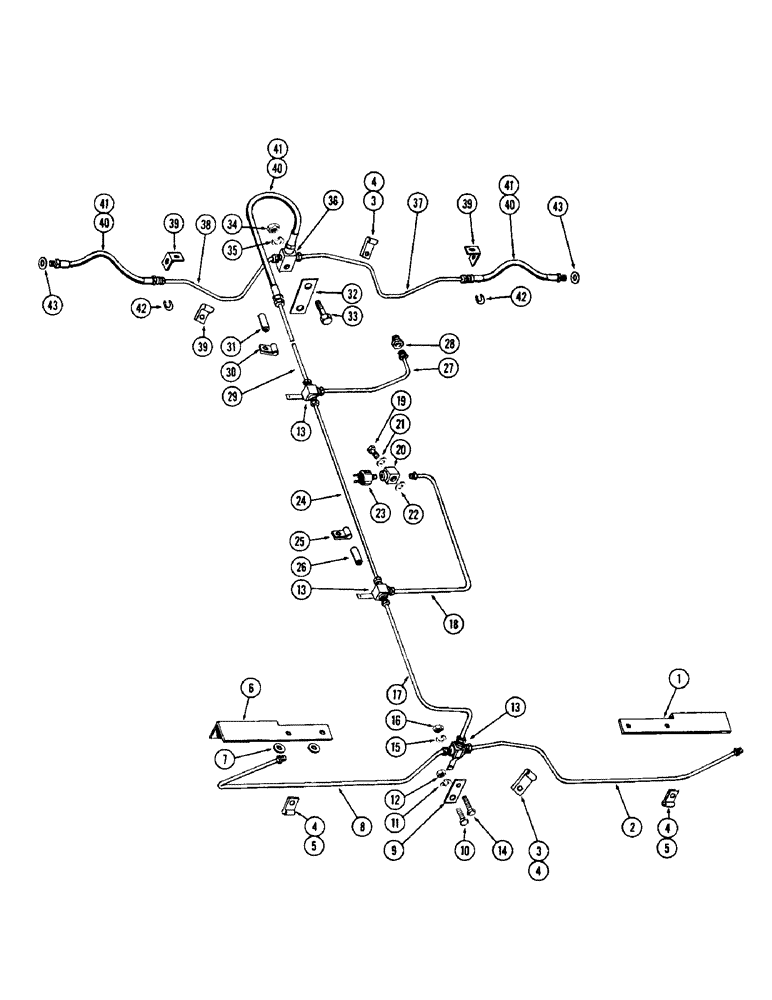

Запчасти Case W12 (078) - HYDRAULIC AND HYDROVAC BRAKE LINES (07) - BRAKES

1

A15511

GUARD - brake line L.H. front

1шт.

2

A14115

TUBE ASSY. - frt. axle tee to L.H. wheel cyl.

1шт.

3

A14118

CLIP - frt. & rear L.H. tube

2шт.

4

A12458

SLEEVE

LOOM - tube clip

4шт.

5

A7922

CLIP

- frt. L.H. & R.H. brake tube

2шт.

6

A15510

GUARD - front R.H. brake tube

1шт.

7

A15508

CLAMP

SPACER - frt. L.H. & R.H. tube guard

4шт.

8

A14113

TUBE ASSY. - front R.H. brake

1шт.

9

A14114

STRAP - front brake tube tee

1шт.

10

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

1шт.

11

92-5

LOCK WASHER,5/16"

1шт.

12

25-115

NUT,5/16"-24, G5

- hex, 5/16" NF

1шт.

13

A12451

FITTING

TEE - front axle and channel brake line

3шт.

14

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

3шт.

15

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

16

25-104

NUT,1/4"-20, G5

3шт.

17

A14112

TUBE ASSY. - frt. axle tee to frt. channel tee

1шт.

18

A14111

TUBE ASSY. - front channel tee to brake cyl. (Use w/hydraulic brakes only)

1шт.

19

A12864

BOLT

- brake fitting

1шт.

20

A12863

SUN VISOR

BLOCK - fitting, brake cylinder

1шт.

21

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

- small, fitting bolt (Copper)

1шт.

22

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

WASHER - large, fitting bolt (Copper)

1шт.

23

A12491

SWITCH

ASSY - brake, stop light

1шт.

24

A14119

TUBE ASSY. - brake, frt. to rear channel tee

1шт.

25

A12453

CLIP - brake, Serial Range: tube-channel

1шт.

26

A12458

SLEEVE

LOOM - tube clip

1шт.

27

A16777

TUBE ASSY. - rear channel tee to clutch valve

1шт.

28

222-1012

HYD CONNECTOR,7/16"-24 Inv Fl x 1/8" NPT

CONNECTOR - 1/4" x 1/8" inverted flare

1шт.

29

A14121

TUBE ASSY. - rear channel tee to rear tee hose

1шт.

30

A12453

CLIP - rear channel tube

1шт.

31

A12458

SLEEVE

LOOM - channel tube clip

1шт.

32

A14122

STRAP - rear axle tee mounting

1шт.

33

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

- hex. hd., 1/2" x 1-1/2" N.F.

1шт.

34

25-118

NUT,1/2"-20, G5

- hex., 1/2" N.F.

1шт.

35

92-8

LOCK WASHER,1/2"

1шт.

36

A13100

TEE

- rear axle brake line

1шт.

37

A14124

TUBE ASSY. - rear axle L.H. brake

1шт.

38

A14123

TUBE ASSY. - rear axle R.H. brake

1шт.

39

A14125

BRACKET - rear brake hose and tube

2шт.

40

A56478

HYDRAULIC HOSE

HOSE - rear axle brake (Late production)

3шт.

41

A12457

X

HOSE - rear axle brake (Early production)

3шт.

42

A12628

WASHER

"C" - rear brake hose

2шт.

43

A12643

WASHER

- rear hose to wheel cyl. (Copper)

2шт.
