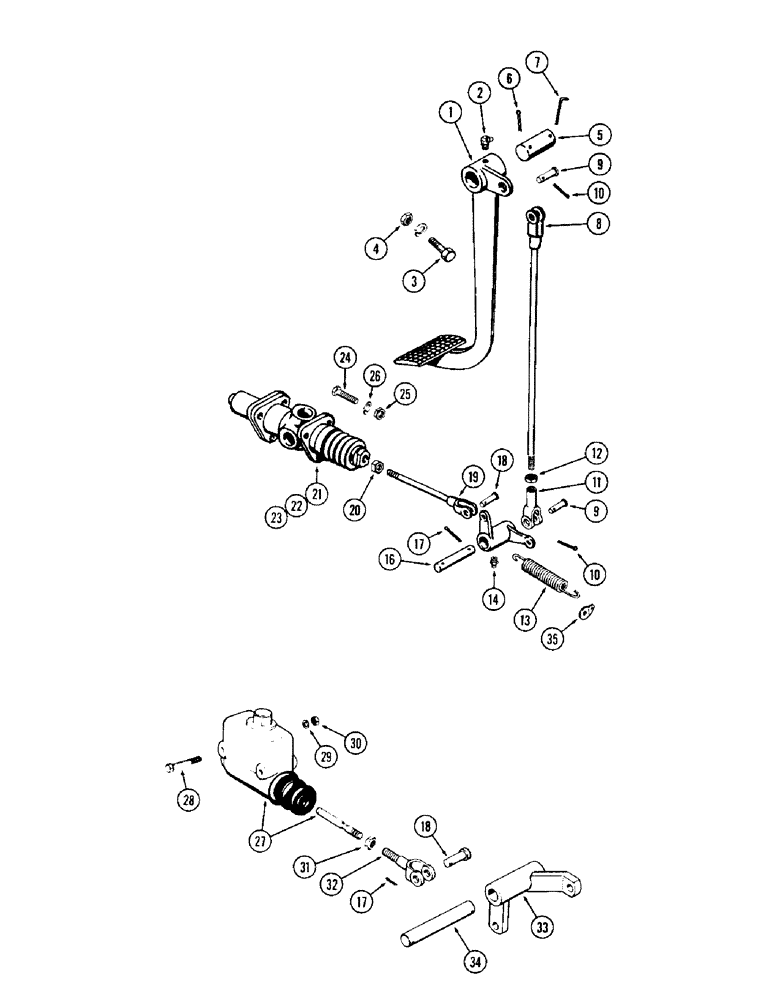

Запчасти Case W12 (076) - BRAKE PEDAL AND CYLINDER (07) - BRAKES

1

A14084

PEDAL - brake

1шт.

2

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

3

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

- hex. hd., 3/8" x 1-1/4" N.F. (Pedal adj.)

1шт.

4

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex. jam, 3/8" N.F.

1шт.

5

A12437

PIN - pedal pivot

1шт.

6

132-95

COTTER PIN,3/16" x 1 1/2"

Pin, Split (Cotter), 3/16" x 1 1/2"

1шт.

7

A27275

PIN - lock, pedal pivot pin

1шт.

8

A15786

LINK -, Serial Range: pedal-bellcrank

1шт.

9

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis, 1/2"

2шт.

10

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

11

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

YOKE - adjusting, 1/2" light

1шт.

12

25-118

NUT,1/2"-20, G5

- hex., 1/2" N.F.

1шт.

13

A27473

SPRING

- brake pedal return

1шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube, 1/8" straight

1шт.

15

A14086

BELL CRANK - pedal and cylinder link (Used w/hydraulic brakes)

1шт.

16

A14087

PIN - pivot, bellcrank (Use w/ref. 15)

1шт.

17

132-93

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

2шт.

18

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis, 1/2"

1шт.

19

A14415

LINK - brake valve to bellcrank (Used w/hydraulic brakes)

1шт.

20

25-118

NUT,1/2"-20, G5

- hex., 1/2" N.F.

1шт.

21

L10749

BRAKE CYLINDER

VALVE ASSY. - hydraulic power brake (Repairs, figure 80), Start Serial: 9803813

1шт.

22

A18341

VALVE & CYLINDER ASSY. - hydraulic brakes (order L10249) (Repairs, figure 80), Serial Range: -9803813

1шт.

23

A14083NS

VALVE & CYLINDER ASSY. - hydraulic brakes (order L10749) (Repairs, figure 82), Start Serial: A18341

1шт.

24

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

- hex., hd., 5/16" x 1-1/2" N.F.

3шт.

25

25-115

NUT,5/16"-24, G5

- hex, 5/16" NF

3шт.

26

92-5

LOCK WASHER,5/16"

3шт.

27

A18557

CYLINDER

ASSY. - master (Used w/hydrovac brakes) (Repairs, figure 82)

1шт.

28

13-756

BOLT,Hex, 7/16" - 14 x 3-1/2", Gr 5

2шт.

29

92-7

LOCK WASHER,7/16"

2шт.

30

25-107

NUT,7/16"-14, G5

- hex., 7/16" N.C.

2шт.

31

25-157

JAM NUT,Jam, 7/16"-20, G5

- hex. jam., 7/16" N.F.

1шт.

32

L10725

LINK - master, Serial Range: cylinder-bellcrank

1шт.

33

L10720

BELLCRANK - pedal & cylinder link

1шт.

34

L10724

PIN - pivot, bellcrank

1шт.

35

A26953

CLIP

- return spring

1шт.
