Запчасти Case W12 (144) - DIFFERENTIAL (06) - POWER TRAIN

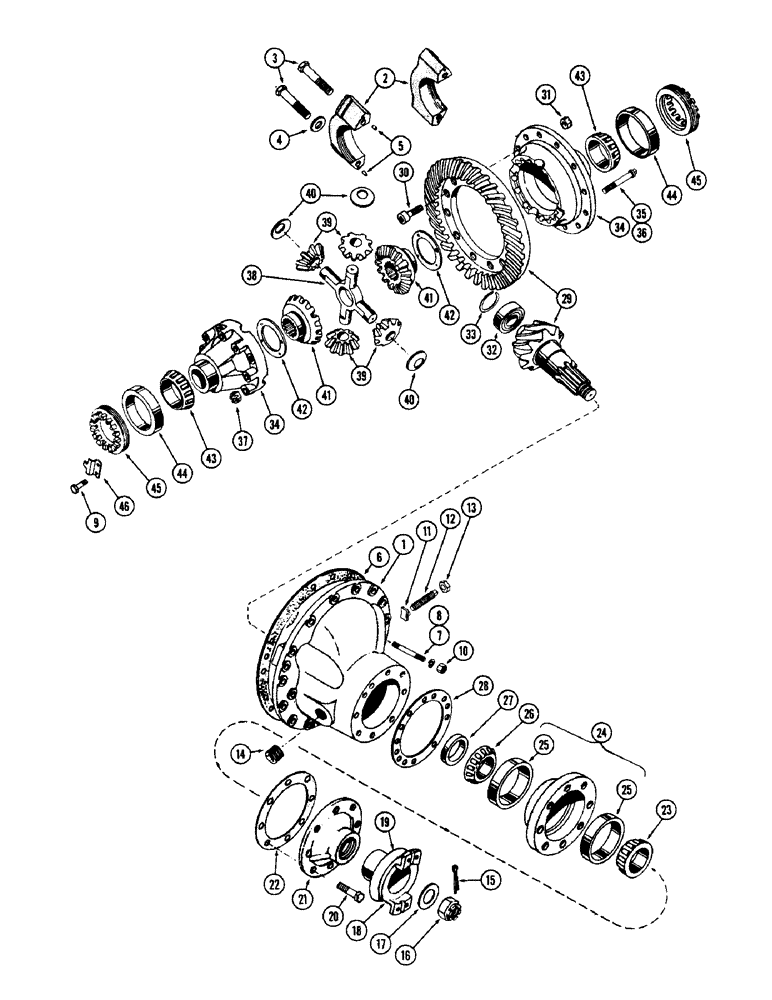

Схема запчастей Case W12 - (144) - DIFFERENTIAL (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

A14200

AXLE ASSY. - front rigid, complete, Includes: Ref. 1 - 46

1шт.

A14199

AXLE ASSY. - rear steering, complete, Includes: Ref. 1 - 46

1шт.

1

A15466

CARRIER ASSY. - differential, Includes: Ref. 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

CAP - differential bearing (Order A15466)

2шт.

3

A16781

SCREW,7/8" - 9 x 5 1/2", Gr 8

BOLT - bearing cap

4шт.

4

A16782

WASHER

- bearing cap bolt

4шт.

5

A15443

DOWEL

PIN - dowel, bearing cap locate

4шт.

6

A15460

GASKET

- carrier to axle housing

1шт.

7

A15425

STUD - carrier to axle housing (Short)

10шт.

8

A15426

STUD - carrier to axle housing (Long)

4шт.

9

A12939

BOLT - adjusting ring lock

2шт.

10

25-1110

NUT,5/8"-18, G5

- hex., 5/8" N.F.

14шт.

11

A12948

BLOCK - thrust, drive gear

1шт.

12

A15427

X

SCREW - thrust block

1шт.

13

A15428

NUT

- thrust block screw

1шт.

14

221-15

PLUG,Sq Hd, 3/4"-14

- pipe, 3/4" sq. hd.

1шт.

15

132-58

COTTER PIN

PIN - cotter, 1/8 x 2-1/4"

1шт.

16

A15431

LOCK NUT

NUT - companion yoke

1шт.

17

A15441

WASHER

- companion yoke nut

1шт.

18

A15472

YOKE - companion

1шт.

19

A15464

SLINGER

- oil, companion yoke

1шт.

20

113-404

CAPSCREW

BOLT - hex. hd., 1/2 x 1-1/2" N.C. (Grade 8)

8шт.

21

A15470

COVER

ASSY. - pinion bearing

1шт.

22

A15461

GASKET

- pinion brg. cover

1шт.

23

A15435

ROLLER BEARING,2.125" ID x 1.3085"

BEARING - cone, pinion outer

1шт.

24

A15468

CAGE

ASSY. - pinion bearing, Includes: Ref. 25

1шт.

25

A15437

BEARING, CUP,63.525 mm ID x 140.055 mm OD x 23.52, 36.71 mm

CUP - cone bearing, pinion (Inner & outer)

2шт.

26

A15436

ROLLER BEARING,2.25" ID x 1.3085"

BEARING - cone, pinion inner

1шт.

27

A15448

SPACER

- pinion bearing (.220")

1шт.

27

A15449

SPACER

- pinion bearing (.221")

1шт.

27

A15450

SPACER

- pinion bearing (.222")

1шт.

27

A15451

SPACER

- pinion bearing (.223")

1шт.

27

A15452

SPACER

- pinion bearing (.224")

1шт.

27

A15453

SPACER

- pinion bearing (.225")

1шт.

27

A15454

SPACER

- pinion bearing (.231")

1шт.

27

A15455

SPACER

- pinion bearing (.237")

1шт.

27

A15456

SPACER

- pinion bearing (.243")

1шт.

27

A15457

SPACER

- pinion bearing (.249")

1шт.

27

A15458

SPACER - pinion bearing (.255")

1шт.

28

A15445

SHIM

- pinion bearing cage (.005")

1шт.

28

A15446

SHIM

- pinion bearing cage (.010")

1шт.

28

A15447

X

SHIM - pinion bearing cage (.020")

1шт.

28

A15459

SHIM

- pinion bearing cage (.003")

1шт.

29

A15432

PINION SHAFT & RING GEAR - diff. (Matched set)

1шт.

30

A16438

BOLT

- ring gear mounting

12шт.

31

129-283

NUT

- high slotted hex., 5/8" N.F.

12шт.

32

A15438

BALL BEARING,1.378" ID x 3.1436" OD x 0.8868"

BEARING - rear, drive pinion

1шт.

33

A15442

LOCK

RING - lock, rear bearing

1шт.

34

A15469

DIFFERENTIAL ASSY

CAGE ASSY. - differential (Matched halves)

1шт.

35

A15429

BOLT

- differential case halves (1/2" N.F. long)

8шт.

36

A15430

BOLT

- differential case halves (1/2" N.F. short)

4шт.

37

129-541

X

NUT - high slotted hex., 1/2" N.F.

12шт.

38

A15471

U-JOINT SPIDER

SPIDER - ring gear pinion

1шт.

39

A15462

GEAR

PINION - differential

4шт.

40

A15440

WASHER

- thrust, pinion

4шт.

41

A15463

GEAR

- differential side

2шт.

42

A15439

WASHER

- side gear

2шт.

43

A27024

ROLLER BEARING,3.25" ID x 1.3125"

CONE - bearing, differential case

2шт.

44

A15434

CUP

- bearing, differential case

2шт.

45

A15465

RING

- adjusting, case bearing

2шт.

46

A13196

LOCK - bearing adjusting ring

2шт.

Выбрано товаров: 61
