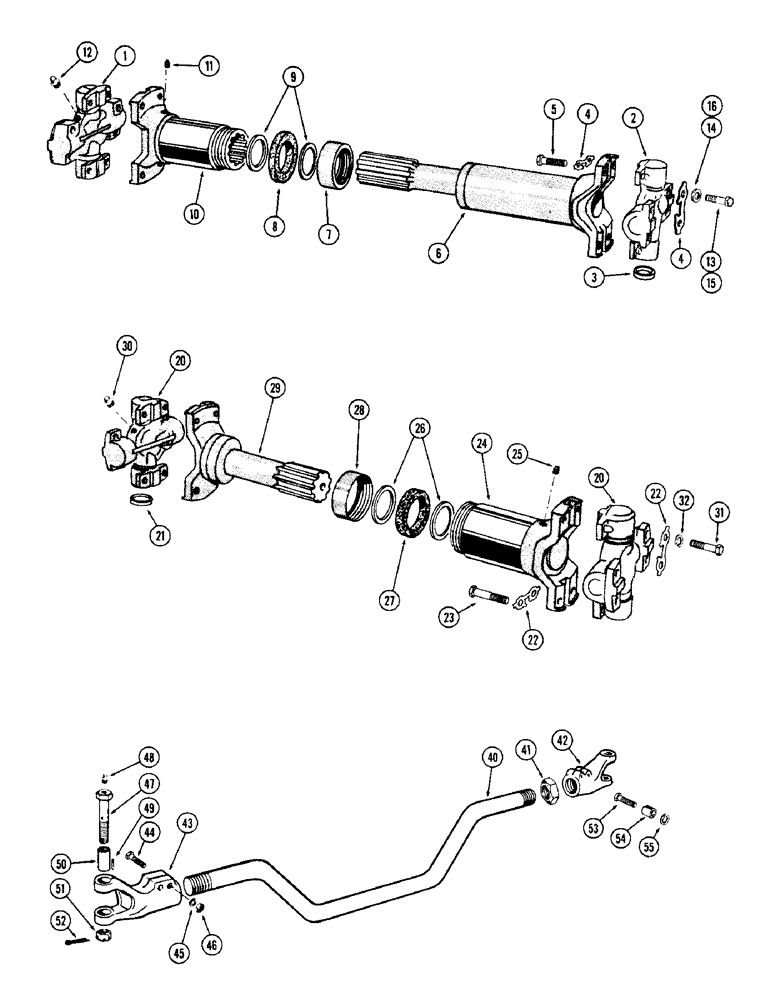

Запчасти Case W12 (142) - FRONT AXLE DRIVE SHAFT (06) - POWER TRAIN

A12004

SHAFT ASSY. - drive, front axle, Includes: Ref. 1 - 12

1шт.

1

A12878

KIT

SPIDER KIT - slip yoke end, Includes: Ref. 3 - 5

1шт.

2

A12877

KIT

SPIDER KIT - tube yoke end, Includes: Ref. 3 - 5

1шт.

3

A12871

WASHER - cork, universal joint

4шт.

4

A12869

LARGE PLATE

PLATE - lock, universal

4шт.

5

A12870

BOLT,Hex, 7/16" - 20 x 1 1/16"

SCREW - cap, joint to shaft

8шт.

6

A12872

TUBE ASSY. - drive shaft

1шт.

7

A12867

CAP

RETAINER - slip yoke felt

1шт.

8

A12873

SEAL

WASHER - felt, slip yoke

1шт.

9

A12868

WASHER

- slip yoke retainer

2шт.

10

A12874

YOKE

- slip, drive shaft

1шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube, 1/8" P.T. x 21/32" straight

1шт.

12

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

2шт.

13

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

- hex. hd., 1/2 x 2-1/2" N.F. (To transmission)

4шт.

14

92-8

LOCK WASHER,1/2"

4шт.

15

14-720

BOLT,Hex, 7/16" - 20 x 1-1/4", Gr 5, Full Thd

- hex. hd., 7/16 x 1-1/4" N.F. (To axle)

4шт.

16

92-7

LOCK WASHER,7/16"

4шт.

A14198

SHAFT ASSY. - drive, rear axle, Includes: Ref. 20 - 30

1шт.

20

A12877

KIT

SPIDER KIT - universal joint, rear axle drive shaft, Includes: Ref. 21 - 23

2шт.

21

A12871

WASHER - cork, spider bearings, rear axle drive shaft

8шт.

22

A12869

LARGE PLATE

PLATE - lock, universal, rear axle drive shaft

4шт.

23

A12870

BOLT,Hex, 7/16" - 20 x 1 1/16"

SCREW - cap, universal joint, rear axle drive shaft

8шт.

24

A12874

YOKE

- slip, drive shaft, rear axle drive shaft

1шт.

25

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube, 1/8" P.T. x 21/32" straight, rear axle drive shaft

1шт.

26

A12868

WASHER

- felt retainer, rear axle drive shaft

2шт.

27

A12873

SEAL

WASHER - felt, slip yoke, rear axle drive shaft

1шт.

28

A12867

CAP

RETAINER - slip yoke end washer, rear axle drive shaft

1шт.

29

A15410

TUBE ASSY. - drive shaft, rear axle

1шт.

30

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, Rear axle drive shaft 1/4"-28 NPT x .54" lg

2шт.

31

14-720

BOLT,Hex, 7/16" - 20 x 1-1/4", Gr 5, Full Thd

- hex. hd., 7/16 x 1-1/4" N.F., rear axle drive shaft

8шт.

32

92-7

LOCK WASHER,7/16"

rear axle drive shaft 7/16"

8шт.

40

A15416

ROD - tie, steering axle, tie rod

1шт.

41

A13115

LOCK NUT

NUT - lock, R.H. rod yoke, tie rod

1шт.

42

A13004

YOKE

- tie rod R.H., tie rod

1шт.

43

A13005

YOKE

- tie rod L.H.

1шт.

44

25282R1

BOLT,Hex, 1/2" - 20 x 2 3/4", Gr 8

- hex. hd., 1/2 x 2-3/4" N.F., tie rod

4шт.

45

92-8

LOCK WASHER,1/2"

tie rod 1/2"

4шт.

46

25-118

NUT,1/2"-20, G5

- hex., 1/2" N.F., tie rod

4шт.

47

A13107

BOLT

- tie rod yoke, L.H. & R.H., tie rod

4шт.

48

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube, 1/8" P.T. straight, tie rod

2шт.

49

A13111

AXLE PIN

PIN - lock, tie rod yoke, tie rod

2шт.

50

A15081

BUSHING,22.28mm ID x 28.66mm OD x 56.36mm L

- tie rod yoke, tie rod

2шт.

51

A13110

NUT

- tie rod yoke bolt, tie rod

2шт.

52

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), , Tie rod, Includes: Ref. 53 1/8" x 1 1/2"

2шт.

53

A15078

SCREW - stop, steering axle, tie rod

2шт.

54

A15037

SPACER

- stop screw, tie rod

2шт.

55

A15043

SHIM

- stop screw (.010"), tie rod

1шт.
