Запчасти Case W12 (140) - POWER STEERING CYLINDER (06) - POWER TRAIN

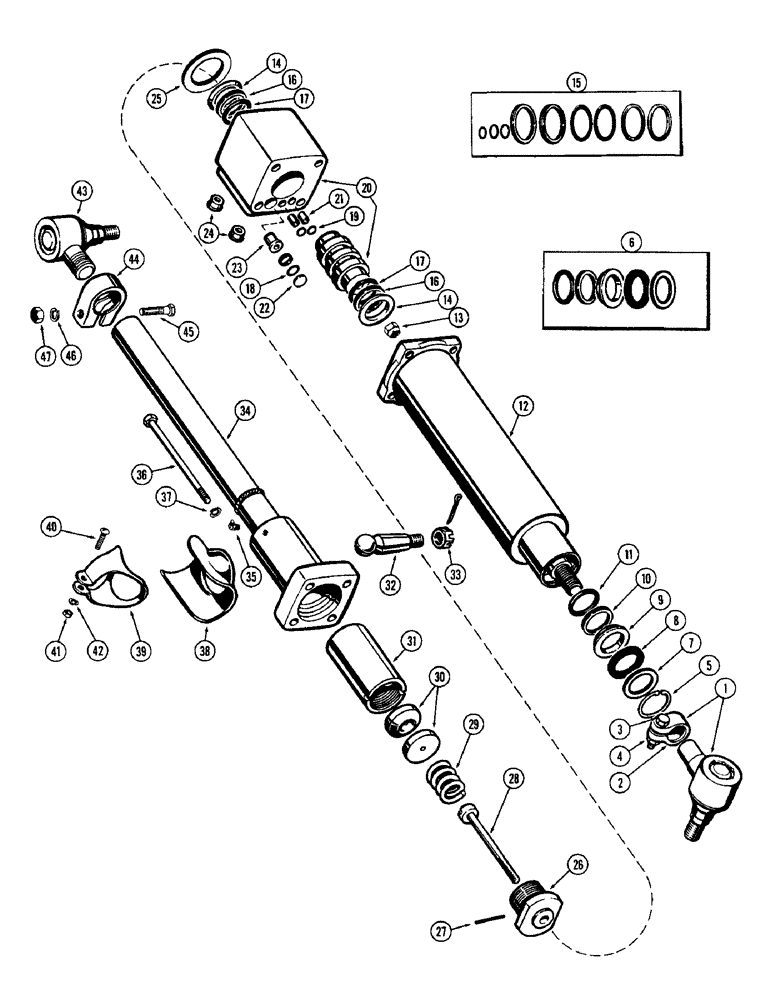

Схема запчастей Case W12 - (140) - POWER STEERING CYLINDER (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

A16767

STEERING CYLINDER

CYLINDER ASSY. - power steering, Includes: Ref. 1 - 47

1шт.

1

A15215

END

ASSY. - cylinder front, Includes: Ref. 2 - 4

1шт.

2

A15216

CLAMP

ASSY. - end, Includes: Ref. 3 and 4

1шт.

3

14-736

BOLT,Hex, 7/16" - 20 x 2-1/4", Gr 5

- hex. hd., 7/16 x 2-1/4" N.F. hex.

1шт.

4

25-117

NUT,7/16"-20, G5

- hex., 7/16" N.F.

1шт.

5

A15894

X

RING - snap, piston rod

1шт.

6

A15231

KIT

SEAL KIT - piston rod, Includes: Ref. 7 - 11

1шт.

7

NSS

NOT SOLD SEPARAT

WASHER - scraper, (Order A15231)

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - dust (Order A15231)

1шт.

9

NSS

NOT SOLD SEPARAT

BUSHING - piston (Order A15231)

1шт.

10

NSS

NOT SOLD SEPARAT

RING - back-up (Order A15231)

1шт.

11

NSS

NOT SOLD SEPARAT

"O" RING - piston rod (Order A15231)

1шт.

12

A16787

CYLINDER

ASSY. - less valve

1шт.

13

131-528

LOCK NUT,3/8"-24

NUT - hex. lock, 3/8" N.F.

1шт.

14

A16753

BUSHING

- relief valve

2шт.

15

A16969

KIT

SEAL KIT - cylinder valve, Includes: Ref. 16 - 19

1шт.

16

NSS

NOT SOLD SEPARAT

RING - back-up (Order A16969)

2шт.

17

NSS

NOT SOLD SEPARAT

"O" RING - relief valve (Order A16969)

2шт.

18

NSS

NOT SOLD SEPARAT

"O" RING - relief valve (Order A16969)

2шт.

19

NSS

NOT SOLD SEPARAT

"O" RING - relief valve (Order A16969)

2шт.

20

A16786

HOUSING

ASSY. - valve, w/spool (Repl. A15236)

1шт.

21

A15235

INSERT

- oil passage

2шт.

22

G46121

PLUG

- check valve

1шт.

23

G45075

LOCK VALVE

VALVE ASSY. - check

1шт.

24

A15233

SEAT

- relief valve

2шт.

25

A16788

PLATE

- valve, Serial Range: housing-flange

1шт.

26

A15228

SCREW

- stop, sleeve

1шт.

27

A15224

AXLE PIN

PIN - lock, stop screw

1шт.

28

A15222

BOLT (SPREADER)

BOLT - valve spool

1шт.

29

A15227

SPRING

- seat pressure

1шт.

30

A15226

SEAT

- ball stud

2шт.

31

A15230

SLEEVE

- ext. tube inner

1шт.

32

A15225

STUD

- ball, cylinder

1шт.

33

25-2412

NUT - hex. castle, 3/4" N.C.

1шт.

34

A15481

TUBE - sleeve outer extension

1шт.

35

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

36

16-676

BOLT (SPREADER)

BOLT - hex. hd., 3/8 x 4-3/4" N.F.

4шт.

37

92-6

LOCK WASHER,3/8"

4шт.

38

A15223

COVER

- dust, ext. tube

1шт.

39

A15220

CLAMP

- dust cover

1шт.

40

173-99

SCREW,Sl Rnd Hd, #10 - 24 x 5/8"

- mach., #10-24 x 5/8" N.C. rd. hd.

1шт.

41

129-7

NUT,Hex, #10 - 24

- hex., N.C. #10-24

1шт.

42

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

43

A15217

END

ASSY. - ball, cylinder

1шт.

44

A15218

CLAMP

ASSY. - sleeve tube, Includes: Ref. 45 - 47

1шт.

45

14-1048

BOLT,Hex, 5/8" - 18 x 3", Gr 5

- hex. hd., 5/8 x 3" N.F.

1шт.

46

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

47

25-1110

NUT,5/8"-18, G5

- hex., 5/8" N.F.

1шт.

Выбрано товаров: 48
