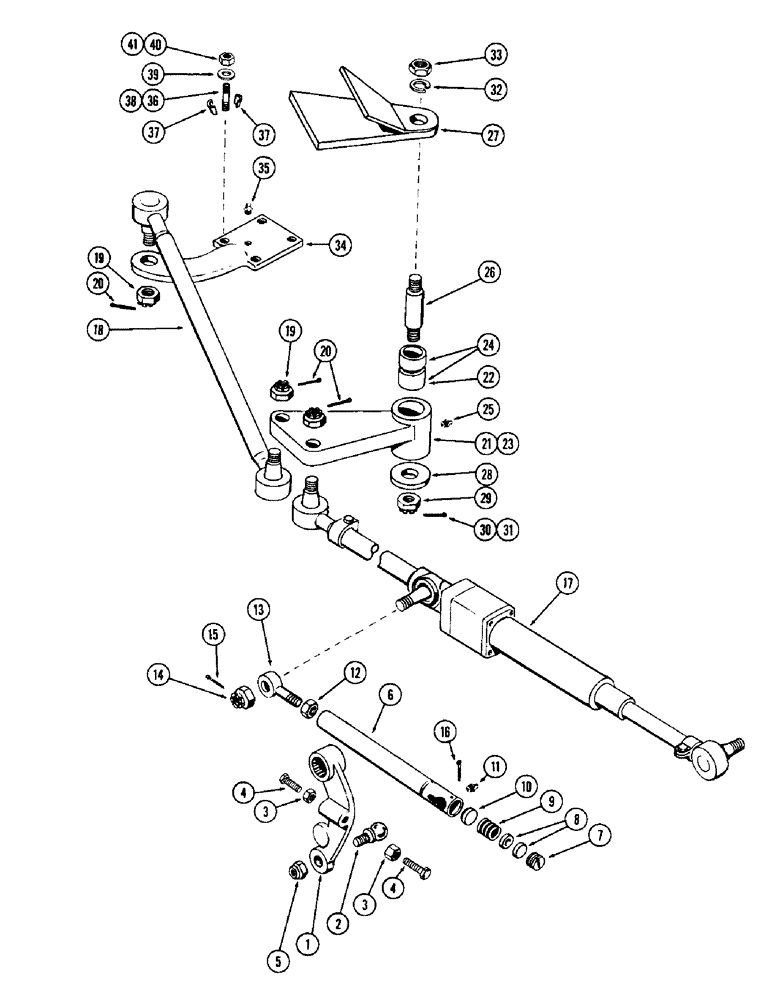

Запчасти Case W12 (138) - STEERING ARMS-CYLINDER AND DRAG LINK (06) - POWER TRAIN

1

A14007

ARM ASSY. - drop, steering, Includes: Ref. 2

1шт.

2

A14009

PIN

BALL - pivot, drop arm

1шт.

3

25-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2" NC

2шт.

4

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

5

131-301

LOCK NUT

NUT - lock, 5/8" N.F. hex.

1шт.

6

A14010

LINK ASSY. - steering valve, Includes: Ref. 7 - 13

1шт.

7

A26628

ADJUSTMENT SCREW,5/16" - 18 x 3/4"

SCREW - adjusting

1шт.

8

A26629

BEARING

- steering link

2шт.

9

A26630

VALVE SPRING

SPRING - bearing pressure

1шт.

10

A26767

SEAT

- pressure spring

1шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube, 1/8" straight

1шт.

12

25-1514

JAM NUT,Jam, 7/8"-14, G5

- hex. jam, 7/8" N.F.

1шт.

13

A14014

ROD END - steering link

1шт.

14

25-1912

SLOTTED NUT,3/4"-16, G5, Thk

NUT - hex. castle, 3/4" N.F.

1шт.

17

A16767

STEERING CYLINDER

CYLINDER ASSY. - power steering (Repairs, Figure. 140)

1шт.

18

A14017

LINK - drag, steering

1шт.

19

425-1914

SLOTTED NUT,7/8"-14, G5, Thk

NUT, SLOTTED, , Castle 7/8"-14, G5, Thk

4шт.

21

A15766

LEVER

- intermediate steering (Late production), Includes: Ref. 22

1шт.

22

A17611

BUSHING

- pivot (Replaces A13352)

1шт.

23

A14020

LEVER - intermediate steering (Early production, w/welded pivot pin, see A15853 kit), Includes: Ref. 24

1шт.

24

A12014

BUSHING

- pivot

2шт.

25

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube, 1/8" straight

1шт.

26

A15762

PIN

- lever pivot, use w/ref. 21

1шт.

27

A15771

LARGE PLATE

PLATE - intermediate pivot pin, use w/ref. 21, Serial Range: (welded-chassis)

1шт.

28

A15763

WASHER

- pivot pin (Use w/ref. 26)

1шт.

28

195-111

WASHER,1"

- plain, (Use w/ref. 23) 1"

1шт.

29

25-1316

NUT,1"-14, G5

NUT, SLOTTED, 1"-14, G5

1шт.

30

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), (Use w/ref. 26) 3/16" x 2"

1шт.

32

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

1шт.

33

25-1516

NUT,Jam, 1"-14, G5

- hex. jam, 1" N.F.

1шт.

34

A15083

ARM - rear axle steering

1шт.

35

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube, 1/8" straight

1шт.

36

A15077

STUD

- steering arm (Long)

2шт.

37

A13105

BUSHING

- split tapered (Use w/ref. 36)

4шт.

38

A15076

STUD

- steering arm (Short)

2шт.

39

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

40

25-1110

NUT,5/8"-18, G5

- hex., 5/8" N.F. (Short stud)

2шт.

41

A15080

NUT

- hex., long stud (Special)

2шт.

15

132-54

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.

20

132-54

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

4шт.

31

132-54

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), (Use w/ref. 23) 1/8" x 1 3/4"

1шт.

16

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

1шт.
