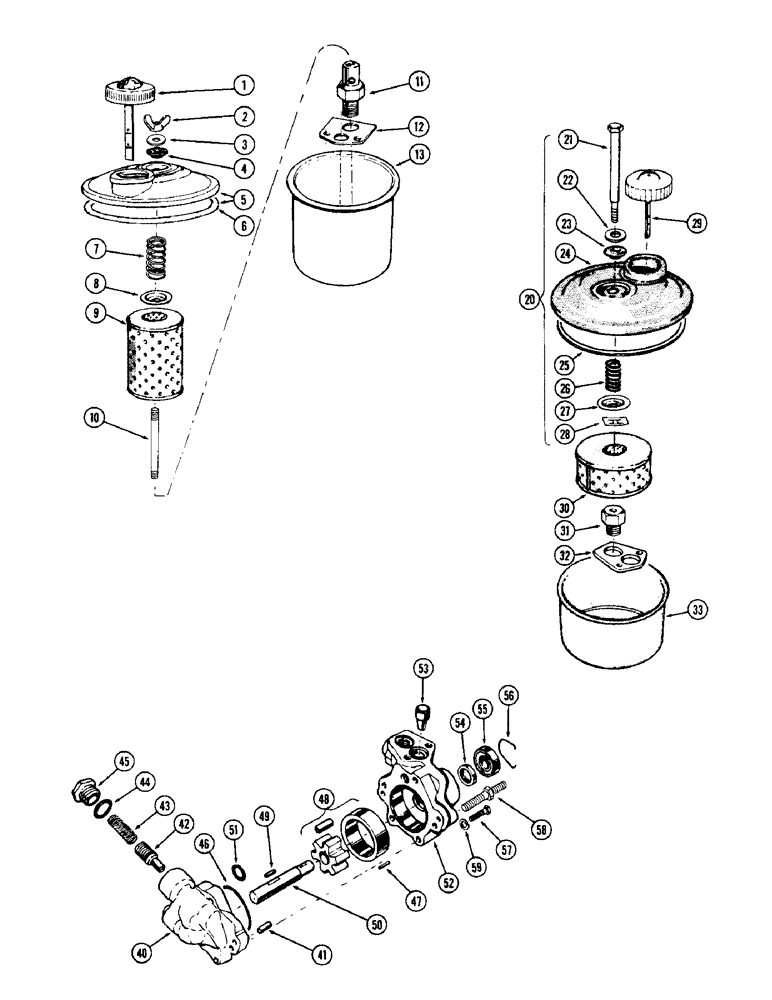

Запчасти Case W12 (136) - STEERING PUMP RESERVOIR, LATE MODEL, STEERING PUMP RESERVOIR (06) - POWER TRAIN

A18468

RESERVOIR

ASSY. - power steering, Includes: Ref. 1 - 13

1шт.

1

A24137

GAUGE ASSY.

CAP ASSY. - gauge and filler

1шт.

2

A24139

NUT

- wing, cover retainer

1шт.

3

A30831

WASHER

- wing nut

1шт.

4

A30830

GASKET

- reservoir stud

1шт.

5

A18058

COVER

ASSY. - reservoir, Includes: Ref. 6

1шт.

6

A24138

GASKET

- cover mounting

1шт.

7

A18059

SPRING

- element retainer

1шт.

8

A22714

SEAT

- retainer spring

1шт.

9

A18061

FILTER, ELEMENT

ELEMENT - filtering

1шт.

10

A18062

STUD

- reservoir

1шт.

11

A18469

ADAPTER - reservoir stud

1шт.

12

A18060

PLATE - reinforcement

1шт.

13

NSS

NOT SOLD SEPARAT

BODY - reservoir (Order A18468)

1шт.

A14063

X

RESERVOIR ASSY. - power steering (Order A18468), Includes: Ref. 20 - 33

1шт.

20

A15150

COVER

ASSY. - reservoir, Includes: Ref. 21 - 28, steering pump reservoir early model

1шт.

21

NSS

NOT SOLD SEPARAT

BOLT - reservoir cover retaining, steering pump reservoir early model

1шт.

22

A30831

WASHER

- cover bolt, steering pump reservoir early model

1шт.

23

A30830

GASKET

- cover bolt, steering pump reservoir early model

1шт.

24

NSS

NOT SOLD SEPARAT

COVER - reservoir (Order A15150), steering pump reservoir early model

1шт.

25

A30833

X

GASKET - reservoir cover, steering pump reservoir early model

1шт.

26

NSS

NOT SOLD SEPARAT

SPRING - filter retainer, steering pump reservoir early model

1шт.

27

A22714

SEAT

- filter spring, steering pump reservoir early model

1шт.

28

A30832

NUT - cover bolt, steering pump reservoir early model

1шт.

29

A15149

X

CAP ASSY. - gauge and filler, steering pump reservoir early model

1шт.

30

A22279

ELEMENT

- filtering, steering pump reservoir early model

1шт.

31

A18469

ADAPTER - filter element, steering pump reservoir early model

1шт.

32

A18060

PLATE - reinforcement, steering pump reservoir early model

1шт.

33

NSS

NOT SOLD SEPARAT

BODY - reservoir (Order A18468), steering pump reservoir early model

1шт.

A14056

PUMP

ASSY. - power steering, Includes: Ref. 40 - 59

1шт.

40

A15102

COVER ASSY. - pump body w/bushing, Includes: Ref. 41, power steering pump

1шт.

41

A30836

DOWEL

PIN - dowel, locating, power steering pump

2шт.

42

A15002

VALVE

ASSY. - relief, power steering pump

1шт.

43

A15055

VALVE SPRING

SPRING - valve, flow control, power steering pump

1шт.

44

A30837

O-RING

GASKET - valve cap, power steering pump

1шт.

45

A20512

CAP - valve, relief, power steering pump

1шт.

46

A20513

O-RING

"O" RING - body sealing, power steering pump

1шт.

47

A20528

PIN

- dowel, cam, power steering pump

1шт.

48

A20519

X

KIT ASSY. - cam, power steering pump

1шт.

49

A30839

AXLE PIN

KEY - pump shaft, power steering pump

1шт.

50

A20510

SHAFT

- pump drive, power steering pump

1шт.

51

A20514

O-RING

"O" RING - by-pass, power steering pump

1шт.

52

A20517

BODY ASSY. - pump, w/bushing (Repl. A15105), Includes: Ref. 53, power steering pump

1шт.

53

A20526

VENTURI

- flow director, power steering pump

1шт.

54

A30838

OIL SEAL

- oil, pump shaft, power steering pump

1шт.

55

A30835

BEARING

- pump shaft, power steering pump

1шт.

56

A20524

RING, SNAP

RING - snap, bearing retainer, power steering pump

1шт.

57

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Power steering pump Hex, 3/8"-16 x 2", G5

2шт.

58

A20527

STUD - pump mtg. & body retainer, power steering pump

1шт.

59

92-6

LOCK WASHER,3/8"

power steering pump 3/8"

5шт.
