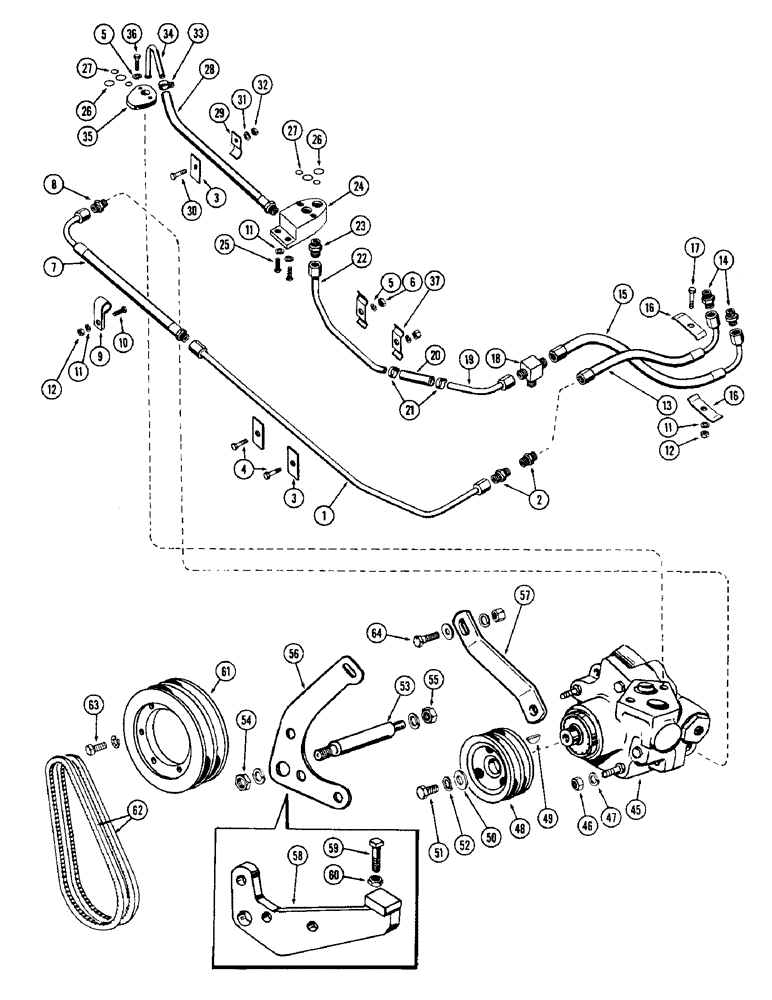

Запчасти Case W12 (134) - POWER STEERING HOSES AND TUBES, POWER STEERING PUMP MOUNTING (06) - POWER TRAIN

1

A14074

TUBE ASSY. - pressure, strg. pump to brake valve

1шт.

2

A14075

X

ADAPTER - brake valve

2шт.

3

A14081

SPACER - suction & pressure tube & hose

3шт.

4

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

2шт.

5

92-5

LOCK WASHER,5/16"

4шт.

6

25-115

NUT,5/16"-24, G5

- hex, 5/16" NF

2шт.

7

A14073

HOSE ASSY.

- pump tp pressure tube

1шт.

8

A14072

ADAPTER

-, Serial Range: hose-pump

1шт.

9

A14183

CLIP - pressure hose

1шт.

10

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

- hex. hd., 3/8 x 1-1/2" N.F.

1шт.

11

92-6

LOCK WASHER,3/8"

4шт.

12

25-116

NUT,Hex, 3/8"-24, G5

- hex., 3/8" N.F.

2шт.

13

A14076

HOSE ASSY. - brake valve to str. cylinder

1шт.

14

A14072

ADAPTER

- hose to steering cylinder

2шт.

15

A14077

HOSE ASSY. - return, brake valve to str. cyl.

1шт.

16

A14078

CLAMP

- steering hose

2шт.

17

14-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

- hex. hd., 3/8 x 1-3/4" N.F.

1шт.

18

A12496

X

TEE - brake valve return

1шт.

19

A15248

TUBE ASSY. - brake, Serial Range: tee-hose

1шт.

20

A15250

HOSE - return tube

1шт.

21

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16" to 1-1/16"

2шт.

22

A15249

TUBE ASSY. - reservoir return

1шт.

23

A14080

X

ADAPTER - return tube to reservoir adapter

1шт.

24

A14064

ADAPTER - pump reservoir

1шт.

25

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

26

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - reservoir & pump plate

4шт.

27

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Reservoir & pump plate bolts

4шт.

28

A14065

HOSE - suction, Serial Range: pump-reservoir

1шт.

29

A27457

CLIP - hose retainer

1шт.

30

14-420

BOLT,Hex, 1/4" - 28 x 1-1/4", Gr 5

1шт.

31

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

32

92-114

NUT - hex., 1/4" N.F.

1шт.

33

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4"

1шт.

34

A14068

TUBE - steering pump inlet

1шт.

35

A14071

CLAMP - plate, pump return tube

1шт.

36

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex. hd., 5/16 x 1-1/4" N.C.

2шт.

37

A12032

CLAMP

- steering tube

2шт.

45

A14056

PUMP

ASSY. - power steering (Repairs, figure 136), power steering pump mounting

1шт.

46

25-116

NUT,Hex, 3/8"-24, G5

- hex., 3/8" N.F., power steering pump mounting

3шт.

47

92-6

LOCK WASHER,3/8"

power steering pump mounting 3/8"

3шт.

48

A14504

PULLEY

- drive, steering pump, power steering pump mounting

1шт.

49

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

Drive pulley, Power steering pump mounting #3, 1/8" x 1/2"

1шт.

50

A27343

BUSHING

WASHER - pulley retaining, power steering pump mounting

1шт.

51

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Power steering pump mounting Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

52

92-5

LOCK WASHER,5/16"

power steering pump mounting 5/16"

1шт.

53

A14062

VALVE, CHECK

STUD - steering pump pivot mounting, power steering pump mounting

1шт.

54

25-1112

NUT,3/4"-16, G5

- hex., 3/4" N.F., power steering pump mounting

1шт.

55

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - hex. jam, 5/8" N.F., power steering pump mounting

1шт.

56

A16660

PLATE - pump mounting (Late production), power steering pump mounting

1шт.

57

A16661

STRAP - adjusting, use w/ref. 56, power steering pump mounting

1шт.

58

A14059

PLATE - pump mounting (Early production), power steering pump mounting

1шт.

59

181-683

SCREW - set, 1/2" x 3" N.C. sq. hd., power steering pump mounting

1шт.

60

25-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2" NC, power steering pump mounting

1шт.

61

A14503

PULLEY - drive, pump (On crankshaft), power steering pump mounting

1шт.

62

A16759

SET OF BELTS

BELT, 2 Matched, Pulley drive, Power steering pump mounting

1шт.

63

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex. hd., 3/8 x 1-1/2" N.C., power steering pump mounting

6шт.

64

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- hex. hd., 3/8 x 1-1/4" N.C., power steering pump mounting

1шт.
