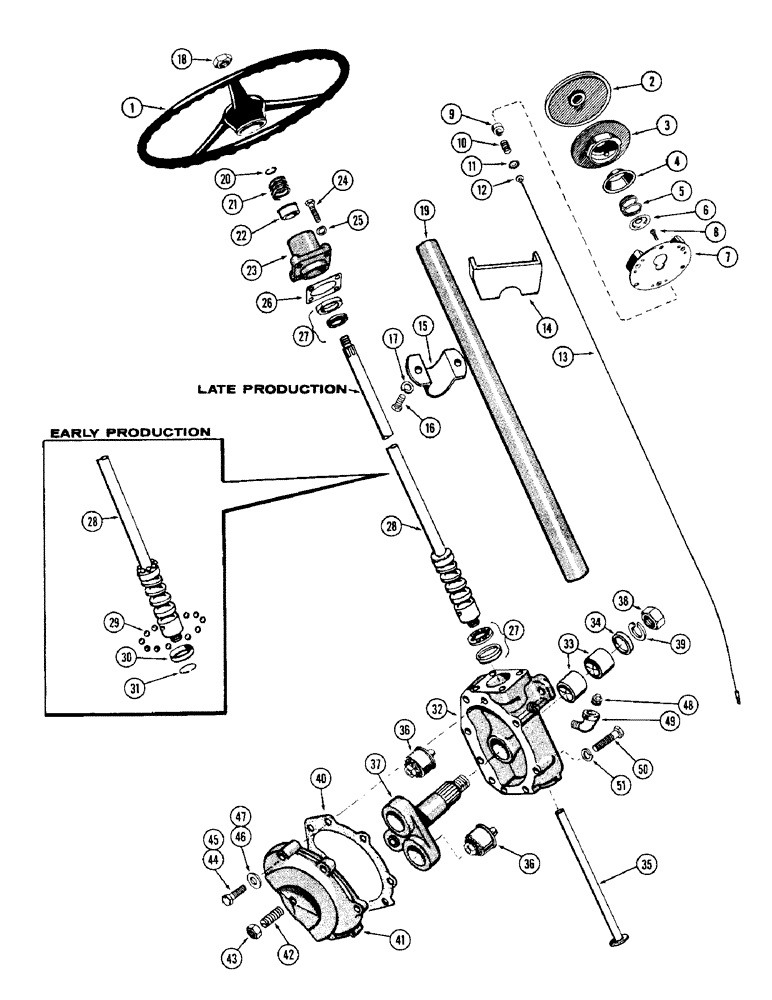

Запчасти Case W12 (132) - HORN BUTTON-STEERING WHEEL AND GEAR (06) - POWER TRAIN

1

A15734

WHEEL (STEERING)

WHEEL - steering, operator

1шт.

2

A13088

CAP

COVER - horn button (Rubber)

1шт.

3

A13089

BUTTON

- horn

1шт.

4

A13092

CAP

CUP - horn contact

1шт.

5

A13091

SPRING

- upper, horn button

1шт.

6

A13090

CAP

- contact

1шт.

7

A13093

PLATE ASSY.

PLATE - base, horn button

1шт.

8

187-30

SCREW - sheet metal, #10 x 5/8" rd. hd.

3шт.

9

A13058

FERRULE

CONTACT - lower, horn button

1шт.

10

A13059

SPRING

- lower, horn button

1шт.

11

A13057

CUP ASSY.

CONTACT - horn, lower

1шт.

12

A14954

TERMINAL STRIP

TERMINAL - horn wire upper

1шт.

13

A15414

WIRE ASSY. - horn button

1шт.

14

A14006

BRACKET - support, steering column

1шт.

15

A12042

CLAMP - steering column

1шт.

16

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

2шт.

17

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

A14005

GEAR WHEEL

GEAR ASSY. - steering, Includes: Ref. 18 - 48

1шт.

18

A13073

NUT

- retainer, steering wheel

1шт.

19

A15413

TUBE

ASSY. - steering column, Includes: Ref. 20 - 22

1шт.

20

A14935

SEAT

- upper bearing spring

1шт.

21

A14946

SPRING - upper bearing

1шт.

22

A14941

BUSHING

BEARING - upper tube

1шт.

23

A14948

COVER ASSY

COVER - upper, housing

1шт.

24

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

25

92-6

LOCK WASHER,3/8"

4шт.

26

A14937

SHIM

- housing cover (.003")

1шт.

26

A14938

SHIM

- housing cover (.010")

1шт.

26

A14939

SHIM

- housing cover (.002")

1шт.

27

L30497

BEARING

ASSY. - worm gear shaft (Use with late production w/o retainer ring)

2шт.

28

A15412

GEAR

CAM & SHAFT ASSY. - steering gear

1шт.

29

211-11

BALL,3/8" Dia

- . steel 3/8" Dia

28шт.

30

A14945

X

CUP - ball, worm cam.

2шт.

31

A14944

RING

- retainer, ball cup (Early prod. only)

2шт.

32

A14949

HOUSING

ASSY. - steering gear, Includes: Ref. 33 and 34

1шт.

33

A14942

BUSHING

- lever shaft

2шт.

34

L30500

SEAL

SEAL - oil, lever shaft (Replaces A14936)

1шт.

35

A14947

COVER

- end, housing

1шт.

36

A14940

BEARING - lever shaft

2шт.

37

A14951

LEVER

SHAFT ASSY. - steering gear

1шт.

38

25-1116

NUT,1"-14, G5

- hex., 1" N.F.

1шт.

39

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

1шт.

40

A14953

GASKET

- side cover, housing

1шт.

41

A14952

COVER ASSY. - housing side

1шт.

42

A30675

ADJUSTMENT SCREW,1/2" - 20 x 1 3/16"

SCREW - adjusting, lever shaft

1шт.

43

A30755

NUT - lock, adjusting screw

1шт.

44

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

45

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16" x 1-1/2" N.C.

2шт.

46

92-5

LOCK WASHER,5/16"

4шт.

47

195-21

WASHER,5/16"

- plain, 5/16"

2шт.

48

221-1031

DRAIN PLUG,Sq Soc, 1/4"-18 NPTF

PLUG - pipe, 3/8" sq. hd.

1шт.

49

221-1413

ELBOW,90 Degree, 3/8"-18, NPT

- street, 3/8" pipe x 90 degrees

1шт.

50

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

4шт.

51

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.
