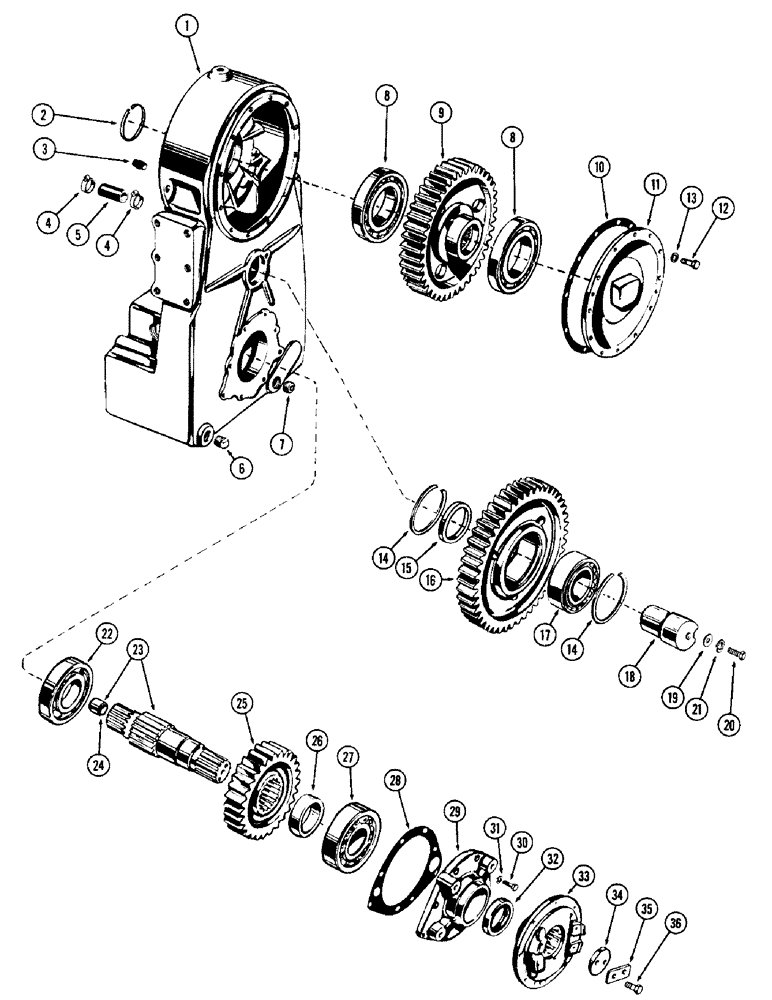

Запчасти Case W12 (126) - TRANSFER HOUSING AND GEARS, USED PRIOR TO TRANSMISSION SER. (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
a
A12812
X
HOUSING - transfer gear
1шт.
2
A12730
RING
- seal, hook type
1шт.
3
A16979
NIPPLE, LUBE
NIPPLE - oil drain
1шт.
4
214-256
HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm
CLAMP - hose, 1-3/16 to 1-3/4"
2шт.
5
A12756
HOSE ASSY.
HOSE - drain tube
1шт.
6
221-5
DRAIN PLUG,Sq Hd, 1/4"-14 NPTF
PLUG - pipe, 3/4" sq. hd.
1шт.
7
221-1026
DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF
PLUG - pipe, 1" socket
1шт.
8
A12655
BEARING
- ball, drive gear (N.D. 3216XRIA)
2шт.
9
A12786
GEAR - drive, output
1шт.
10
A12723
GASKET
- drive gear cover
1шт.
11
A12722
COVER - drive gear
1шт.
12
13-618
BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5
12шт.
13
92-6
LOCK WASHER,3/8"
12шт.
14
A12668
RING, SNAP
RING - snap, idler gear
2шт.
15
A12813
SPACER - idler gear
1шт.
16
A12768
X
GEAR - idler, output
1шт.
17
A12839
BEARING - roller, idler gear (Hyatt A25213-Z)
1шт.
18
A12814
SPINDLE - idler gear
1шт.
19
A12810
WASHER - spindle retainer
1шт.
20
13-714
BOLT,Hex, 7/16" - 14 x 7/8", Gr 5
- hex. hd., 7/16" x 7/8" N.C.
1шт.
21
92-7
LOCK WASHER,7/16"
1шт.
22
40003
BEARING
- ball, output shaft (N.C. 3311XRIA)
1шт.
23
A12815
SHAFT ASSY. - front output, Includes: Ref. 24
1шт.
24
A12702
BUSHING - output shaft
1шт.
25
A12787
GEAR - driven, output
1шт.
26
A12825
SPACER - driven gear
1шт.
27
A12656
BALL BEARING,2.3622" ID x 5.1181" OD x 1.2205"
BEARING - ball, driven gear (N.D. 3312XRIA)
1шт.
28
A12734
GASKET - bearing retainer
1шт.
29
A12795
RETAINER - bearing
1шт.
30
13-622
BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5
- hex. hd., 3/8 x 1-3/8" N.C.
8шт.
31
92-6
LOCK WASHER,3/8"
8шт.
32
A12675
GASKET
SEAL - oil, bearing retainer
1шт.
33
A12838
FLANGE - output shaft
1шт.
34
A12717
WASHER
- flange retainer
1шт.
35
A12736
LOCKING PLATE
- flange locking
1шт.
36
14-618
SCREW,Hex, 3/8" - 24 x 1 1/8", Gr 5
BOLT - hex. hd., 3/8 x 1-1/8" N.F.
1шт.
Выбрано товаров: 36
