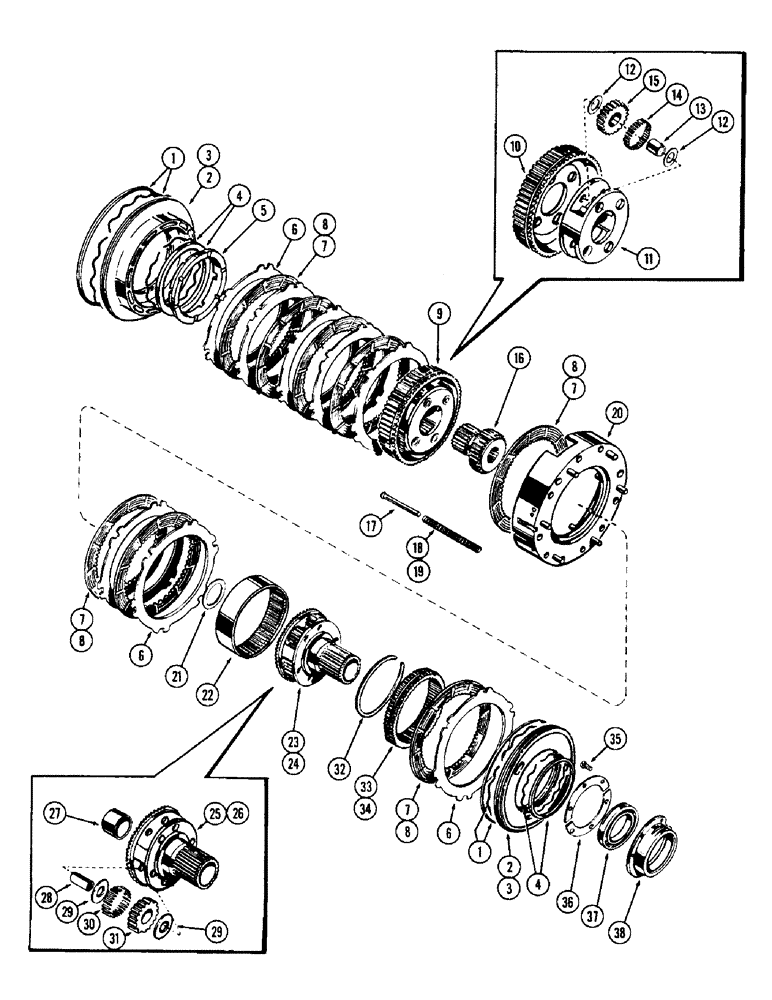

Запчасти Case W12 (116) - FORWARD-REVERSE PLANETARY-CLUTCH (06) - POWER TRAIN

1

A40021

KIT

RING KIT - seal, outer clutch piston (Repl. A12765)

2шт.

2

L30353

PISTON - forward & reverse clutch, Start Serial: 39647

2шт.

3

A12830

PISTON - forward & reverse clutch, Serial Range: -39647

2шт.

4

A40023

SEAL

KIT - inner clutch piston (Repl. A12766)

2шт.

5

A12832

SPACER - forward clutch

1шт.

6

L34015

PLATE

- clutch, external spline ((5) forward clutch and (3) rear clutch) (replaces A12805 )

8шт.

7

A19993

PLATE

- clutch, internal spline (24 grooves) ((5) forward clutch and (3) reverse clutch) (Interchangeable as pack but do not intermix w/ref. 8)

8шт.

8

A12831

FACING, CLUTCH

PLATE - clutch, internal spline (12 grooves) ((5) forward clutch and (3) reverse clutch) (Interchangeable as pack but do not intermix w/ref. 7)

8шт.

9

A12836

CARRIER

ASSY. - forward planetary, Includes: Ref. 10 - 15

1шт.

10

L33927

HUB

- forward planetary (replaces A12835 )

1шт.

11

NSS

NOT SOLD SEPARAT

CARRIER - forward planetary (Order A12836)

1шт.

12

A12700

WASHER

- planetary pinion

8шт.

13

A12705

SPINDLE

PIN - planetary pinion

4шт.

14

A12659

NEEDLE

- pinion

88шт.

15

A16369

PINION

KIT - planetary (Matched set of 4)

1шт.

16

A12704

GEAR WHEEL

GEAR - sun, forward & reverse

1шт.

17

A12837

PIN - guide, clutch spring

12шт.

18

A55806

SPRING

- piston return, Start Serial: 39647

12шт.

19

A16532

X

SPRING - piston return, Serial Range: -39647

12шт.

20

A13214

ANCHOR

- clutch

1шт.

21

A12732

WASHER

- thrust, reverse planetary

1шт.

22

A12712

GEAR

- ring, reverse

1шт.

23

A40037

CARRIER ASSY. - reverse planetary, Includes: Ref. 25 - 31, Start Serial: 37339

1шт.

24

A12718

CARRIER ASSY. - reverse planetary, Includes: Ref. 25 - 31, Serial Range: -37339

1шт.

25

NSS

NOT SOLD SEPARAT

CARRIER - reverse planetary (Order A40037), Start Serial: 37339

1шт.

26

NSS

NOT SOLD SEPARAT

CARRIER - reverse planetary (Order A21718), Serial Range: -37339

1шт.

27

A12728

BUSHING

- reverse planetary

1шт.

28

A12680

PIN

- planetary pinion

6шт.

29

A12681

WASHER

- thrust, pinion pin

12шт.

30

A12682

NEEDLE

- pinion

120шт.

31

A16368

GEAR-SET

PINION KIT - planetary (Matched set of 6)

1шт.

32

A12687

RING

- snap, internal

1шт.

33

L30401

GEAR

- ring, reverse, Start Serial: 39647

1шт.

34

A12833

GEAR - reverse, Serial Range: -39647

1шт.

35

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

4шт.

36

A12708

RETAINER - bearing

2шт.

37

A12657

BALL BEARING

BEARING - ball, reverse planetary (N.D. 43L14)

1шт.

38

A12703

HUB - oil transfer

1шт.
