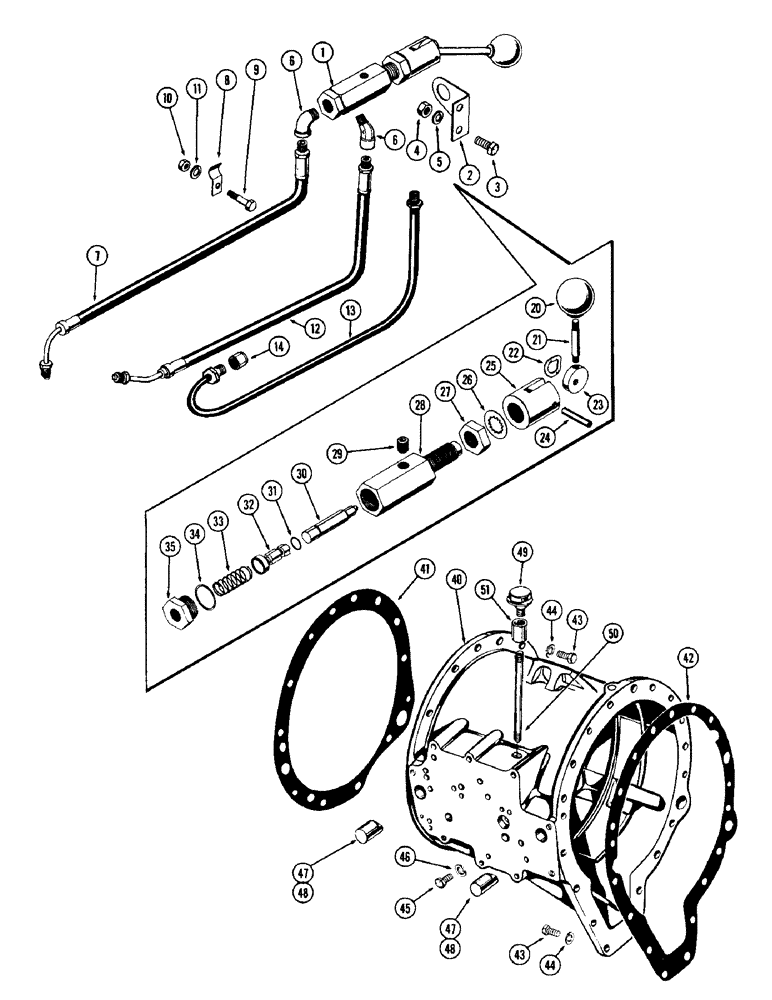

Запчасти Case W12 (114) - TRANSMISSION CLUTCH CUT-OFF, CUT-OFF VALVE, TRANSMISSION (06) - POWER TRAIN

A16667M

ATTCHMENT KIT - trans. clutch cut-off, Includes: Ref. 1 - 14

1шт.

1

A16668

VALVE ASSY. - clutch cut-off

1шт.

2

A16669

BRACKET - valve mounting

1шт.

3

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- hex. hd., 3/8 x 1" N.F.

2шт.

4

25-156

JAM NUT,Jam, 3/8"-24, G5

- jam hex., 3/8" N.F.

2шт.

5

92-6

LOCK WASHER,3/8"

2шт.

6

221-1401

ELBOW,45º, 1/8"-27, NPT

- street, 1/8" pipe x 45 degrees

2шт.

7

A16670

HOSE ASSY. - valve to brake line tee

1шт.

8

A28019

CLIP - hose

1шт.

9

14-416

SCREW,Hex, 1/4" - 28 x 1", Gr 5

BOLT, Hex, 1/4"-28 x 1, G5, Full Thd

1шт.

10

25-114

NUT,1/4"-28, G5

- hex., 1/4" N.F.

1шт.

11

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

12

A16671

HOSE ASSY. - valve to trans. control valve (Use w/A16664 & A12804 valves)

1шт.

13

A16862

TUBE ASSY. - hose to trans. control valve (Use w/A16988 and L30311 valves)

1шт.

14

222-1053

HYD CONNECTOR,1/4" Inv Fl

UNION - 1/4" inverted flare tube (w/ref. 13)

1шт.

A16668

VALVE ASSY. - clutch cut-off, Includes: Ref. 20 - 35

1шт.

20

A16688

KNOB

- control handle, cut-off valve

1шт.

21

A16687

HANDLE - control, cut-off valve

1шт.

22

A16684

SPRING- latch, cut-off valve

1шт.

23

A16686

CAM

- lever, cut-off valve

1шт.

24

A16685

PIN

- spring, cut-off valve

1шт.

25

A16683

CLEVIS - valve, cut-off

1шт.

26

A16681

X

WASHER - lock, clevis, cut-off valve

1шт.

27

A16680

NUT - hex., jam, clevis, cut-off valve

1шт.

28

NSS

NOT SOLD SEPARAT

BODY - valve (Order A16668), cut-off valve

1шт.

29

221-1849

PLUG

- pipe, 1/8" socket hd., cut-off valve

1шт.

30

A16678

ROD

- push, valve, cut-off

1шт.

31

A16679

O-RING

"O" RING - push rod, cut-off valve

1шт.

32

A16676

VALVE - flow control, cut-off valve

1шт.

33

A16674

SPRING

- flow valve, cut-off valve

1шт.

34

A16673

GASKET

- plug, cut-off valve

1шт.

35

A16672

PLUG

- inlet, cut-off valve

1шт.

40

A12808

HOUSING - transmission housing

1шт.

41

A12716

GASKET

- transmission to converter, transmission housing

1шт.

42

A12724

GASKET

- transmission to transfer hsg., transmission housing

1шт.

43

113-309

BOLT - hex. hd., 7/16" x 1-3/8" N.C., Grade 8, transmission housing

31шт.

44

92-7

LOCK WASHER,7/16"

transmission housing 7/16"

31шт.

45

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex. hd., 3/8" x 1-1/2" N.C., transmission housing

1шт.

46

92-6

LOCK WASHER,3/8"

transmission housing 3/8"

1шт.

47

A13215

PIN - anchor, clutch, transmission housing, Start Serial: 5719

2шт.

48

A12809

X

PIN - anchor, clutch, (Order (1) A13214 and (2) A13215), transmission housing, Serial Range: -5719

2шт.

49

A12670

X

BREATHER ASSY. - transmission housing

1шт.

50

221-1177

NIPPLE - pipe, 3/8 x 5", transmission housing

1шт.

51

221-1337

COUPLING,Pipe, 3/8" NPT

- 3/8" pipe, transmission housing

1шт.
