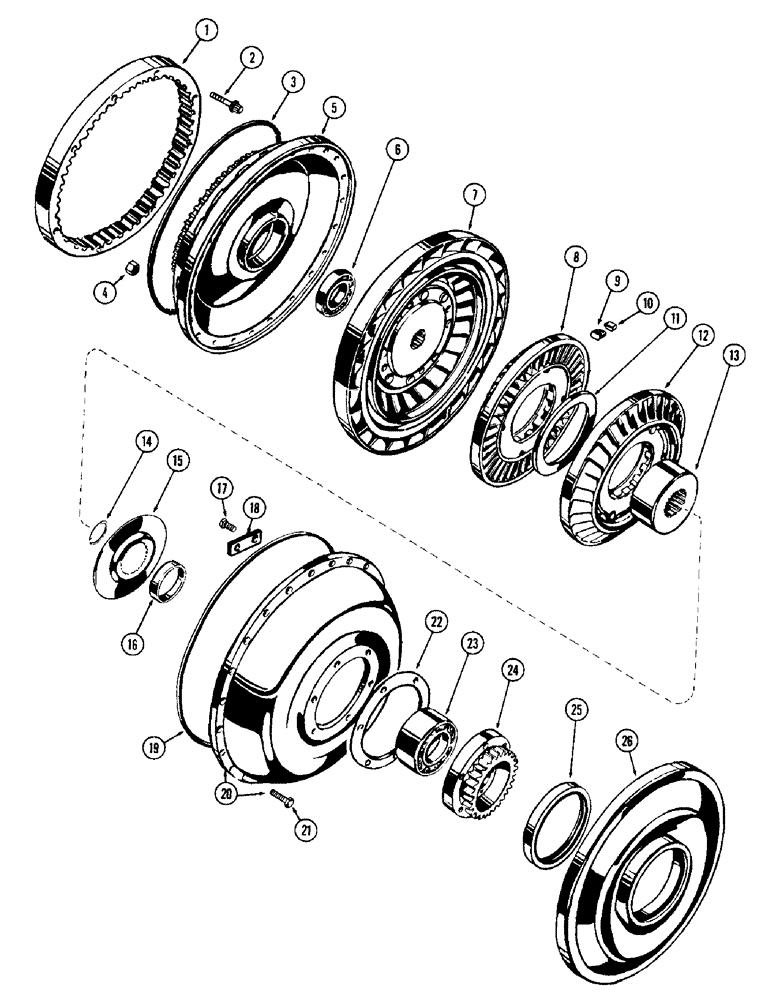

Запчасти Case W12 (108) - TORQUE CONVERTER, USED PRIOR TO TRANSMISSION SER. NO. 39647 (06) - POWER TRAIN

1

A16644

RING

- drive, converter

1шт.

2

166-46

12 PT SCREW,Flg, 3/8" - 16 x 1 1/4", Gr 8

BOLT - 3/8" x 1-1/4" N.C., Ferry Cap 12 pt.

8шт.

3

A16645

SEALING RING

- drive ring

1шт.

4

25-135

SLOTTED NUT,5/16"-24, G5

NUT - hex., 5/16" N.F.

24шт.

5

A23329

COVER ASSY

COVER - converter pump

1шт.

6

B18215

BALL BEARING,1.5748" ID x 3.1496" OD x 0.7087"

BEARING - ball, converter pump (N.D. 3208XRIA)

1шт.

7

A12762

TURBINE

- coverter

1шт.

8

A13908

STATOR

- first torque

1шт.

9

A15973

SPRING

- freewheel roller

16шт.

10

A12840

ROLLER

- freewheel

16шт.

11

A12685

HOSE

WASHER - spacing, first & second stator

1шт.

12

A12690

STATOR

- second torque

1шт.

13

A12692

RACE - freewheel

1шт.

14

A12694

RING, SNAP

RING - snap, converter shaft

1шт.

15

A12691

SPACER - outer second stator

1шт.

16

A12693

SPACER

- converter pump

1шт.

17

14-420

BOLT,Hex, 1/4" - 28 x 1-1/4", Gr 5

6шт.

18

A12731

LOCKING PLATE

STRIP - lock, accessory gear

3шт.

19

A12674

RING

- seal, converter housing

1шт.

20

A12725

PUMP ASSY. - converter, Includes: Ref. 21

1шт.

21

A12695

BOLT

- pump mounting (Special)

24шт.

22

A12826

GASKET

- accessory gear

1шт.

23

L30356

BEARING

- ball, (N.D. 45209L1214A) (Repl. A12757)

1шт.

24

A12827

GEAR - accessory drive

1шт.

25

L34000

DIAPHRAGM

SEAL - oil, housing diaphragm (replaces A12760)

1шт.

26

L34000

DIAPHRAGM

- converter housing (replaces A12824)

1шт.
