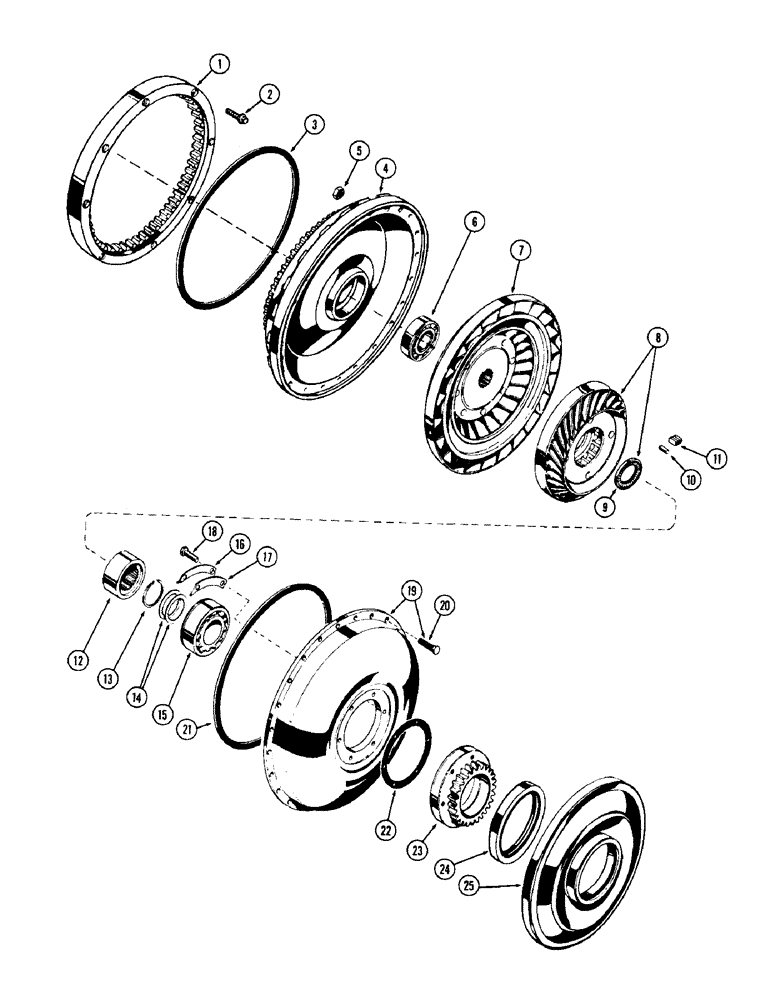

Запчасти Case W12 (106) - TORQUE CONVERTER, FIRST USED TRANSMISSION SER. NO. 39647 (06) - POWER TRAIN

1

A16644

RING

- drive, converter

1шт.

2

166-46

12 PT SCREW,Flg, 3/8" - 16 x 1 1/4", Gr 8

BOLT - 3/8" - 16 x 1-1/4" N.C., Ferry Cap 12 pt. hd.

8шт.

3

A16645

SEALING RING

- drive ring

1шт.

4

L30355

COVER

- converter pump (replaces L30555)

1шт.

5

25-135

SLOTTED NUT,5/16"-24, G5

NUT - hex., 5/16" N.F.

24шт.

6

L30286

BEARING

- ball, rear cover (N.D. 3L10XRIA)

1шт.

7

L30287

TURBINE

- coverter

1шт.

8

L30288

STATOR

ASSY. - converter, Includes: Ref. 9

1шт.

9

L30289

BALL BEARING

- roller thrust (Hyatt #AFB29009)

1шт.

10

L30290

ROLLER

- freewheel

10шт.

11

L30291

SPRING

- freewheel roller

10шт.

12

L30292

RACE

- freewheel roller

1шт.

13

A12694

RING, SNAP

RING - snap, converter shaft

1шт.

14

L30293

SPACER

- roller race

2шт.

15

L30297

BALL BEARING

- ball, double row (N.D. 45309L1903A)

1шт.

16

L30295

LOCKING PLATE

- lock, tab

3шт.

17

L30296

RETAINER

- bearing

3шт.

18

L30294

BOLT - hex. hd. self locking, 5/16"-24 x 1-1/4" N.F.

6шт.

19

L34012

PUMP

ASSY. - converter (replaces L30298), Includes: Ref. 20

1шт.

20

A12695

BOLT

- pump securing (Special)

24шт.

21

A12674

RING

- quad, converter seal

1шт.

22

L30299

GASKET

- accessory drive gear

1шт.

23

L30300

GEAR WHEEL

GEAR - accessory drive

1шт.

24

L34000

DIAPHRAGM

SEAL - oil, pump diaphragm (replaces A12760)

1шт.

25

L34000

DIAPHRAGM

- converter housing (replaces A12824)

1шт.
