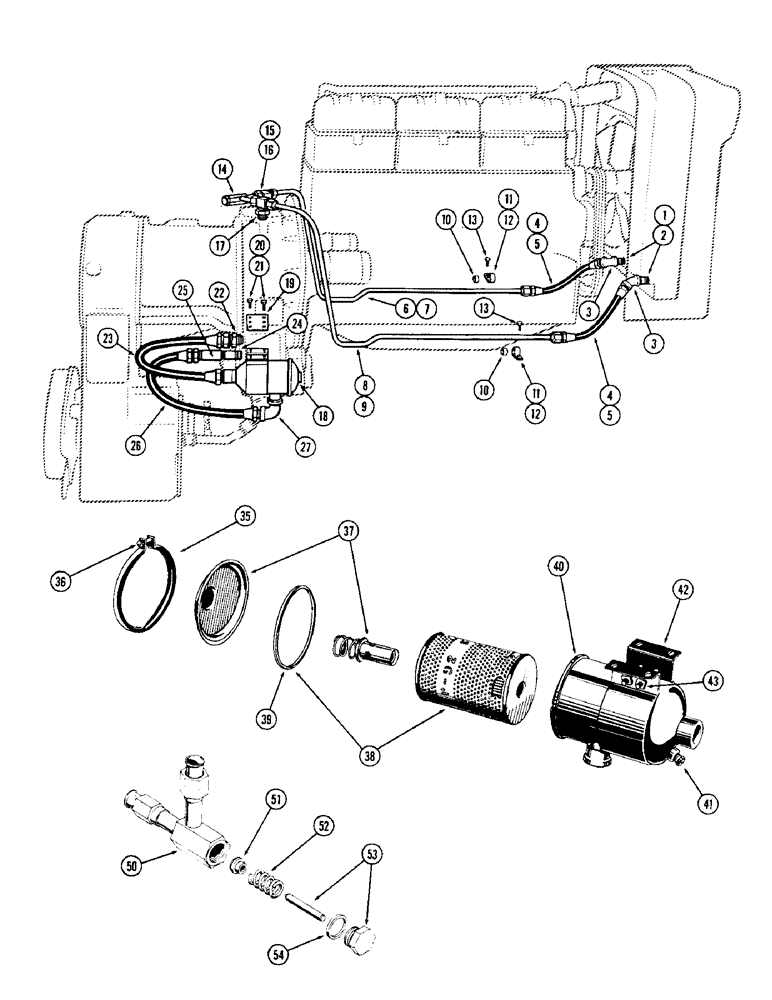

Запчасти Case W12 (104) - CONVERTER AND TRANSMISSION HOSES-TUBES, TRANSMISSION OIL (06) - POWER TRAIN

1

221-1191

PIPE,Nipple, 1/2" NPT x 2 1/2"

NIPPLE - 1/2 x 2" pipe (Late production)

2шт.

2

221-1192

FITTING

NIPPLE - 1/2 x 3" pipe (Early production)

2шт.

3

221-1368

ELBOW,45 Degree, 1/2" NPT

- pipe, 1/2" x 45 degrees

2шт.

4

A16704

HOSE - oil cooler (Use w/3/4" O.D. tube)

2шт.

5

A12495

HOSE

- oil cooler (Use w/5/8" O.D. tube)

2шт.

6

A16702

TUBE ASSY. - oil cooler R.H. (3/4" O.D. tube, use on late production)

1шт.

7

A14286

TUBE ASSY. - oil cooler R.H. (5/8" O.D. tube, first production only) (Exh. stock then order A16530)

1шт.

7

A16530

TUBE ASSY. - oil cooler R.H. (5/8" O.D. tube, use on early production)

1шт.

8

A16703

TUBE ASSY. - oil cooler (3/4" O.D. tube, use on late production)

1шт.

9

A14287

TUBE ASSY. - oil cooler L.H. (5/8" O.D. tube, use on early production)

1шт.

10

T25073

BUSHING

SPACER - cooler tube clip

2шт.

11

A21633

CLIP - cooler tube (Use w/ref. 6 and 8)

2шт.

12

A12497

CLIP - cooler tube (Use w/ref. 7 and 9)

2шт.

13

14-632

BOLT,Hex, 3/8" - 24 x 2", Gr 5

- hex. hd., 3/8 x 2" N.F.

2шт.

14

A16384

VALVE

ASSY. - cooler by-pass

1шт.

15

A16699

TEE - male outlet, use w/ref. 6 & 8

2шт.

16

A12496

X

TEE - male outlet, use w/ref. 7 and 9

2шт.

17

221-60

TUBE

BUSHING - reducer, use w/ref. 16 only

2шт.

18

A12615

FILTER ASSY. - transmission oil

1шт.

19

A12614

BRACKET - filter mounting

1шт.

20

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- hex. hd., 3/8 x 1" N.F. (Filter to bracket)

4шт.

21

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

- hex. hd., 3/8 x 1-1/2" N.F. (Bracket to channel)

2шт.

22

221-1065

BUSHING

- reducer, Serial Range: 1"-3/4"

1шт.

23

A12613

HOSE - outler, filter

1шт.

24

221-241

X

NIPPLE - pipe, 1 x 3"

1шт.

25

221-354

COUPLING - reducer, Serial Range: 1"-3/4"

1шт.

26

A12612

HOSE ASSY.

HOSE - inlet, filter

1шт.

27

221-1415

ELBOW,90 Degree, 3/4"-14, NPT

- street, 3/4" x 90 degrees

1шт.

A12615

FILTER ASSY. - transmission oil, Includes: Ref. 35 - 43

1шт.

35

A15989

RING

CLAMP ASSY. - filter cover (2 halves), transmission oil filter, Includes: Ref. 36 - 43

1шт.

36

71-414

BOLT (MACHINE),M12 x 1.75 x 45mm, Cl 10.9

SCREW - mach. 1/4" x 7/8" slotted Fill. hd., transmission oil filter

2шт.

37

A15991

COVER

ASSY. - filter (w/relief valve), transmission oil filter

1шт.

38

A13211

FILTER, ENGINE OIL

ELEMENT KIT - filter, transmission oil filter, Includes: Ref. 39

1шт.

39

A13208

GASKET

GASKET - filter cover, transmission oil filter

1шт.

40

NSS

NOT SOLD SEPARAT

BODY - filter (Order A12615), transmission oil filter

1шт.

41

221-661

PLUG,Hex Hd, 1/8"-27

- pipe, 1/4" hex. hd., transmission oil filter

1шт.

42

A13210

BRACKET - mounting, filter, transmission oil filter, Includes: Ref. 43

1шт.

43

72-540

SCREW - mach. 5/16" x 2-1/2" N.C. sltd. hd., transmission oil filter

2шт.

A16384

VALVE

ASSY. - by-pass, transmission oil, Includes: Ref. 50 - 54

1шт.

50

NSS

NOT SOLD SEPARAT

BODY ASSY - valve (Order A16384), by-pass valve

1шт.

51

A16388

POPPET - valve, by-pass

1шт.

52

A27351

SPRING

- valve poppet, by-pass valve

1шт.

53

A16385

CAP ASSY. - valve, by-pass

1шт.

54

A27927

OIL PAN GASKET SET

- valve cap, by-pass valve

1шт.
