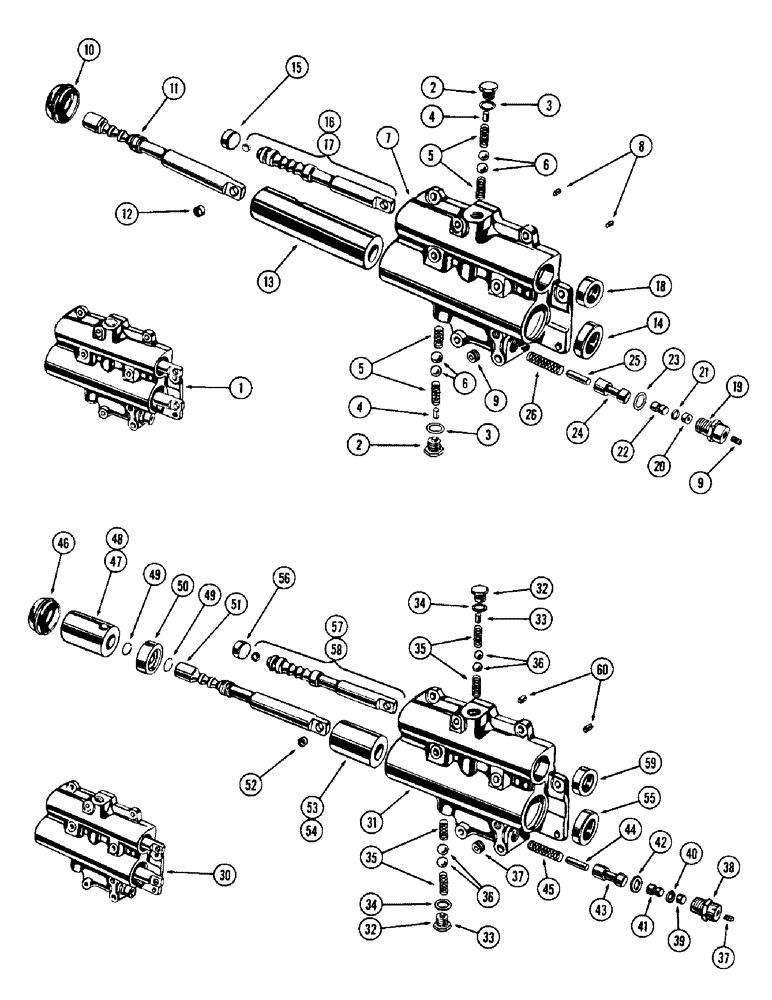

Запчасти Case W12 (102) - CONTROL VALVE, TRANSMISSION SER. NO. 18213 TO S.N. 23080, USED (06) - POWER TRAIN

1

A16664

LOCK VALVE

VALVE ASSY. - control, transmission ( Repais Figure 102), Includes: Ref. 2 - 26

1шт.

2

A16531

PLUG - selector valve

2шт.

3

A12650

GASKET - valve plug (Copper)

2шт.

4

A12669

WEIGHT

PIN - valve plug

2шт.

5

A12661

SPRING

- valve ball detent

4шт.

6

211-15

BALL,5/8" Dia

- detent spring, . 5/8" Dia

4шт.

7

NSS

NOT SOLD SEPARAT

BODY - control valve (Order A16664)

1шт.

8

138-220

LOCK PIN,3/8" x 3/4", Slotted

PIN, 3/8" x 3/4", Slotted

2шт.

9

221-1661

PLUG

- pipe, 1/8" hex. hd.

2шт.

10

A12654

PLUG - cover, forward & reverse spool

1шт.

11

A16663

SPOOL ASSY. - forward & reverse selector

1шт.

12

A13517

BUSHING - valve spool end

1шт.

13

A16662

SLEEVE

- spool, forward & reverse

1шт.

14

A12747

OIL RESERVOIR

SEAL - oil, forward & reverse spool

1шт.

15

A12699

PLUG - range selector spool

1шт.

16

A12746

SPOOL ASSY. - range selector

1шт.

17

A13517

BUSHING - range spool end

1шт.

18

A12660

SEAL

- oil, range spool

1шт.

19

A12784

PLUG

- retainer, cut-off

1шт.

20

A16568

CUP ASSY.

CUP - cut-off plug

1шт.

21

A12666

O-RING,0.359" ID x 0.73"

"O" RING - cut-off plug

1шт.

22

A16569

PLUG

- cut-off valve

1шт.

23

A12649

GASKET

- retainer plug

1шт.

24

A12782

LOCK VALVE

VALVE - cut-off

1шт.

25

A12648

X

PIN - cut-off valve

1шт.

26

A12741

SPRING - cut-off valve

1шт.

30

A12818

VALVE ASSY. - control, transmission, Includes: Ref. 31 - 60, Serial Range: -18213

1шт.

31

NSS

NOT SOLD SEPARAT

BODY - control valve (Order A16664), Serial Range: -18213

1шт.

32

A16531

PLUG - selector spool, Serial Range: -18213

2шт.

33

A12669

WEIGHT

PIN - plug, selector, Serial Range: -18213

2шт.

34

A12650

GASKET - selector plug, Serial Range: -18213

2шт.

35

A12661

SPRING

- detent ball, Serial Range: -18213

4шт.

36

211-15

BALL,5/8" Dia

- detent, . 5/8" Dia, Serial Range: -18213

4шт.

37

221-1661

PLUG

- pipe, 1/8" hex. hd., Serial Range: -18213

2шт.

38

A12784

PLUG

- retianer, cut-off, Serial Range: -18213

1шт.

39

A16568

CUP ASSY.

CUP - plug, cut-off, Serial Range: -18213

1шт.

40

A12666

O-RING,0.359" ID x 0.73"

"O" RING - cut-off plug, Serial Range: -18213

1шт.

41

A16569

PLUG

- cut-off valve, Serial Range: -18213

1шт.

42

A12649

GASKET

- cut-off plug, Serial Range: -18213

1шт.

43

A12782

LOCK VALVE

VALVE - cut-off, Serial Range: -18213

1шт.

44

A12648

X

PIN - cut-off valve, Serial Range: -18213

1шт.

45

A12741

SPRING - cut-off valve, Serial Range: -18213

1шт.

46

A12654

PLUG - cover, forward & reverse spool, Serial Range: -18213

1шт.

47

A13228

SLEEVE - frwd. range (Trans. S.N. 5909 to 18213), Serial Range: -18213

1шт.

48

A12742

SLEEVE - frwd, range (Prior trans. S.N. 5909), Serial Range: -18213

1шт.

49

A12667

RING

- snap, forward & reverse spool, Serial Range: -18213

2шт.

50

A12744

PISTON - forward & reverse spool, Serial Range: -18213

1шт.

51

A12743

SPOOL ASSY. - forward & reverse selector, Includes: Ref. 52, Serial Range: -18213

1шт.

52

A13517

BUSHING - selector spool end, Serial Range: -18213

1шт.

53

A13227

SLEEVE - reverse range (Trans. S.N. 5909 to 18213), Serial Range: -18213

1шт.

54

A12745

SLEEVE - reverse range, Serial Range: -18213

1шт.

55

A12747

OIL RESERVOIR

SEAL - oil, forward & reverse spool, Serial Range: -18213

1шт.

56

A12699

PLUG - range spool end, Serial Range: -18213

1шт.

57

A12746

SPOOL ASSY. - range selector, Includes: Ref. 58, Serial Range: -18213

1шт.

58

A13517

BUSHING - selctor spool end, Serial Range: -18213

1шт.

59

A12660

SEAL

- oil, range selector spool, Serial Range: -18213

1шт.

60

138-220

LOCK PIN,3/8" x 3/4", Slotted

PIN, 3/8" x 3/4", Slotted, Serial Range: -18213

2шт.
