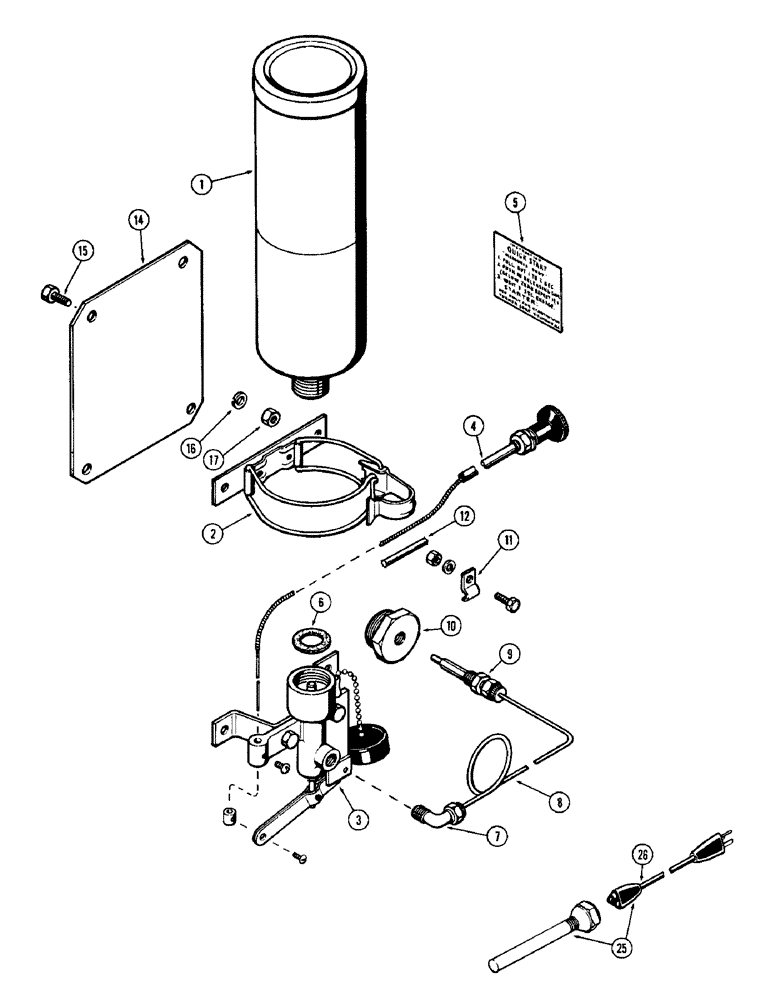

Запчасти Case W12 (074) - COLD START KIT, BLOCK HEATER (04) - ELECTRICAL SYSTEMS

L10281

COLD START KIT - engine (Mach. item), Includes: Ref. 1 - 9

1шт.

1

L30187

CYLINDER - starting fluid

1шт.

2

L30183

BRACKET

CLAMP ASSY. - cylinder mounting

1шт.

3

L30180

BODY

VALVE ASSY. - starting fluid

1шт.

4

L30182

CABLE ASSY. - valve actuator (60")

1шт.

5

L30184

DECAL - instruction (Mtd. on inst. panel)

1шт.

6

L30188

GASKET

-, Serial Range: cylinder-valve

1шт.

7

L30181

ELBOW - injection tube

1шт.

8

L30319

TUBE - fluid injection (24" copper)

1шт.

9

L30185

FITTING

-, Serial Range: tube-manifold

1шт.

10

L10283

PLUG

- adapter, Serial Range: fitting-manifold

1шт.

11

A12454

CLIP

- cable

1шт.

12

A12484

LOOM - cable and clip

1шт.

14

L10282

PLATE - mounting, cylinder

1шт.

15

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

4шт.

16

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

17

25-104

NUT,1/4"-20, G5

4шт.

25

A40476

HEATER

ASSY. - water jacket, Includes: Ref. 26, block heater

1шт.

26

A40477

ELECTRICAL WIRE

CORD ASSY. - heater, water jacket (7 ft.), block heater

1шт.
