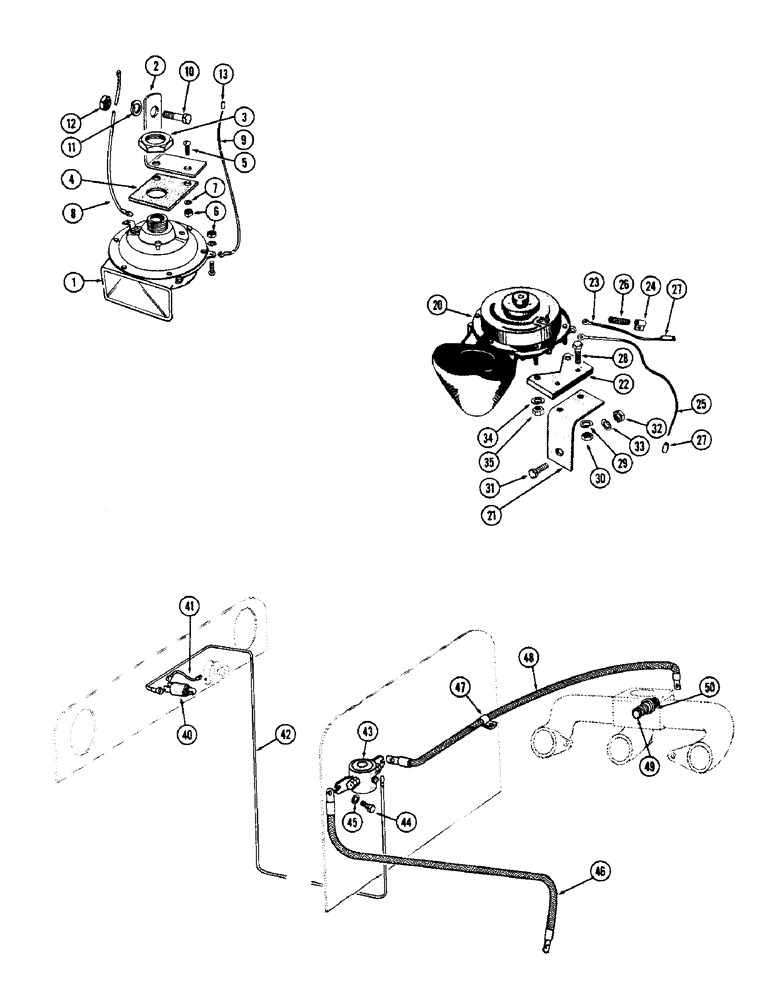

Запчасти Case W12 (072) - HORN (04) - ELECTRICAL SYSTEMS

A56136

HORN

KIT - warning sound, Includes: Ref. 1 - 8

1шт.

1

A19581

HORN

ASSY. - warning sound

1шт.

2

A12489

BRACKET - mounting, horn

1шт.

3

A19827

X

NUT - horn mounting

1шт.

4

A19582

PLATE - horn mounting

1шт.

5

173-97

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- mach., #10 x 1/2" N.C. rd. hd.

3шт.

6

129-7

NUT,Hex, #10 - 24

- hex., #10 N.C.

3шт.

7

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

8

A56428

WIRE - horn to panel conn. (Black 34")

1шт.

9

A27340

ELECTRICAL WIRE

WIRE - horn to strg. column (Black 8")

1шт.

10

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- hex. hd., 3/8" x 1-1/4" N.F.

1шт.

11

92-6

LOCK WASHER,3/8"

1шт.

12

25-116

NUT,Hex, 3/8"-24, G5

- hex., 3/8" N.F.

1шт.

13

A27213

CONNECTOR - two wire

1шт.

20

A9974NS

HORN ASSY. - warning sound (Order A56136), horn

1шт.

21

A12489

BRACKET - block & horn mounting

1шт.

22

A12490

BLOCK - insulating, horn

1шт.

23

A13792

WIRE - horn to strg. column (Black 8")

1шт.

24

A7922

CLIP

- wire, horn

1шт.

25

A13791

WIRE - horn to panel conn. (Black 40")

1шт.

26

A12458

SLEEVE

LOOM - horn wire, horn

1шт.

27

A27213

CONNECTOR - two wire, horn

2шт.

28

174-100

SCREW,Sl Rnd Hd, #10 - 32 x 3/4"

- mach., #10-32 N.F. rd. hd., horn

2шт.

29

92-3

LOCK WASHER,#10

WASHER, LOCK, , Horn #10

2шт.

30

129-7

NUT,Hex, #10 - 24

- hex., #10-32 N.F., horn

2шт.

31

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Horn Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

32

25-116

NUT,Hex, 3/8"-24, G5

- hex., 3/8" N.F. jam, horn

1шт.

33

92-6

LOCK WASHER,3/8"

horn 3/8"

1шт.

34

92-3

LOCK WASHER,#10

WASHER, LOCK, , Horn #10

2шт.

35

129-27

NUT,Hex, #10 - 32

- hex., #10 N.F., horn

2шт.

A18499M

HEATER KIT - manifold (Mach. item), Includes: Ref. 40 - 50

1шт.

40

A30969

SWITCH

- push button, manifold heater

1шт.

41

A13752

WIRE - swt. to ign. swt. "B" term (Red 13"), manifold heater

1шт.

42

A9042

BOLT

WIRE - button swt. to sol. swt. (100"), mainfold heater

1шт.

43

A18501

SOLENOID SWITCH

SWITCH ASSY. - solenoid, manifold heater

1шт.

44

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Manifold heater Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

45

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Manifold heater 1/4"

2шт.

46

A18503

CABLE - heater sol. to starter sol. (23-1/2" long), manifold heater

1шт.

47

A10852

CLIP - cable retaining, manifold heater

1шт.

48

A18502

CABLE - heater sol. man. heater (35" long), manifold heater

1шт.

49

A34278

HEATER

ASSY. - manifold (24 volt), manifold heater

1шт.

50

A20916

MANIFOLD GASKET

GASKET - manifold heater mounting, manifold heater

1шт.
