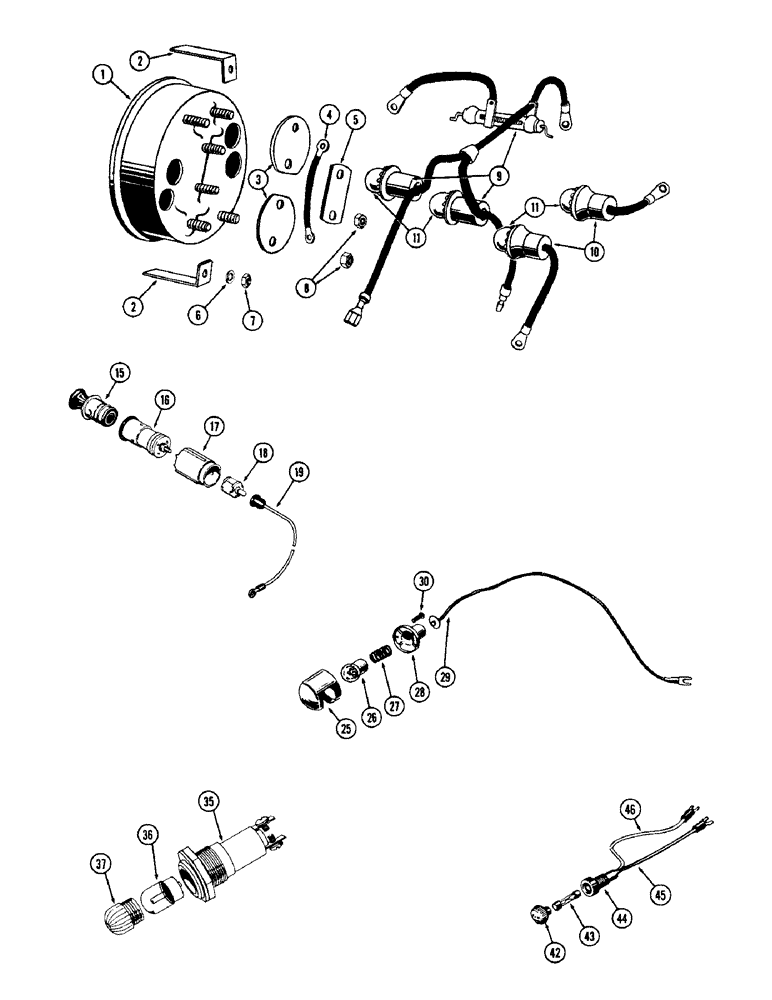

Запчасти Case W12 (070) - INSTRUMENT CLUSTER, CIGARETTE LIGHTER, DASH LAMP, AIR (04) - ELECTRICAL SYSTEMS

A14730

INSTRUMENT CLUSTER

CLUSTER ASSY. - instrument, Includes: Ref. 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - gauge & light (Order A14730)

1шт.

2

A14552

BRACKET - mounting, cluster

2шт.

3

A14551

INSULATOR - temp. & fuel gauge (Round)

2шт.

4

A14549

WIRE - cross, temp. gauge to fuel gauge

1шт.

5

G46039

INSULATOR

- temp. gauge to fuel gauge (Rectangle)

1шт.

6

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

7

129-7

NUT,Hex, #10 - 24

- hex., #10 N.C.

2шт.

8

131-400

NUT - hex., #10 N.F. pal

4шт.

9

A14927

SOCKET & RESISTOR ASSY. - oil pressure and generator indicator (42.7 OHMS)

1шт.

10

G45029

SOCKET ASSY. - gauge cluster lighting

2шт.

11

A14928

BULB

- light, GE #356, 24-28 volt

4шт.

G44915M

LIGHTER ASSY. - cigarette (Mach. item), Includes: Ref. 15 - 19

1шт.

15

A24134

CIGARETTE LIGHTER

UNIT ASSY. - pop out, cigarette lighter

1шт.

16

G46381

SHELL - clamp, socket, cigarette lighter

1шт.

17

G44916

SOCKET

ASSY. - lighter, cigarette, Includes: Ref. 18 and 19

1шт.

18

G44918

FUSE - lighter, cigarette

1шт.

19

G44022

ELECTRICAL WIRE

WIRE - fuse, cigarette lighter

1шт.

A14737

LAMP

ASSY. - dash panel, Includes: Ref. 25 - 29

2шт.

25

B50319

HOOD - bulb, lamp, dash lamp

1шт.

26

A15237

BULB

- light, 24 volt (Mfrs. #509), dash lamp

1шт.

27

B50262

SPRING - tension, bulb, dash lamp

1шт.

28

B50320

SOCKET - lamp bulb, dash lamp

1шт.

29

B50332

WIRE ASSY. - lamp, dash lamp

1шт.

30

187-1007

SCREW

- mach., #6-32 x 5/16" sef. tap. rd. hd., dash lamp

2шт.

A14736

LAMP ASSY. - air cleaner warning

1шт.

35

NSS

NOT SOLD SEPARAT

SOCKET ASSY. - warning lamp (Order A14736), air cleaner warning light, Includes: Ref. 35 - 37

1шт.

36

A15126

BULB

- light, 12 volt (Mfrs. #1815), air cleaner warning light

1шт.

37

A15127

LENS

- lamp (Red), air cleaner warning light

1шт.

A8006

NOZZLE HOLDER

HOLDER ASSY. - fuse, Includes: Ref. 42 - 44

1шт.

42

A10958

CAP

- fuse holder

1шт.

43

223-20

FUSE,20 Amp, Type SFE

- holder, SFE 20

1шт.

44

NSS

NOT SOLD SEPARAT

SOCKET ASSY. - fuse holder (Order A8006)

1шт.

45

A13751

WIRE - fuse to light switch (Red 3"), fuse holder

1шт.

46

A13752

WIRE - fuse to ign. swt. "B" term. (Red 13"), fuse holder

1шт.
