Запчасти Case W12 (068) - FRONT AND REAR LAMP, RUBBER MOUNTED (04) - ELECTRICAL SYSTEMS

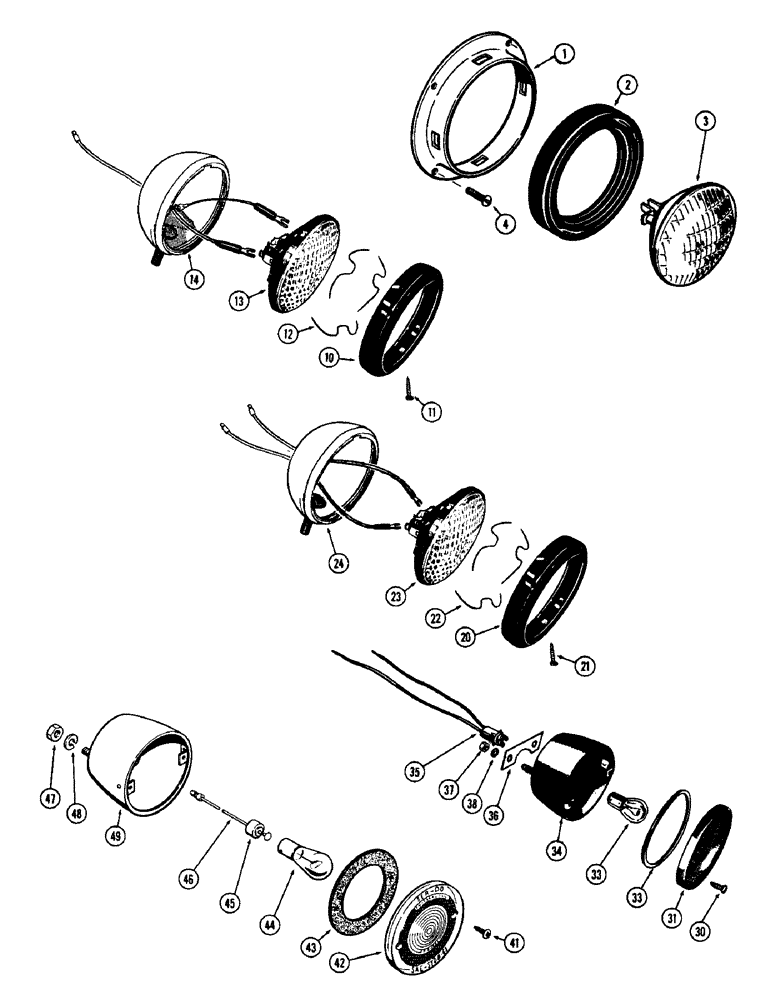

Схема запчастей Case W12 - (068) - FRONT AND REAR LAMP, RUBBER MOUNTED (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

A15932

X

LAMP ASSY. - front & rear (Order following Ref. as needed) (Rubber mounted), Includes: Ref. 1 - 3

4шт.

1

B50296

RING

- mounting, unit bulb (Metal)

1шт.

2

D31441

RETAINER

RING - mounting, unit bulb (Rubber)

1шт.

3

A24572

LAMP

UNIT - sealed bulb, (12 volt)

1шт.

4

75-416

SCREW,Rd, 1/4" - 20 x 1"

- mach., 1/4" x 1" N.C. rd. hd.

16шт.

A10701

LAMP ASSY. - L.H. front & R.H. rear (12 V.) (Metal mgtd.), Includes: Ref. 10 - 14

2шт.

10

B50284

MOLDING - retainer, bulb, front and rear lamp metal mounted

1шт.

11

B50297

SCREW - retainer, molding, front and rear lamp metal mounted

1шт.

12

73767

GROUND CABLE

CLIP - spring, bulb retainer, front and rear lamp metal mounted

3шт.

13

A24572

LAMP

UNIT - sealed bulb (12 volt), front and rear lamp metal mounted

1шт.

14

NSS

NOT SOLD SEPARAT

BODY ASSY. - lamp (Order A10701), front and rear lamp metal mounted

1шт.

A14758

LAMP ASSY. - R.H. ft. & L.H. rear (12 V.) (Metal mtd.), Includes: Ref. 20 - 24

2шт.

20

B50284

MOULDING - retainer, bulb unit, front and rear lamp metal mounted

1шт.

21

B50297

SCREW - retainer, molding, front and rear lamp metal mounted

1шт.

22

73767

GROUND CABLE

CLIP - spring, bulb retainer, front and rear lamp metal mounted

3шт.

23

A24572

LAMP

UNIT - sealed bulb (12 volt), front and rear lamp metal mounted

1шт.

24

NSS

NOT SOLD SEPARAT

BODY ASSY. - lamp (Order A14758), front and rear lamp metal mounted

1шт.

A16734

X

LAMP ASSY. - stop & tail (Order L11000), Includes: Ref. 30 - 34

2шт.

30

B50219

SCREW - lens retaining, stop and tail lamp

2шт.

31

B50336

LENS

- lamp (Red), stop and tail lamp

1шт.

32

B50327

GASKET - lens, stop and tail lamp

1шт.

33

A15084

LAMP

BULB - lamp, stop and tail lamp

1шт.

34

NSS

NOT SOLD SEPARAT

BODY ASSY. - lamp (Order L11000), stop and tail lamp

1шт.

35

A16733

PLUG ASSY. - wiring, lamp, stop and tail lamp

1шт.

36

A16697

STRAP - mounting, tail lamp, stop and tail lamp

2шт.

37

25-104

NUT,1/4"-20, G5

Stop and tail lamp 1/4"-20, G5

4шт.

38

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Stop and tail lamp 1/4"

4шт.

L11000

INTERIOR LIGHT

LAMP ASSY. - stop and tail, Includes: Ref. 41 - 47

2шт.

41

L30432

SCREW,#8 x 5/8"

- lens mounting (#8 x 5/8" Phillip Oval hd.), stop and tail lamp

2шт.

42

L30431

LENS

- lamp (Red), stop and tail lamp

1шт.

43

L30430

GASKET

- lens, stop and tail lamp

1шт.

44

A15084

LAMP

BULB - lamp (GE1683-32CP), stop and tail lamp

1шт.

45

L30428

SPRING - contact, stop and tail lamp

1шт.

46

L30429

WIRE ASSY. - contact, lamp, stop and tail lamp

1шт.

47

25-104

NUT,1/4"-20, G5

Stop and tail lamp 1/4"-20, G5

2шт.

48

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Stop and tail lamp 1/4"

2шт.

Выбрано товаров: 36
