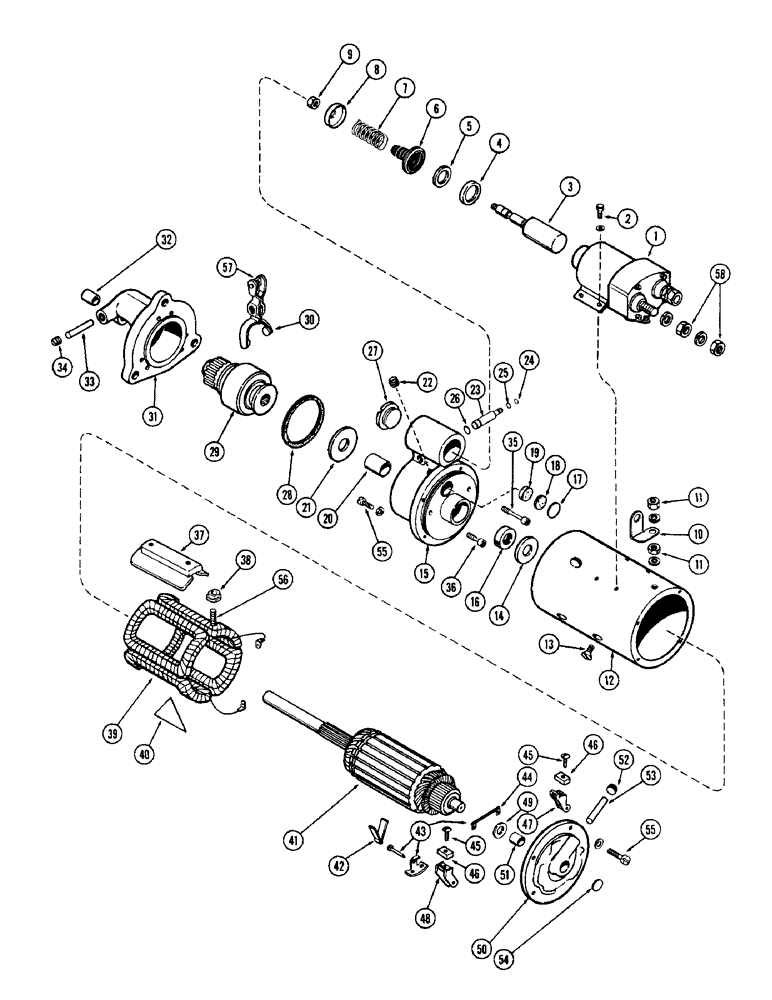

Запчасти Case W12 (066) - STARTING MOTOR (04) - ELECTRICAL SYSTEMS

A15485

STARTING MOTOR

MOTOR ASSY. - starter (Delco #1113370), Includes: Ref. 1 - 58

1шт.

104213A1R

REMAN-STARTER

Remanufactured Starter

1шт.

104213A1C

CORE-STARTER

Return Number

1шт.

1

A42376

SWITCH

SWITCH ASSY. - solenoid (replaces A15358)

1шт.

2

NSS

NOT SOLD SEPARAT

BOLT - hex. hd., solenoid attaching

4шт.

3

R21568

PLUNGER

PLUNGER - solenoid switch

1шт.

4

NSS

NOT SOLD SEPARAT

RETAINER - plunger spring

1шт.

5

NSS

NOT SOLD SEPARAT

WASHER - retainer

1шт.

6

R21576

BOOT

BOOT - plunger

1шт.

7

R21569

X

SPRING - plunger

1шт.

8

NSS

NOT SOLD SEPARAT

RETAINER - spring

1шт.

9

NSS

NOT SOLD SEPARAT

NUT - hex., plunger guide adjusting

1шт.

10

D32480

SPARE PART CONNECTOR - switch

1шт.

11

NSS

NOT SOLD SEPARAT

NUT - hex., connector terminal

2шт.

12

NSS

NOT SOLD SEPARAT

HOUSING - armature (Order A15485)

1шт.

13

NSS

NOT SOLD SEPARAT

SCREW - flat hd. mach., pole shoe

8шт.

14

NSS

NOT SOLD SEPARAT

WASHER - spacer, armature

1шт.

15

R21579

HOUSING

HOUSING ASSY. - shift lever, Includes: Ref. 16 - 22

1шт.

16

R21582

OIL SEAL

SEAL - oil, lever housing

1шт.

17

NSS

NOT SOLD SEPARAT

PLUG - expansion

1шт.

18

NSS

NOT SOLD SEPARAT

GASKET - plug

1шт.

19

NSS

NOT SOLD SEPARAT

PLUG - housing, inner

1шт.

20

NSS

NOT SOLD SEPARAT

BUSHING - lever housing

1шт.

21

NSS

NOT SOLD SEPARAT

WASHER - brake

1шт.

22

NSS

NOT SOLD SEPARAT

PLUG - pipe, slotted hd.

1шт.

23

R21564

X

STUD - shift lever

1шт.

24

A40422

RING

RING - snap, lever stud (Replaces R21575)

1шт.

25

NSS

NOT SOLD SEPARAT

"O" RING - shift stud

1шт.

26

NSS

NOT SOLD SEPARAT

"O" RING - shift stud

1шт.

27

NSS

NOT SOLD SEPARAT

PLUG - shift lever housing

1шт.

28

NSS

NOT SOLD SEPARAT

GASKET - lever hsg. to drive housing

1шт.

29

R21589

DRIVE

DRIVE ASSY. - starter (Bendix)

1шт.

30

D32547

LEVER

LEVER - shift (Replaces R21563 on stock exh.)

1шт.

31

A40283

HOUSING

HOUSING ASSY. - drive end, Includes: Ref. 32 - 34

1шт.

32

A21561

HOSE,0.25" ID x 25.00"

BUSHING - drive housing

1шт.

33

NSS

NOT SOLD SEPARAT

WICK - oil, drive housing

1шт.

34

NSS

NOT SOLD SEPARAT

PLUG - wick, drive housing

1шт.

35

NSS

NOT SOLD SEPARAT

SCREW - attaching, drive end (Long)

1шт.

36

NSS

NOT SOLD SEPARAT

SCREW - attaching, drive end (Short)

1шт.

37

R15115

SHOE

SHOE - pole

4шт.

38

NSS

NOT SOLD SEPARAT

BUSHING - insulated, term. stud

1шт.

39

R21557

COIL ASSY.

COIL - field, starter (Set of 4)

1шт.

40

NSS

NOT SOLD SEPARAT

INSULATOR - starter

1шт.

41

R21556

X

ARMATURE ASSY. - starter (On stock exh. use A40909)

1шт.

42

R15025

SPRING

SPRING - brush

2шт.

43

R15029

BRUSH

REPAIR KIT - brush holder, Includes: Ref. 44

1шт.

44

R15030

ELECTRICAL WIRE

WIRE LEAD - ground, brush

2шт.

45

NSS

NOT SOLD SEPARAT

SCREW - rd. hd. mach., brush attaching

4шт.

46

R15024

BRUSH, COMMUTATOR

BRUSH BRUSH - armature

4шт.

47

R15027

HOLDER

HOLDER - brush, insulated

2шт.

48

A40217

HOLDER

HOLDER - brush, ground

2шт.

49

NSS

NOT SOLD SEPARAT

WASHER - spacer, comm. end

1шт.

50

R21559

FRAME

END ASSY. - commutator, Includes: Ref. 51 - 54

1шт.

51

R15020

BUSHING

BUSHING - commutator end

1шт.

52

NSS

NOT SOLD SEPARAT

PLUG - oil wick

1шт.

53

NSS

NOT SOLD SEPARAT

WICK - oil, commutator end

1шт.

54

NSS

NOT SOLD SEPARAT

PLUG - expansion, comm. end

1шт.

55

NSS

NOT SOLD SEPARAT

SCREW - attaching, comm., Serial Range: end-hsg.

8шт.

56

R15017

STUD

STUD - terminal

1шт.

57

NSS

NOT SOLD SEPARAT

GUIDE - plunger adjusting

1шт.

58

NSS

NOT SOLD SEPARAT

NUT - hex., 1/2" - 13 UNC-2A

4шт.
