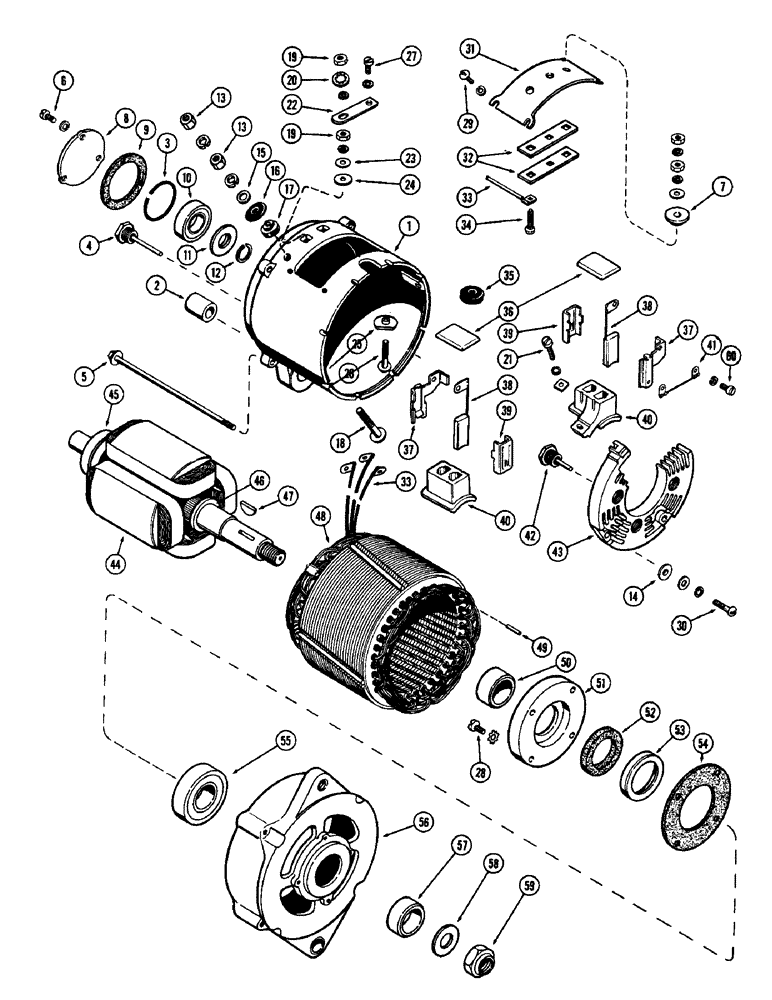

Запчасти Case W12 (064) - ALTERNATOR, (HEAVY DUTY 60 AMP) (04) - ELECTRICAL SYSTEMS

A18417

ALTERNATOR ASSY. - generator (Delco-Remy 1117096), Includes: Ref. 1 - 60

1шт.

1

A25509

FRAME ASSY. - slip ring end, Includes: Ref. 2

1шт.

2

NSS

NOT SOLD SEPARAT

BUSHING - mounting hinge

1шт.

3

NSS

NOT SOLD SEPARAT

CLAMP - bearing retainer

1шт.

4

A25499

DIODE

- negative

3шт.

5

A25513

BOLT - thru, frame connecting

4шт.

6

173-226

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

- mach., #8-32 x 3/8" N.C. rd. hd.

3шт.

7

NSS

NOT SOLD SEPARAT

BUSHING - stator term. insulator

3шт.

8

A25514

COVER - slip ring end frame

1шт.

9

NSS

NOT SOLD SEPARAT

GASKET - slip end cover

1шт.

10

A25476

BEARING

- ball, slip ring end

1шт.

11

A41031

COLLAR - bearing spacer, slip end

1шт.

12

A25501

RING - snap, slip end roller

1шт.

13

129-670

NUT - hex., #12-24 N.C.

4шт.

14

NSS

NOT SOLD SEPARAT

BUSHING - insulating diode mounting

1шт.

15

NSS

NOT SOLD SEPARAT

WASHER - plain, field terminal

2шт.

16

NSS

NOT SOLD SEPARAT

WASHER - insulation, field terminal

2шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - insulator, field term.

2шт.

18

A25511

X

STUD - terminal, field (On stock exh. use A40702)

2шт.

19

NSS

NOT SOLD SEPARAT

NUT - hex., battery terminal

2шт.

20

NSS

NOT SOLD SEPARAT

WASHER - ext. Shakeproof, battery terminal

1шт.

21

NSS

NOT SOLD SEPARAT

SCREW - attaching, brush holder

2шт.

22

A25487

CONNECTOR - terminal ground

1шт.

23

NSS

NOT SOLD SEPARAT

WASHER - plain, battery terminal

1шт.

24

NSS

NOT SOLD SEPARAT

BUSHING - insulating, battery term. (Round)

1шт.

25

NSS

NOT SOLD SEPARAT

BUSHING - insulating, battery term. (Anti-round)

1шт.

26

A25486

STUD - terminal battery

1шт.

27

NSS

NOT SOLD SEPARAT

SCREW - mach., connector

1шт.

28

NSS

NOT SOLD SEPARAT

SCREW - attach., bearing retainer

4шт.

29

NSS

NOT SOLD SEPARAT

SCREW - mach., stator term. plate

4шт.

30

NSS

NOT SOLD SEPARAT

SCREW - heat sink mounting

2шт.

31

NSS

NOT SOLD SEPARAT

PLATE - cover, stator terminal

1шт.

32

NSS

NOT SOLD SEPARAT

INSULATOR - stator term. plate

2шт.

33

A25505

LEAD ASSY. - stator terminal

6шт.

34

A25512

STUD - terminal, stator

3шт.

35

NSS

NOT SOLD SEPARAT

GROMMET - stator leads

1шт.

36

A25503

COVER - brush holder

2шт.

37

A25504

HOLDER - back & spring

4шт.

38

A25488

BRUSH - contract (On stock exh. use A40734)

4шт.

39

NSS

NOT SOLD SEPARAT

INSERT - brush holder

4шт.

40

A25502

HOLDER - brush

2шт.

41

NSS

NOT SOLD SEPARAT

LEAD ASSY. - brush connector

1шт.

42

A25498

DIODE - positive

3шт.

43

A25510

SINK - heat

1шт.

44

A25508

ROTOR ASSY. - alternator, Includes: Ref. 45 and 46

1шт.

45

A25981

RING - slip, rotor (Replaces A25506)

1шт.

46

NSS

NOT SOLD SEPARAT

RING - retainer, rotor

1шт.

47

126-115

WOODRUFF KEY,#8, 5/32" x 3/4", HT

Rotor shaft #8, 5/32" x 3/4", HT

1шт.

48

A25518

STATOR ASSY. - alternator (Incl. ref. 35)

1шт.

49

NSS

NOT SOLD SEPARAT

PIN - dowel, stator

1шт.

50

A25515

COLLAR - spacer, drive end bearing

1шт.

51

A25517

PLATE - retainer, drive end brg.

1шт.

52

NSS

NOT SOLD SEPARAT

WASHER - bearing, drive end (Felt)

1шт.

53

A25475

RETAINER - felt washer

1шт.

54

A25492

GASKET - bearing retainer plate

1шт.

55

A25477

BEARING, BALL

BEARING - ball, drive end

1шт.

56

A25507

FRAME ASSY. - drive end, w/brg.

1шт.

57

A25516

COLLAR - spacer, drive end

1шт.

58

NSS

NOT SOLD SEPARAT

WASHER - rotor shaft nut

1шт.

59

A25995

NUT

- rotor shaft drive end (Repl. A25474)

1шт.

60

NSS

NOT SOLD SEPARAT

SCREW - brush lead attaching

4шт.

A40945

CAPACITOR - alternator (Not illustrated)

1шт.
