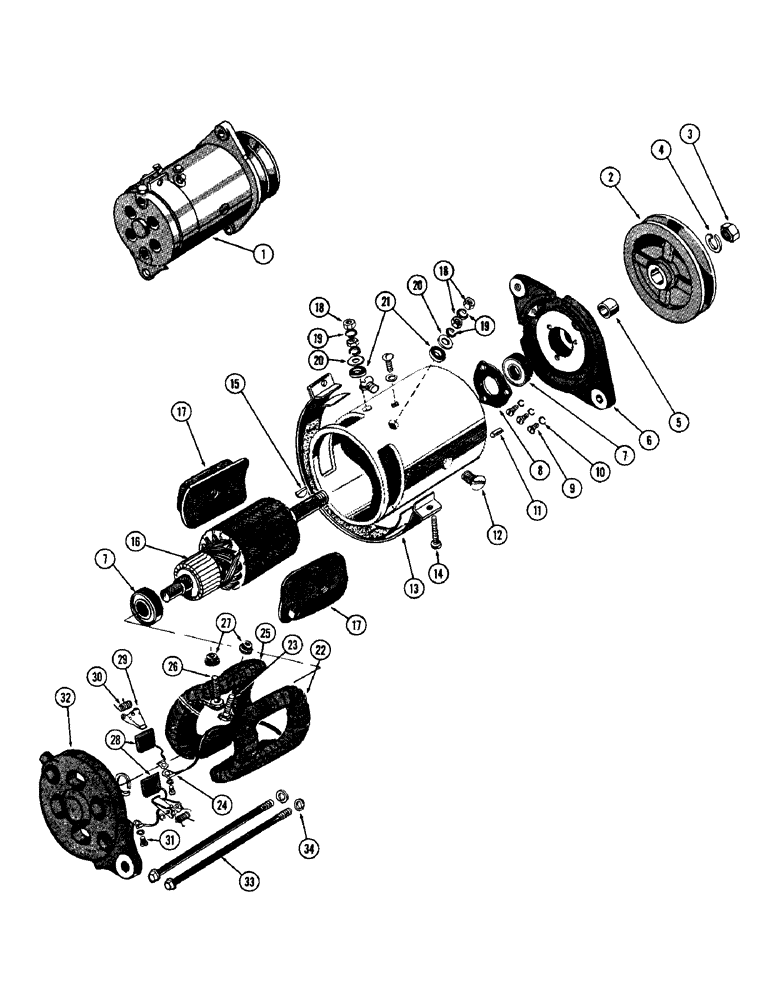

Запчасти Case W12 (062) - GENERATOR (04) - ELECTRICAL SYSTEMS

1

A22682

GENERATOR

ASSY. - eng. (Delco #1105220), Includes: Ref. 2 - 34

1шт.

1

A21125

X

GENERATOR ASSY. - eng. (Delco #1105207) (Order A22682 generator), Includes: Ref. 2 - 34

1шт.

2

A21126

PULLEY

- drive

1шт.

3

A25546

NUT

- pulley retainer

1шт.

4

NSS

NOT SOLD SEPARAT

WASHER - lock, shaft nut

1шт.

5

R16166

BUSHING

COLLAR - drive end housing

1шт.

6

A25446

HOUSING - drive end (use w/A22682 gen.)

1шт.

6

R15098

HOUSING - drive end (use w/A21125 gen.)

1шт.

7

R18193

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - ball, armature sft. (use w/A22682)

1шт.

7

R15094

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - ball, armature sft. (use w/A21125)

1шт.

8

R15101

PLATE

- retainer, frt. ball bearing

1шт.

9

NSS

NOT SOLD SEPARAT

SCREW - retainer plate

3шт.

10

NSS

NOT SOLD SEPARAT

WASHER - lock, plate screw

3шт.

11

NSS

NOT SOLD SEPARAT

PIN - dowel, locating

2шт.

12

NSS

NOT SOLD SEPARAT

SCREW - pole attaching

2шт.

13

R15096

BAND ASSY. - cover, body, Includes: Ref. 14

1шт.

14

NSS

NOT SOLD SEPARAT

SCREW - band securing

1шт.

15

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

Pulley to armature shaft #5, 1/8" x 5/8", HT

1шт.

16

A40628

ARMATURE ASSY. - generator

1шт.

17

R15075

SHOE - pole

2шт.

18

NSS

NOT SOLD SEPARAT

NUT - hex., terminal stud

4шт.

19

NSS

NOT SOLD SEPARAT

WASHER - lock, terminal stud

4шт.

20

NSS

NOT SOLD SEPARAT

WASHER - plain, terminal stud

2шт.

21

NSS

NOT SOLD SEPARAT

WASHER - insulator, term. stud

2шт.

22

R15083

COIL

ASSY. - field, R.H., Includes: Ref. 23 and 24

1шт.

23

R15084

X

STUD - terminal, R.H. coil

1шт.

24

NSS

NOT SOLD SEPARAT

CLIP -, Serial Range: terminal-brush

1шт.

25

R15081

COIL ASSY - field, L.H., Includes: Ref. 26

1шт.

26

R15084

X

STUD - terminal, L.H. coil

1шт.

27

A40702

STUD

BUSHING - terminal studs

2шт.

28

R4286

BRUSH, COMMUTATOR

BRUSH - main

2шт.

29

R15090

ARM

- main brush

2шт.

30

R15089

SPRING - brush arm

2шт.

31

NSS

NOT SOLD SEPARAT

SCREW - brush wire

2шт.

32

R15086

FUNNEL

HOUSING - commutator end

1шт.

33

R15106

BOLT

- thru, generator

2шт.

34

NSS

NOT SOLD SEPARAT

WASHER - lock, thru bolt

2шт.
