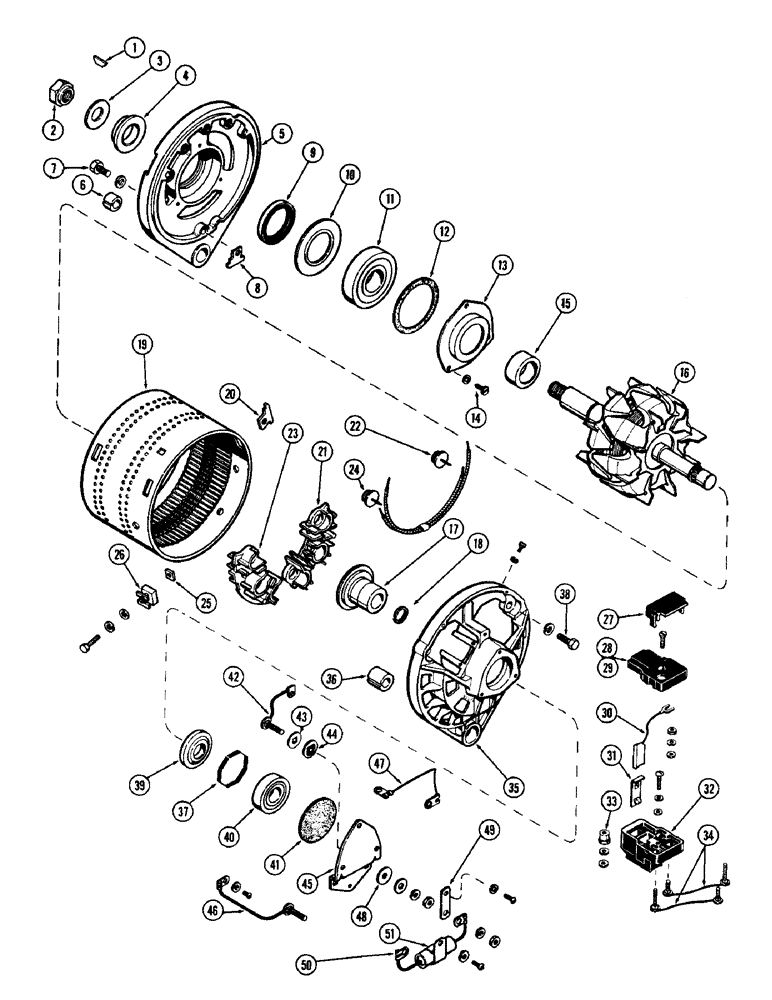

Запчасти Case W12 (060) - ALTERNATOR, (STANDARD 45 AMP) (04) - ELECTRICAL SYSTEMS

A56095

ALTERNATOR

ASSY - generator (24 volt), Includes: Ref. 1 - 51

1шт.

1

126-115

WOODRUFF KEY,#8, 5/32" x 3/4", HT

Drive end #8, 5/32" x 3/4", HT

1шт.

2

A25995

NUT

- retainer, drive pulley

1шт.

3

NSS

NOT SOLD SEPARAT

WASHER - plain, retainer nut

1шт.

4

A25989

COLLAR - outside, brg. end spacer

1шт.

5

A25983

FRAME ASSY - drive end, Includes: Ref. 6

1шт.

6

NSS

NOT SOLD SEPARAT

BUSHING - mounting hinge

1шт.

7

NSS

NOT SOLD SEPARAT

SCREW - attaching, drive end

1шт.

8

NSS

NOT SOLD SEPARAT

NUT - attaching screw

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER - felt, drive end

1шт.

10

A25988

RETAINER

- bearing

1шт.

11

A25477

BEARING, BALL

BEARING - ball, drive end

1шт.

12

A25987

GASKET

- bearing retainer

1шт.

13

A25986

LARGE PLATE

PLATE - bearing retainer

1шт.

14

NSS

NOT SOLD SEPARAT

SCREW - retainer mounting

3шт.

15

NSS

NOT SOLD SEPARAT

COLLAR - inside, bearing

1шт.

16

A25980

ROTOR

ASSY - alternator, Includes: Ref. 17 and 18

1шт.

17

A25981

RING - slip, rotor

1шт.

18

A25501

RING - snap, rotor slip ring

1шт.

19

A25982

STATOR ASSY - alternator

1шт.

20

NSS

NOT SOLD SEPARAT

NUT - frame attaching

1шт.

21

A25997

BRACKET

SINK ASSY - negative heat, Includes: Ref. 22

1шт.

22

A25985

DIODE - negative

3шт.

23

A25996

BRACKET

SINK ASSY - positive heat, Includes: Ref. 24

1шт.

24

A25984

DIODE - positive

3шт.

25

NSS

NOT SOLD SEPARAT

NUT - attaching, heat sink

1шт.

26

NSS

NOT SOLD SEPARAT

INSULATOR - heat sink

1шт.

27

NSS

NOT SOLD SEPARAT

COVER - shield, terminal

1шт.

28

NSS

NOT SOLD SEPARAT

CAP - brush holder, F2 terminal

1шт.

29

NSS

NOT SOLD SEPARAT

CAP - brush holder, F1 terminal

1шт.

30

A25991

BRUSH - alternator

2шт.

31

A25559

SPRING - support, brush

1шт.

32

A25992

NOZZLE HOLDER

HOLDER - brush

2шт.

33

NSS

NOT SOLD SEPARAT

NUT - field terminal

1шт.

34

A25993

TERMINAL - field & lead

2шт.

35

A40804

FRAME ASSY - slip ring, Includes: Ref. 36 and 37

1шт.

36

NSS

NOT SOLD SEPARAT

BUSHING - mounting hinge

1шт.

37

NSS

NOT SOLD SEPARAT

CLAMP - bearing retainer

1шт.

38

NSS

NOT SOLD SEPARAT

SCREW - attaching, slip ring end

1шт.

39

NSS

NOT SOLD SEPARAT

COLLAR - slip ring end

1шт.

40

A25476

BEARING

- ball, slip ring end

1шт.

41

NSS

NOT SOLD SEPARAT

GASKET - bearing retainer plate

1шт.

42

A25998

TERMINAL - negative, battery

1шт.

43

NSS

NOT SOLD SEPARAT

WASHER - battery to terminal (sq. neck)

1шт.

44

NSS

NOT SOLD SEPARAT

BUSHING - insulated, terminal

1шт.

45

A25994

PLATE - end, bearing retaining

1шт.

46

A25999

TERMINAL - positive, battery

1шт.

47

NSS

NOT SOLD SEPARAT

LEAD - field terminal

1шт.

48

NSS

NOT SOLD SEPARAT

WASHER - plain, battery terminal

1шт.

49

NSS

NOT SOLD SEPARAT

STRAP - ground

1шт.

50

A40946

TANK

CAPACITOR - alternator

1шт.

51

NSS

NOT SOLD SEPARAT

BRACKET - capacitor

1шт.
