Запчасти Case W12 (058) - AUXILIARY OIL GAUGE PANEL, AUXILIARY HOUR METER PANEL (04) - ELECTRICAL SYSTEMS

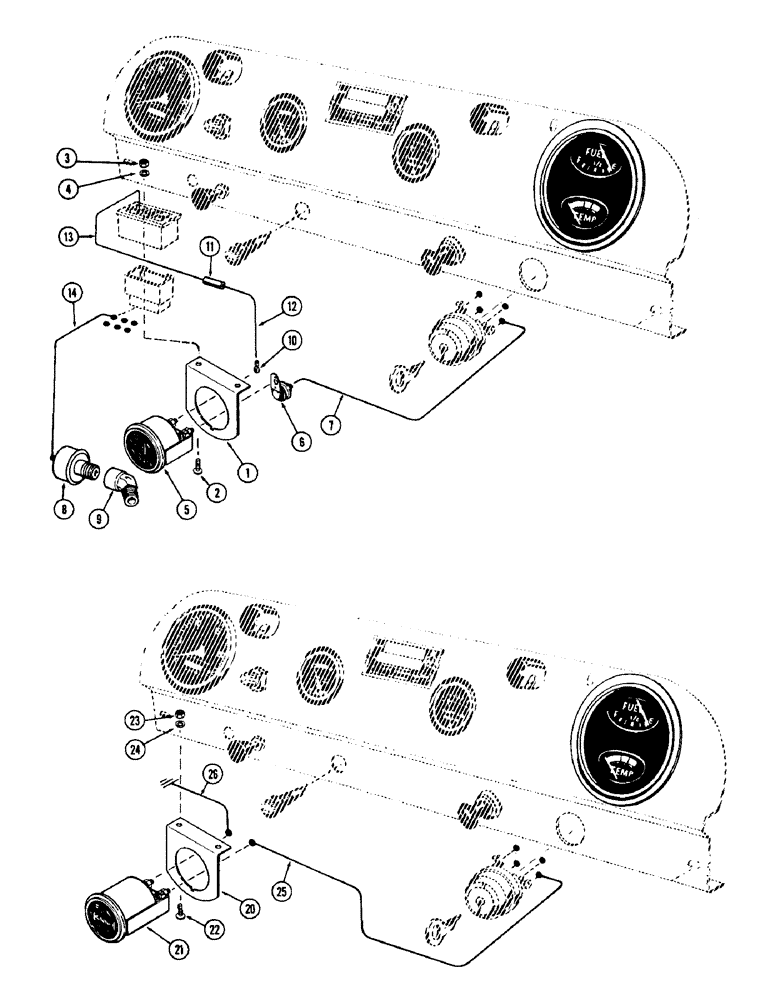

Схема запчастей Case W12 - (058) - AUXILIARY OIL GAUGE PANEL, AUXILIARY HOUR METER PANEL (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

L80106M

ATTACHMENT - oil pressure gauge (Mach. item), Includes: Ref. 1 - 10

1шт.

1

L10131

BRACKET - panel oil gauge

1шт.

2

173-97

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- mach., #10-24 x 1/2" N.C. rd. hd.

2шт.

3

129-7

NUT,Hex, #10 - 24

- hex., N.C. #10-24

2шт.

4

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

5

A19346

ELECTRICAL GAUGE

GAUGE ASSY. - eng. oil pressure

1шт.

6

A19349

RESISTOR

ASSY. - oil gauge (75, Serial Range: ohms-24V-12V)

1шт.

7

A13751

WIRE - resistor to ign. swt. "I" term (Red 3")

1шт.

8

A35031

SENDER UNIT

UNIT ASSY. - sending, oil pressure

1шт.

9

221-1401

ELBOW,45º, 1/8"-27, NPT

- street, 1/8" P.T. x 45 degrees

1шт.

10

L10286

X

EYELET - terminal, wire

1шт.

11

A27213

CONNECTOR - two wire

1шт.

12

NSS

NOT SOLD SEPARAT

WIRE - connector to oil gauge eyelet

1шт.

13

A13747

WIRE - plug assy. to connector (Red 14")

1шт.

14

NSS

NOT SOLD SEPARAT

WIRE - socket assy. to oil press. sender (Red 82")

1шт.

L80107M

ATTACHMENT - hour meter (Mach. item)

1шт.

20

L10293

BRACKET - panel hour meter, Includes: Ref. 20 - 26, auxiliary hour meter panel

1шт.

21

A19521

X

METER ASSY. - gauge, hour (24 volt), auxiliary hour meter panel

1шт.

22

173-97

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- mach., #10-24 x 1/2" N.C. rd. hd., auxiliary hour meter panel

2шт.

23

129-7

NUT,Hex, #10 - 24

- hex., N.C., auxiliary hour meter panel #10-24

2шт.

24

92-3

LOCK WASHER,#10

WASHER, LOCK, , Auxiliary hour meter panel #10

2шт.

25

NSS

NOT SOLD SEPARAT

WIRE - meter to ign. swt. "I" term. (Red 7"), auxiliary hour meter panel

1шт.

26

NSS

NOT SOLD SEPARAT

WIRE - meter to ground (Black 8-1/2"), auxiliary hour meter panel

1шт.

Выбрано товаров: 23
