Запчасти Case W12 (056) - CHASSIS ELECTRICAL W/HEAVY DUTY ALTERNATOR (CONT), (HEAVY DUTY 60 (04) - ELECTRICAL SYSTEMS

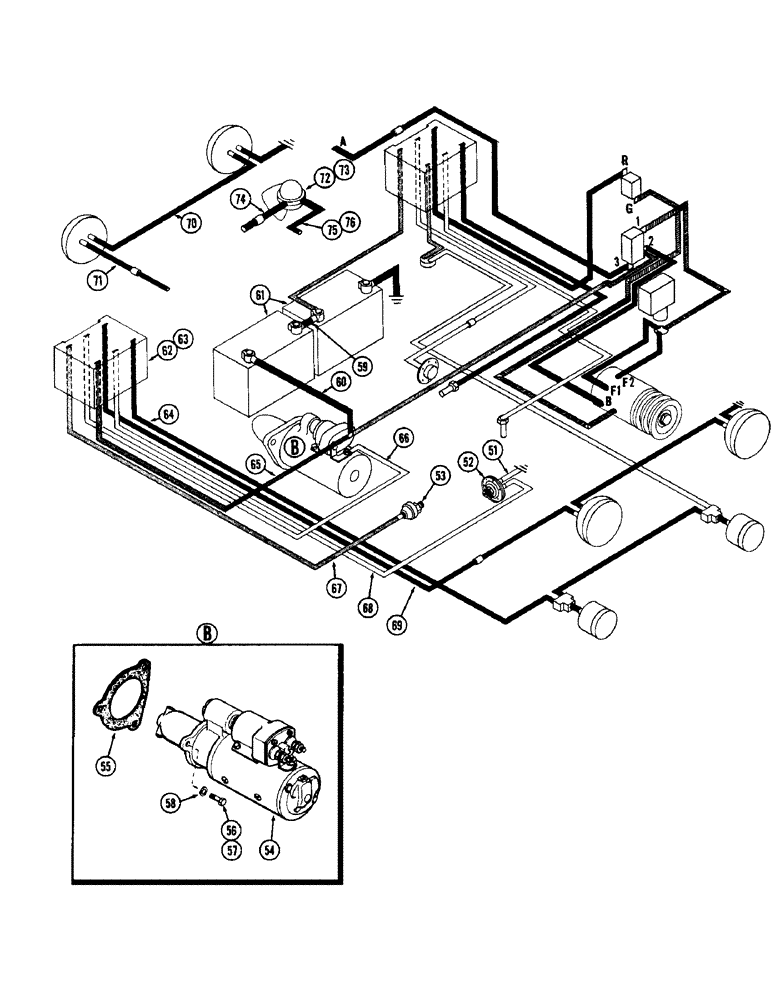

Схема запчастей Case W12 - (056) - CHASSIS ELECTRICAL W/HEAVY DUTY ALTERNATOR (CONT), (HEAVY DUTY 60 (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

51

A26893

WIRE - vacuum switch to ground (Black 6-1/2")

1шт.

52

A14739

SWITCH ASSY. - vacuum, air cleaner

1шт.

53

A35031

SENDER UNIT

UNIT ASSY. - sending, eng. oil pressure

1шт.

54

A15485

STARTING MOTOR

MOTOR ASSY. - starter (Repairs, figure 66)

1шт.

55

A27933

GASKET

- starter motor mounting

1шт.

56

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

57

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex. hd., 1/2" x 2-1/2" N.C.

1шт.

58

92-8

LOCK WASHER,1/2"

3шт.

59

A7440

CABLE

- cross, Serial Range: battery-battery

1шт.

60

A15514

CABLE - battery to starter motor

1шт.

61

A14759

X

BATTERY - dry-charged (12 volt)

2шт.

62

A14741

SOCKET ASSY. - chassis wiring L.H., Includes: Ref. 63 - 69

1шт.

63

A13777

BLOCK - socket wiring

1шт.

64

NSS

NOT SOLD SEPARAT

WIRE - socket to tail light (Black 122")

1шт.

65

NSS

NOT SOLD SEPARAT

WIRE - socket to starter sol (Red 85")

1шт.

66

NSS

NOT SOLD SEPARAT

WIRE - socket to starter term. (White 86")

1шт.

67

NSS

NOT SOLD SEPARAT

WIRE - socket to eng. oil sender (Red 82")

1шт.

68

NSS

NOT SOLD SEPARAT

WIRE - socket to vacuum switch (White 128")

1шт.

69

NSS

NOT SOLD SEPARAT

WIRE - socket to rear lamp conn. (Black 140")

1шт.

70

A16365

WIRE - cross, front lamp to lamp (Black 38")

1шт.

71

A16366

WIRE - left front lamp to conn. (Black 24")

1шт.

72

A19581

HORN

ASSY. - warning sound (Repairs, figure 72)

1шт.

73

A9974NS

HORN ASSY. - warning (Order A19581) (Rep., figure 72)

1шт.

74

A27340

ELECTRICAL WIRE

WIRE - horn to strg. column conn. (Black 13")

1шт.

75

A13791

WIRE - horn to instrument panel conn. (Black 40") (Use w/A9974 horn)

1шт.

76

A56428

WIRE - horn to instrument panel conn. (Black 40") (Use w/A19581 horn)

1шт.

Выбрано товаров: 26
