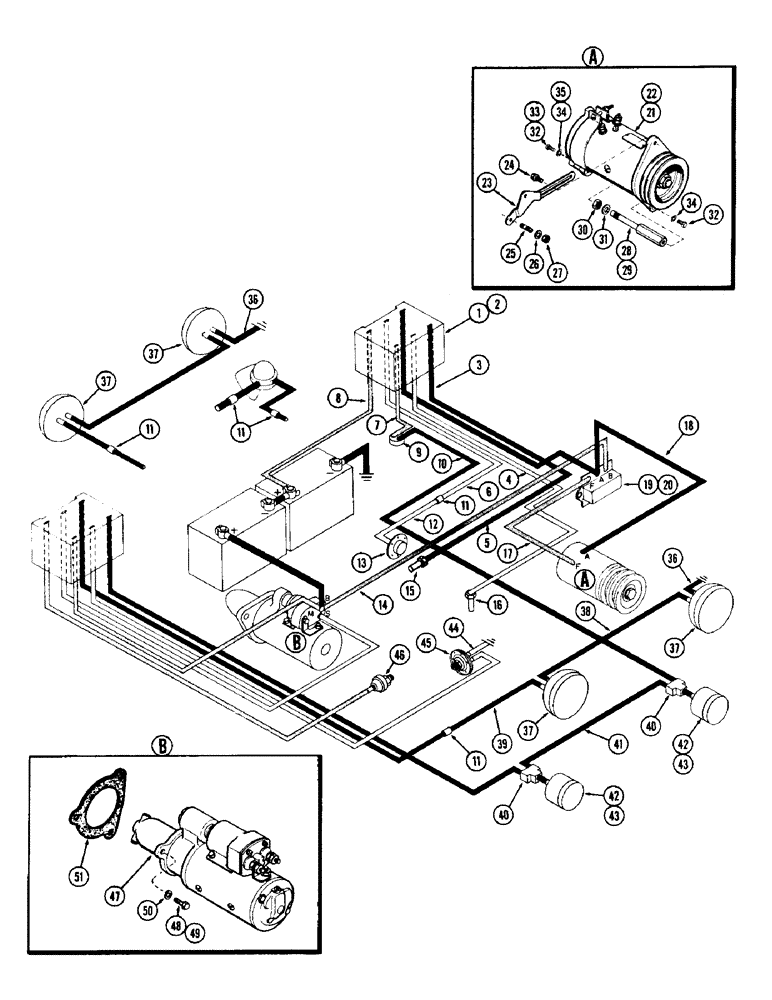

Запчасти Case W12 (050) - CHASSIS ELECTRICAL W/GENERATOR (04) - ELECTRICAL SYSTEMS

1

A14740

SOCKET ASSY. - chassis wiring R.H., Includes: Ref. 2 - 8

1шт.

2

A13777

BLOCK - socket wiring

1шт.

3

NSS

NOT SOLD SEPARAT

WIRE - socket to regulator "A" term. (Black 29")

1шт.

4

NSS

NOT SOLD SEPARAT

WIRE - socket to eng. temp. unit (White 133")

1шт.

5

NSS

NOT SOLD SEPARAT

WIRE - socket to conv. sending unit (Black 65")

1шт.

6

NSS

NOT SOLD SEPARAT

WIRE - socket to fuel sending unit (White 67")

1шт.

7

NSS

NOT SOLD SEPARAT

WIRE - socket to stop light switch (Red 43")

1шт.

8

NSS

NOT SOLD SEPARAT

WIRE - socket to battery positive term. (Red 42")

1шт.

9

A12491

SWITCH

ASSY - brake, stop light

1шт.

10

A14754

WIRE - stop light swt. to stop light (White 111")

1шт.

11

A27213

CONNECTOR - two wire

5шт.

12

A13793

WIRE - fuel sender to connector (White 10")

1шт.

13

A14353

UNIT ASSY. - fuel sender

1шт.

14

A14781

WIRE - starter sol. to reg. "B" term (Red 45")

1шт.

15

A13795

SENDER UNIT

UNIT ASSY. - sending, converter temperature

1шт.

16

A21462

SENDER UNIT

UNIT ASSY. - sending, engine temp. (Repl. A13796)

1шт.

17

A14763

WIRE - reg. "F" term. to gen. "F" term (Red 52")

1шт.

18

A14762

WIRE - reg. "A" term. to gen. "A" term. (Black 55")

1шт.

19

A14760

X

REGULATOR ASSY. - voltage

1шт.

A14761

PLATE - mounting, regulator (Not illustrated)

1шт.

20

14-416

SCREW,Hex, 1/4" - 28 x 1", Gr 5

BOLT, Hex, 1/4"-28 x 1, G5, Full Thd

4шт.

21

A22682

GENERATOR

ASSY. - eng. (Repairs, figure 62)

1шт.

22

A21125

X

GENERATOR ASSY. - eng. (Order A22682) (Rep. figure 62)

1шт.

23

A20750

STRAP - adjusting, generator

1шт.

24

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

25

A7391

STUD

- adj. strap to water pump

1шт.

26

193-46

LOCK WASHER,Ext-Int Tooth, 3/8"

WASHER - lock, 3/8" int.-ext. Shakeproof

1шт.

27

25-116

NUT,Hex, 3/8"-24, G5

- hex., 3/8" N.C.

1шт.

28

A21101

CARRIER - generator (Use w/A21125 gen.)

1шт.

29

A22683

CARRIER

- generator (Use w/A22682 gen.)

1шт.

30

25-1112

NUT,3/4"-16, G5

- hex., 3/4" N.F.

1шт.

31

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

32

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- hex. hd., 3/8" x 1-1/4" N.F.

2шт.

33

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

- hex. hd., 1/2" x 1-1/2" N.F. (Use w/A22683)

1шт.

34

92-6

LOCK WASHER,3/8"

2шт.

35

92-8

LOCK WASHER,1/2"

use w/ref. 33 1/2"

1шт.

36

A15941

ELECTRICAL WIRE

WIRE - right frt. & rear lamp to ground (Black 5")

2шт.

37

A15932

X

LAMP ASSY. - front & rear (Rubber mounted, used on late model loaders) (Repairs, figure 68)

4шт.

38

A16367

ELECTRICAL WIRE

WIRE - cross, rear lamp (Black 20")

1шт.

39

A15948

ELECTRICAL WIRE

WIRE - left rear lamp to conn. (Black 46")

1шт.

40

A8210

CONNECTOR, ELEC

CONNECTOR - three wire

2шт.

41

A13252

ELECTRICAL WIRE

WIRE - cross, stop & tail lamp (Black 18")

1шт.

42

L11000

INTERIOR LIGHT

LAMP ASSY. - stop and tail (Repairs, figure 68)

2шт.

43

A16734NS

LAMP ASSY. - stop & tail (Order L11000) (Rep., figure 68)

2шт.

44

A26893

WIRE - vacuum swt. to ground (Black 6-1/2")

1шт.

45

A14739

SWITCH ASSY. - vacuum, air cleaner warning

1шт.

46

A13794

TRANSMITTER

UNIT ASSY. - sending, eng. oil pressure

1шт.

47

A15485

STARTING MOTOR

MOTOR ASSY. - starter (Repairs, figure 66)

1шт.

48

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

49

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex. hd., 1/2" x 2-1/2" N.C.

1шт.

50

92-8

LOCK WASHER,1/2"

3шт.

51

A27933

GASKET

- mounting, starter motor

1шт.
