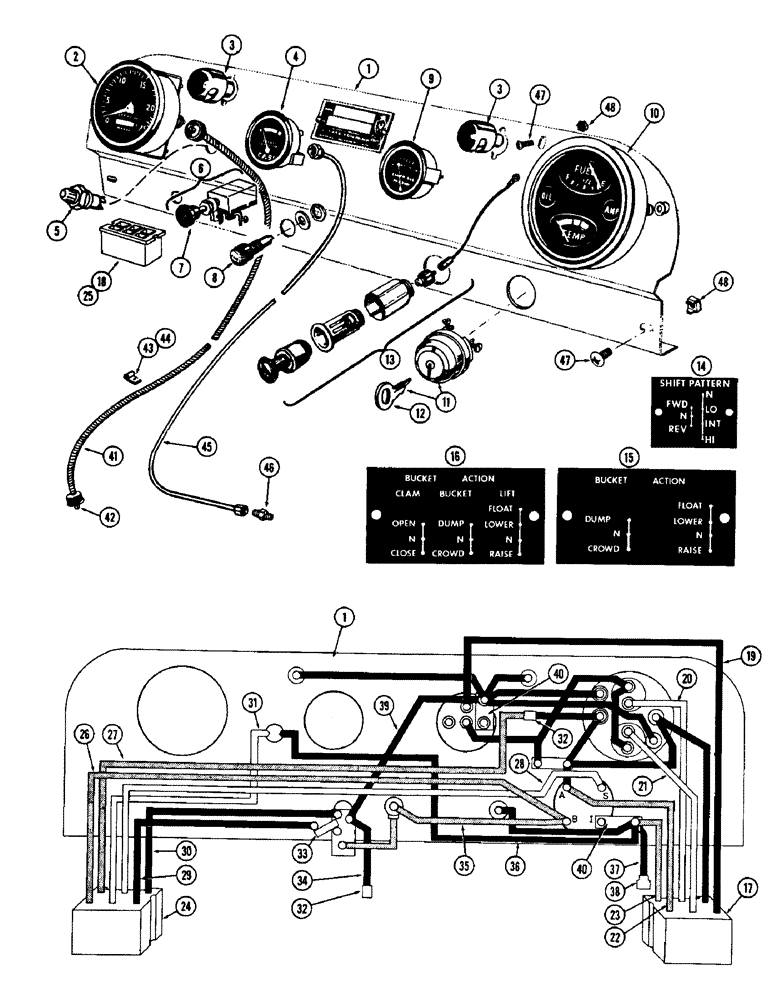

Запчасти Case W12 (048) - INSTRUMENT PANEL W/GENERATOR OR HEAVY DUTY ALTERNATOR (04) - ELECTRICAL SYSTEMS

A14728

PANEL ASSY. - instrument, Includes: Ref. 1 - 40

1шт.

1

A14729

PANEL - instrument

1шт.

2

A11190

TACHOMETER

ASSY. - engine

1шт.

3

A14737

LAMP

ASSY. - dash (Repairs, figure 70)

2шт.

4

A56447

ELECTRICAL GAUGE

GAUGE ASSY. - conv. oil press (Repl. A18504 & A12431)

1шт.

5

A14736

LAMP ASSY. - air cleaner warning (Repairs figure 70)

1шт.

6

A20201

SWITCH

ASSY. - lighting, Includes: Ref. 7

1шт.

7

A7817

KNOB

- light switch

1шт.

8

A8006

NOZZLE HOLDER

HOLDER ASSY. - fuse (Repairs, figure 70)

1шт.

9

A13756

GAUGE

ASSY. - converter oil temperature

1шт.

10

A14730

INSTRUMENT CLUSTER

CLUSTER ASSY. - instrument (Repairs, figure 70)

1шт.

11

A11373

SWITCH

- ignition & starter (w/keys), Includes: Ref. 12

1шт.

12

A20346

KEY

- ignition switch

1шт.

13

G44915

X

LIGHTER - cigarette (Repairs, figure 70)

1шт.

14

A18405

PLATE - shift pattern

1шт.

15

A19277

PLATE ASSY.

PLATE - bucket action (w/2 spool valve)

1шт.

16

A18406

PLATE ASSY.

PLATE - bucket action (w/3 spool valve)

1шт.

17

A14901

PLUG ASSY - panel wiring R.H., Includes: Ref. 18 - 23

1шт.

18

A13742

BLOCK - plug wiring

1шт.

19

A13746

WIRE - plug to conv. temp. ga. (Black 12-1/4")

1шт.

20

A13745

WIRE - plug to cluster fuel term. (White 7")

1шт.

21

A13744

WIRE - plug to cluster temp. term. (White 5-1/4")

1шт.

22

A13743

WIRE - plug to ign. swt. "A" term. (Red 7")

1шт.

23

A13743

WIRE - plug to ign. swt. elect. term. (Red 7")

1шт.

24

A14731

PLUG ASSY. - panel wiring L.H., Includes: Ref. 25 - 40

1шт.

25

A13742

BLOCK - wiring plug

1шт.

26

A13748

WIRE - plug to ign. swt. "B" term. (Red 23-1/2")

1шт.

27

A13747

WIRE - plug to cluster wire conn. (Red 14")

1шт.

28

A13749

WIRE - plug to ign. swt. "S" term (White 24")

1шт.

29

A13750

WIRE - plug to light swt. resistor (Black 12")

1шт.

30

A13750

WIRE - plug to light swt. term. (Black 12")

1шт.

31

A14732

WIRE - plug to warning light (White 11")

1шт.

32

A27213

CONNECTOR - two wire

2шт.

33

A14900

RESISTOR

- electrical

1шт.

34

A13753

WIRE - lite swt. to front light wire conn. (Black 3")

1шт.

35

A13752

WIRE - fuse to ign. swt. "B" term (Red 13")

1шт.

36

A14735

WIRE - warning lite to ign. term (Black 17")

1шт.

37

A13753

WIRE - ign. swt. to horn & wiper conn. (Black 3")

1шт.

38

A8210

CONNECTOR, ELEC

CONNECTOR - three wire

1шт.

39

A13754

ELECTRICAL WIRE

WIRE - light swt. to conv. temp. ga. (Black 9")

1шт.

40

A9348

BLOCK - eletrical terminal

2шт.

41

A12430

HOUSING

DRIVE ASSY. - tachometer, Includes: Ref. 42

1шт.

42

A13200

CABLE

- drive, tachometer

1шт.

43

A26696

NO LONGER SERVICED

CLIP - retainer, tachometer drive

1шт.

44

A27033

CLIP - retainer, tachometer drive

2шт.

45

A8216

TUBE

- converter oil pressure

1шт.

46

222-20

CONNECTOR, ELEC,3/8"-24 x 1/8" NPTF

CONNECTOR - 1/8" tube x 1/8" P.T.

1шт.

47

175-428

SCREW,Phil Truss Hd, 1/4" - 20 x 5/8"

- mach. 1/4" x 5/8" N.C. Phillips hd., Includes: Ref. 48

4шт.

48

131-118

NUT - speed, 1/4" - 20 Tinnerman

4шт.
