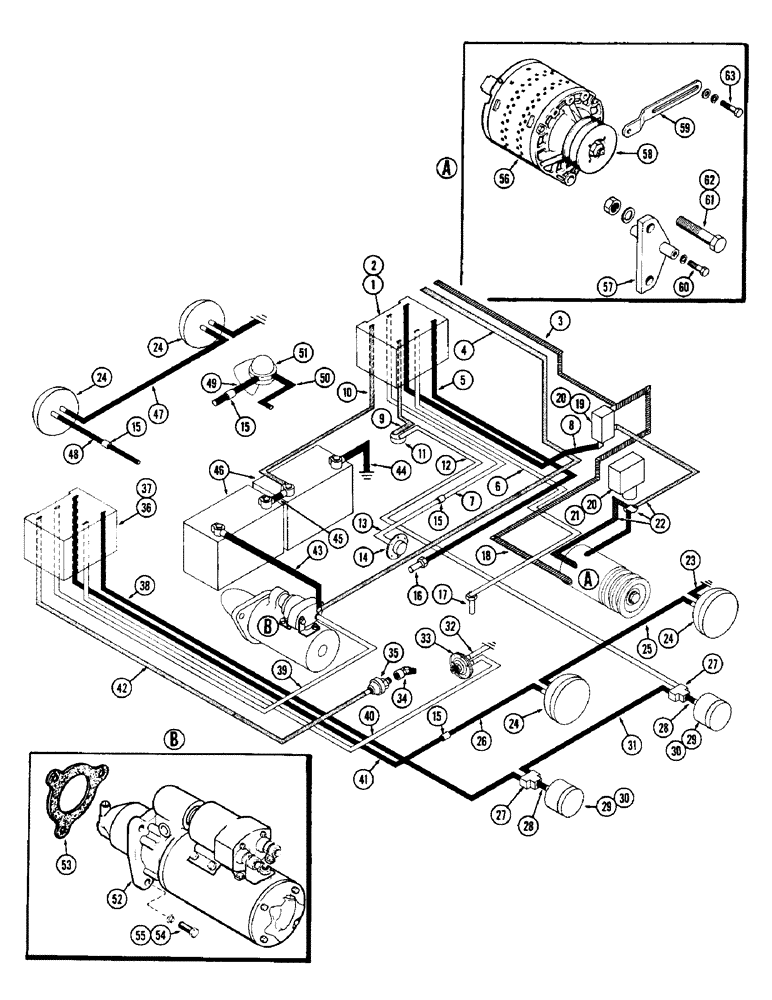

Запчасти Case W12 (046) - CHASSIS ELECTRICAL W/STD. ALTERNATOR, (STANDARD 45 AMP) (04) - ELECTRICAL SYSTEMS

1

L10128

SOCKET ASSY. - wiring, chassis R.H., Includes: Ref. 2 - 10

1шт.

2

A13777

BLOCK - socket, wiring

1шт.

3

NSS

NOT SOLD SEPARAT

WIRE - relay term. #1 to amm. (Orange 87")

1шт.

4

NSS

NOT SOLD SEPARAT

WIRE - starter sol. to amm. (Red 117")

1шт.

5

NSS

NOT SOLD SEPARAT

WIRE - socket to conv. temp. unit (Black 65")

1шт.

6

NSS

NOT SOLD SEPARAT

WIRE - socket to eng. temp. unit (White 133")

1шт.

7

NSS

NOT SOLD SEPARAT

WIRE - socket to fuel sending unit (White 67")

1шт.

8

NSS

NOT SOLD SEPARAT

WIRE - socket to relay #3 term. (Black 91")

1шт.

9

NSS

NOT SOLD SEPARAT

WIRE - socket to stop lite swt. (Red 43")

1шт.

10

NSS

NOT SOLD SEPARAT

WIRE - socket to batt. positive term. (Red 47")

1шт.

11

A12491

SWITCH

ASSY - brake, stop light

1шт.

12

A14754

WIRE - stop swt. to stop light (White 111")

1шт.

13

A13793

WIRE - fuel sender to connector (White 10")

1шт.

14

A15997

SENDER UNIT

UNIT ASSY. - fuel sending

1шт.

15

A27213

CONNECTOR - two wire

4шт.

16

A13795

SENDER UNIT

UNIT ASSY. - converter temp. sending

1шт.

17

A21462

SENDER UNIT

UNIT ASSY. - engine temp. sending (Replacs A13796)

1шт.

18

L10075

WIRE - #1 term to altern. "B" term (Orange 87")

1шт.

19

L11509

RELAY

ASSY. - field (Replaces A18431)

1шт.

20

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

5шт.

21

A55703

REGULATOR

ASSY. - voltage

1шт.

22

L10074

PLUG

ASSY. - wiring

1шт.

23

A15941

ELECTRICAL WIRE

WIRE - front & rear lamp to ground (Black 6")

2шт.

24

A15932

X

LAMP ASSY. - head, front & rear (Repair, figure 68)

4шт.

25

A16367

ELECTRICAL WIRE

WIRE - cross, rear head lamp (Black 20")

1шт.

26

A15948

ELECTRICAL WIRE

WIRE - left rear lamp to conn. (Black 46")

1шт.

27

A8210

CONNECTOR, ELEC

CONNECTOR - three wire

2шт.

28

A16733

PLUG ASSY. - wiring, stop lite

2шт.

29

L11000

INTERIOR LIGHT

LIGHT ASSY. - tail and stop (Repairs, figure 68)

2шт.

30

A16734

X

LIGHT ASSY. - tail & stop (Order L11000) (Rep., figure 68)

2шт.

31

A13252

ELECTRICAL WIRE

WIRE - cross stop lite to stop lite (Black 18")

1шт.

32

A26893

WIRE - vacuum swt. to ground (Black 6-1/2")

1шт.

33

A14739

SWITCH ASSY. - vacuum,. air cleaner warning

1шт.

34

221-1401

ELBOW,45º, 1/8"-27, NPT

- street, 45 degrees 1/8" taper P.T.

1шт.

35

A35031

SENDER UNIT

UNIT ASSY. - engine oil press sending

1шт.

36

L10129

SOCKET ASSY. - chassis wiring L.H., Includes: Ref. 37 - 42

1шт.

37

A13777

BLOCK - wiring, socket

1шт.

38

NSS

NOT SOLD SEPARAT

WIRE - socket to left rear tail light (Black 122")

1шт.

39

NSS

NOT SOLD SEPARAT

WIRE - socket to starter term. (White 86")

1шт.

40

NSS

NOT SOLD SEPARAT

WIRE - socket to vacuum switch (White 128")

1шт.

41

NSS

NOT SOLD SEPARAT

WIRE - socket to left rear head lamp (Black 140")

1шт.

42

NSS

NOT SOLD SEPARAT

WIRE - socket to eng. press. sending (Red 82")

1шт.

43

A15514

CABLE - battery to starter solenoid

1шт.

44

A27069

CABLE

-, Serial Range: battery-ground

1шт.

45

A7440

CABLE

- cross, Serial Range: battery-battery

1шт.

46

A14759

X

BATTERY - dry-charged (12 volt)

2шт.

47

A16365

WIRE - cross, front head lamps (Black 38")

1шт.

48

A16366

WIRE - left front lamp to connector (Black 24")

1шт.

49

A27340

ELECTRICAL WIRE

WIRE - horn to strg. column conn. (Black 13")

1шт.

50

A56428

WIRE - horn to panel connector (Black 40")

1шт.

51

A19581

HORN

ASSY - warning sound (Repairs, figgure 72)

1шт.

52

A15485

STARTING MOTOR

MOTOR ASSY. - starter (Repairs, figure 66)

1шт.

53

A27933

GASKET

- starter mounting

1шт.

54

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

55

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex. hd., 1/2" x 2-1/2" N.C.

1шт.

56

A56095

ALTERNATOR

ASSY. - 45 amp. (Repair, figure 60)

1шт.

57

A56096

BRACKET

- alternator mounting

1шт.

58

A18423

PULLEY - drive, alternator

1шт.

59

A56099

STRAP - adjusting, alternator

1шт.

60

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

2шт.

61

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

62

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

1шт.

63

193-520

BOLT - hex. hd., 3/8" x 7/8" N.C. Spec.

1шт.
