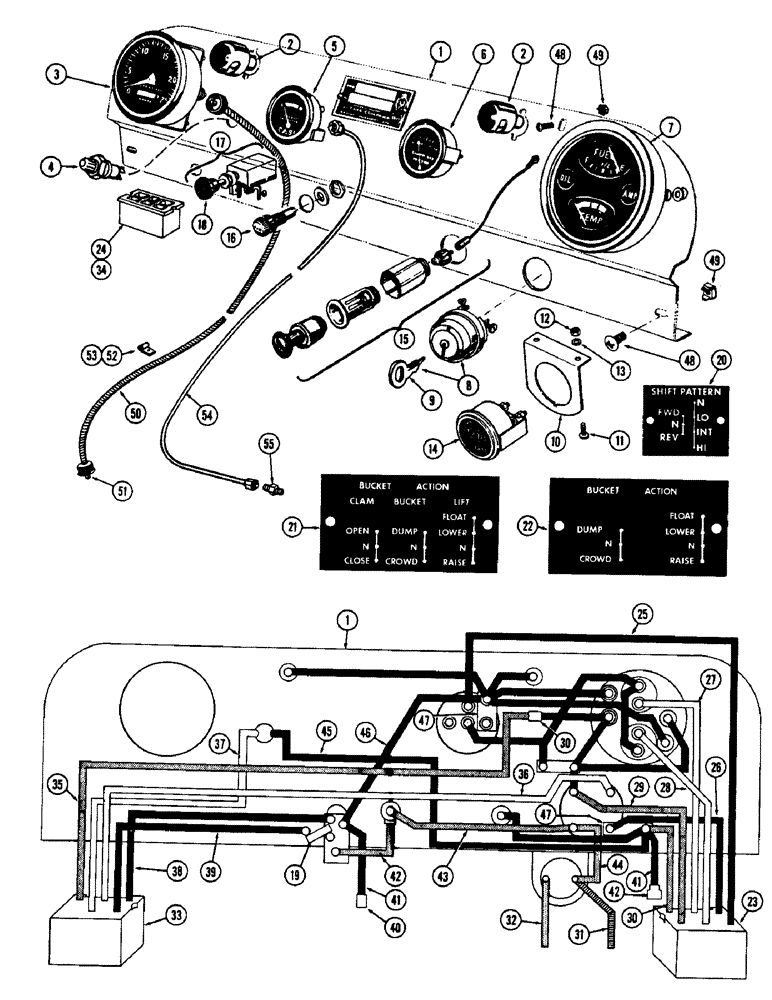

Запчасти Case W12 (044) - INSTRUMENT PANEL W/ALTERNATOR, (STANDARD 45 AMP) (04) - ELECTRICAL SYSTEMS

L10125

PANEL ASSY - instrument, Includes: Ref. 1 - 9

1шт.

1

A14729

PANEL - instrument

1шт.

2

A14737

LAMP

ASSY. - dash (Repairs, figure 70)

2шт.

3

A11190

TACHOMETER

ASSY - engine

1шт.

4

A14736

LAMP ASSY. - air cleaner warning (Repairs, figure 70)

1шт.

5

A56447

ELECTRICAL GAUGE

GAUGE ASSY - converter pressure

1шт.

6

A13756

GAUGE

ASSY - converter oil temperature

1шт.

7

A14730

INSTRUMENT CLUSTER

CLUSTER ASSY. - instrument (Repairs, figure 70)

1шт.

8

A11373

SWITCH

ASSY - ignition & starter (w/key), Includes: Ref. 9

1шт.

9

A20346

KEY

- ignition switch

1шт.

10

L10131

BRACKET - ammeter

1шт.

11

173-97

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- mach., #10-1/2" N.C., rd. hd.

2шт.

12

129-7

NUT,Hex, #10 - 24

- hex., #10 N.C.

2шт.

13

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

14

A55699

ELECTRICAL GAUGE

AMMETER ASSY - 60 amp

1шт.

15

G44915

X

LIGHTER ASSY. - cigarette (Repairs, figure 70)

1шт.

16

A8006

NOZZLE HOLDER

HOLDER ASSY. - fuse (Repairs, figure 70)

1шт.

17

A20201

SWITCH

ASSY - light, Includes: Ref. 18

1шт.

18

A7817

KNOB

- light switch

1шт.

19

A14900

RESISTOR

- switch tail lamp

1шт.

20

A18405

PLATE - shift pattern

1шт.

21

A19277

PLATE ASSY.

PLATE - bucket action (2 spool valve)

1шт.

22

A18406

PLATE ASSY.

PLATE - bucket action (3 spool valve)

1шт.

23

L10126

PLUG ASSY - wire, panel R.H., Includes: Ref. 24 - 39

1шт.

24

A13742

BLOCK - wire plug

1шт.

25

A13746

WIRE - plug to conv. temp. ga. (Black 12-1/4")

1шт.

26

A18918

WIRE - plug to ign. junction block (Yellow 12")

1шт.

27

A13745

WIRE - plug to cluster fuel term. (White 7")

1шт.

28

A13744

WIRE - plug to cluster temp. term. (White 5-1/4")

1шт.

29

A13743

WIRE - plug to ign. swt. "A" term. (Red 7")

1шт.

30

A13743

WIRE - plug to ign. term. block (Red 7")

1шт.

31

NSS

NOT SOLD SEPARAT

WIRE - plug harness, ammeter to field relay #1 term. (Orange 87")

1шт.

32

NSS

NOT SOLD SEPARAT

WIRE - plug harness, ammeter to starter solenoid term. (Red 117")

1шт.

33

L10127

PLUG ASSY - wire, panel L.H.

1шт.

34

A13742

BLOCK - plug wire

1шт.

35

A13747

WIRE - plug to cluster connector (Red 14")

1шт.

36

A13749

WIRE - plug to ign. swt. "S" term. (White 24")

1шт.

37

A14732

WIRE - plug to warning lite (White 11")

1шт.

38

A13750

WIRE - plug to light switch term. (Black 12")

1шт.

39

A13750

WIRE - plug to light switch resistor (Black 12")

1шт.

40

A27213

CONNECTOR - two wire

2шт.

41

A13753

WIRE - light swt. to front light conn. & ign. swt. block to horn & wiper conn. (Black 3")

2шт.

42

A13751

WIRE - fuse to light switch (Red 3")

1шт.

43

A13752

WIRE - fuse to ign. swt. "B" term. (Red 13")

1шт.

44

A12482

WIRE - amm. to ign. swt. "B" term. (Red 10")

1шт.

45

A14735

WIRE - warning lite to ign. term. block (Black 17")

1шт.

46

A13754

ELECTRICAL WIRE

WIRE - light swt. to cluster term. (Black 9")

1шт.

47

A9348

BLOCK - terminal, electrical

2шт.

48

175-428

SCREW,Phil Truss Hd, 1/4" - 20 x 5/8"

- mach., 1/4" x 5/8" truss hd.

4шт.

49

131-118

NUT - 1/4" Tinnerman

4шт.

50

A12430

HOUSING

DRIVE ASSY - tachometer, Includes: Ref. 51

1шт.

51

A13200

CABLE

- drive, tachometer

1шт.

52

A26696

NO LONGER SERVICED

CLIP - retainer, tachometer cable

1шт.

53

A27033

CLIP - retainer, tachometer cable

2шт.

54

A8216

TUBE

- converter pressure

1шт.

55

222-20

CONNECTOR, ELEC,3/8"-24 x 1/8" NPTF

CONNECTOR - 1/8" tube x 1/8" P.T.

1шт.
