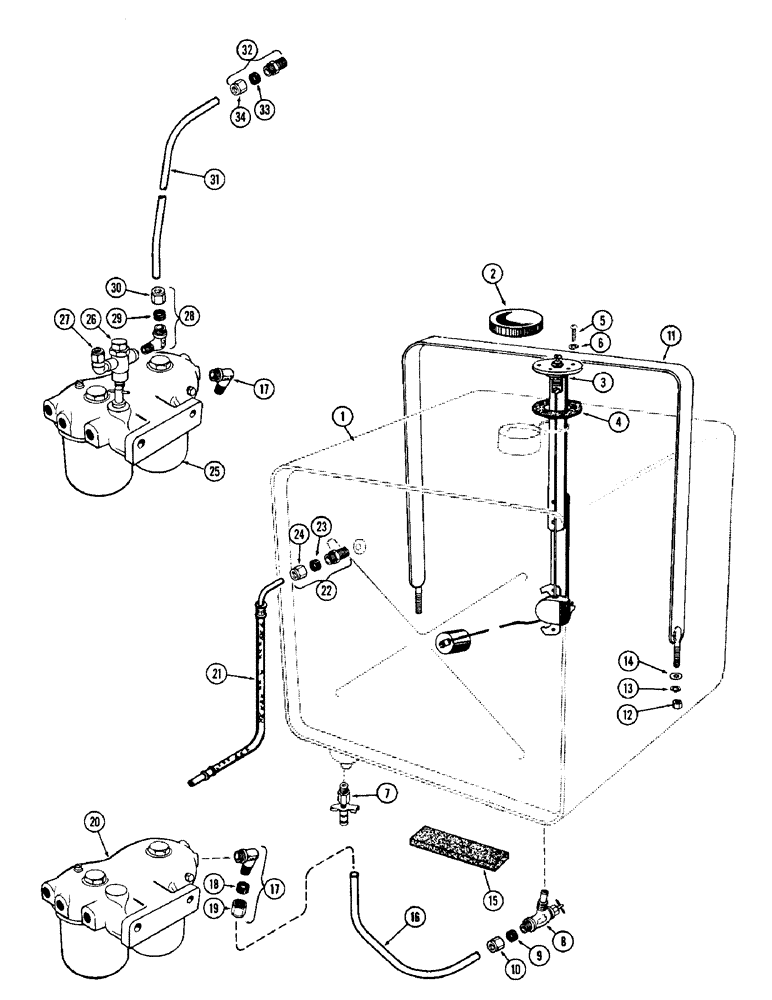

Запчасти Case W12 (034) - FUEL TANK (03) - FUEL SYSTEM

1

A15998

TANK ASSY. - fuel

1шт.

2

A33558

CAP

- filler, fuel tank (Replaces A22451)

1шт.

3

A15997

SENDER UNIT

UNIT ASSY. - sending, fuel

1шт.

4

A11822

GASKET

- sending unit mounting

1шт.

5

174-201

SCREW,Sl Rnd Hd, #10 - 32 x 5/8"

- mach., #10-32 x 5/8" rd. hd.

5шт.

6

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

5шт.

7

217-102

PLUG, DRAIN

VALVE ASSY - drain fuel tank, Includes: Ref. 9 - 10

1шт.

8

A27955

VALVE

ASSY. - needle, fuel tank, Includes: Ref. 9 - 10

1шт.

9

222-104

SLEEVE,3/8" Tube

- valve, 3/8" Tube

1шт.

10

222-114

NUT,5/8"-24

NUT - valve, 3/8" tube

1шт.

11

A14294

STRAP - hold-down, tank

2шт.

12

25-116

NUT,Hex, 3/8"-24, G5

- hex., 3/8" N.F.

4шт.

13

92-6

LOCK WASHER,3/8"

4шт.

14

195-25

WASHER,3/8"

- plain, SAE 3/8"

4шт.

15

A7390

PAD - fuel tank cushion

4шт.

16

A14296

TUBE - fuel tank to primary filter

1шт.

17

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

ASSY. - 3/8" tube x 1/2" P.T., Includes: Ref. 18 and 19

1шт.

18

222-104

SLEEVE,3/8" Tube

- elbow, 3/8 " tube

1шт.

19

222-114

NUT,5/8"-24

NUT - elbow, 3/8" tube x 1/4" P.T.

1шт.

20

A40435

FILTER

ASSY - primary (Used late models loaders) (Repairs, Figure 30)

1шт.

21

L10040

HOSE - #6 injector to fuel tank (Used w/A40435 primary filter)

1шт.

22

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

CONNECTOR ASSY - 1/4" tube x 1/4" P.T. (Use w/L10040), Includes: Ref. 23 and 24

1шт.

23

222-102

SLEEVE,1/4" Tube

Connector 1/4" Tube

1шт.

24

87017024

TUBE NUT,1/2"-24

NUT - connector, 1/4" tube x 1/4" P.T.

1шт.

25

A21133

FILTER

ASSY - fuel primary (Used early model loaders) (Order A40425) (Repairs, Figure .30)

1шт.

26

A20637

LOCK VALVE

VALVE ASSY - relief, fuel

1шт.

27

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ASSY - 1/4" tube x 1/8 P.T., Includes: Ref. 29 - 30

1шт.

28

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSY - 5/16" tube x 1/4" P.T. (Use w/A14297), Includes: Ref. 29 and 30

1шт.

29

222-103

SLEEVE,5/16" Tube

- elbow, 5/16" Tube

1шт.

30

222-113

TUBE NUT,9/16"-24

NUT - elbow, 5/16" tube x 1/4" P.T.

1шт.

31

A14297

TUBE - fuel, relief valve to fuel tank (Use w/A21133 primary filter)

1шт.

32

222-25

HYD CONNECTOR,9/16"-24 x 1/4" NPTF w/Nut

CONNECTOR ASSY - 5/16" tube x 1/4" P.T. (Use w/A14297), Includes: Ref. 33 and 34

1шт.

33

222-103

SLEEVE,5/16" Tube

- connector, 5/16" Tube

1шт.

34

222-113

TUBE NUT,9/16"-24

NUT - connector, 5/16" tube x 1/4" P.T.

1шт.
