Запчасти Case W12 (032) - FUEL INJECTION PUMP AND DRIVE, ENGINE LUBRICATED, SUMP (03) - FUEL SYSTEM

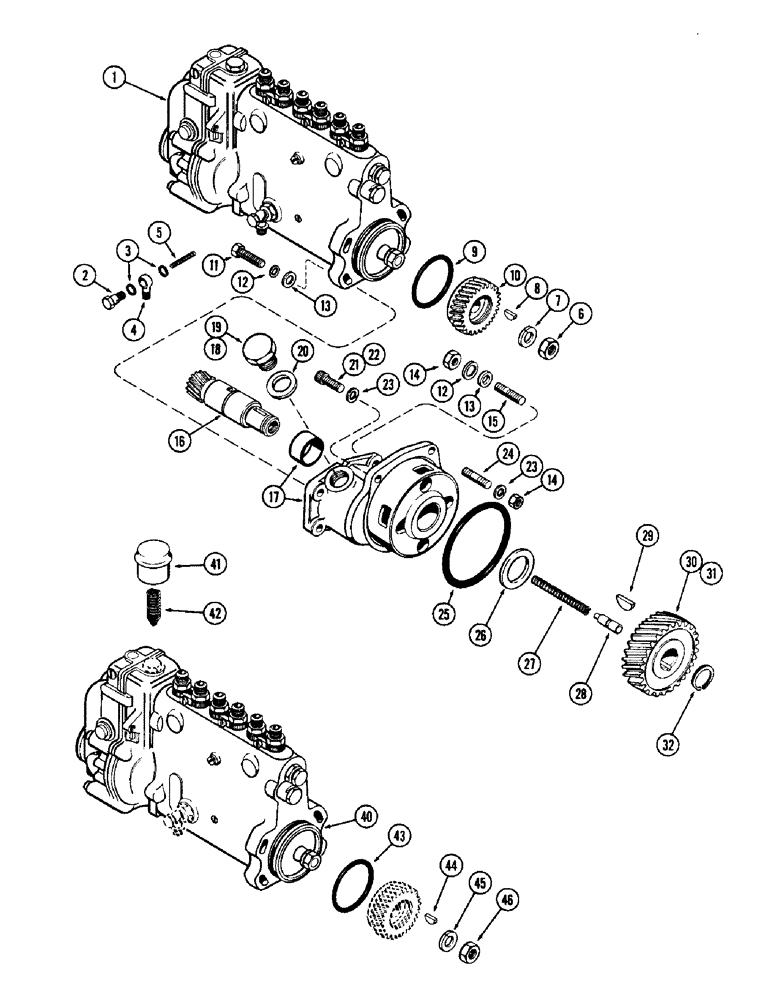

Схема запчастей Case W12 - (032) - FUEL INJECTION PUMP AND DRIVE, ENGINE LUBRICATED, SUMP (03) - FUEL SYSTEM

Артикул

Название

Примечание

Количество

1

A22639

PUMP, FUEL INJECTION

PUMP ASSY. - fuel transfer (2000 RPM), Includes: Ref. 2 - 9

1шт.

2

A25192

BANJO BOLT

BOLT - retainer, banjo fitting

1шт.

3

A22381

WASHER

- bolt & banjo fitting (Copper)

2шт.

4

A25191

FITTING

- banjo, pump lube oil

1шт.

5

A25190

SPRING

- plunger, fitting

1шт.

6

A25189

NUT - pump shaft

1шт.

7

A25188

WASHER

- lock, shaft nut

1шт.

8

A20933

KEY

- gear to pump shaft

1шт.

9

A20529

O-RING,2.598" ID x 2.834" OD

"O" RING - sealing, pump to housing

1шт.

10

A21139

GEAR

- drive, pump

1шт.

11

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex. hd., 3/8" x 1-1/4" N.C.

2шт.

12

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

13

195-25

WASHER,3/8"

- plain, SAE 3/8"

4шт.

14

25-116

NUT,Hex, 3/8"-24, G5

- hex., 3/8" N.F.

3шт.

15

A20664

STUD - pump mounting

2шт.

16

A20622

GEAR

PINION SHAFT - pump drive

1шт.

17

A21136

HOUSING ASSY. - pump drive w/bushing

1шт.

18

A21140

PLUG

- timing window (Used w/hydraulic brakes)

1шт.

19

A18550

PLUG

- timing window (Used w/hydrovac brakes)

1шт.

20

A27947

X

GASKET - timing hole plug

1шт.

21

61-620

HEX SOC SCREW,3/8"-16 x 1 1/4"

BOLT - 3/8" x 1-1/4" N.C., hex. sckt. hd.

1шт.

22

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

23

92-6

LOCK WASHER,3/8"

3шт.

24

A26554

STUD - housing mounting

1шт.

25

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - sealing, drive housing

1шт.

26

A27864

WASHER

- thrust, pinion shaft

1шт.

27

CASA27853

SPRING

- thrust plunger

1шт.

28

A27852

PLUNGER

- thrust, pinion shaft

1шт.

29

126-66

WOODRUFF KEY

KEY - drive gear, Woodruff #141

1шт.

30

A20899

GEAR WHEEL

GEAR - drive, pinion shaft (Use w/engine lubricated pump)

1шт.

31

A28026

X

GEAR - drive, pinion shaft (Use w/sump lubricated pump)

1шт.

32

A27576

SNAP RING,#98, Ext

RING - snap, , pinion shaft #98, Ext

1шт.

40

A20689

PUMP ASSY. - fuel transfer (Order A22639) (Used on Early Model Loaders), Includes: Ref. 41 - 46, sump lubricated

1шт.

41

NSS

NOT SOLD SEPARAT

CAP ASSY. - oil filler & breather (Order from Area Bosch Service store), sump lubricated

1шт.

42

A23043

BAFFLE - oil, spring type, sump lubricated

1шт.

43

A20529

O-RING,2.598" ID x 2.834" OD

"O" RING - sealing, pump mounting, sump lubricated

1шт.

44

A20933

KEY

- pump shaft (Woodruff), sump lubricated

1шт.

45

A25188

WASHER

- lock, pump shaft, sump lubricated

1шт.

46

A25189

NUT - pump shaft, sump lubricated

1шт.

Выбрано товаров: 39
