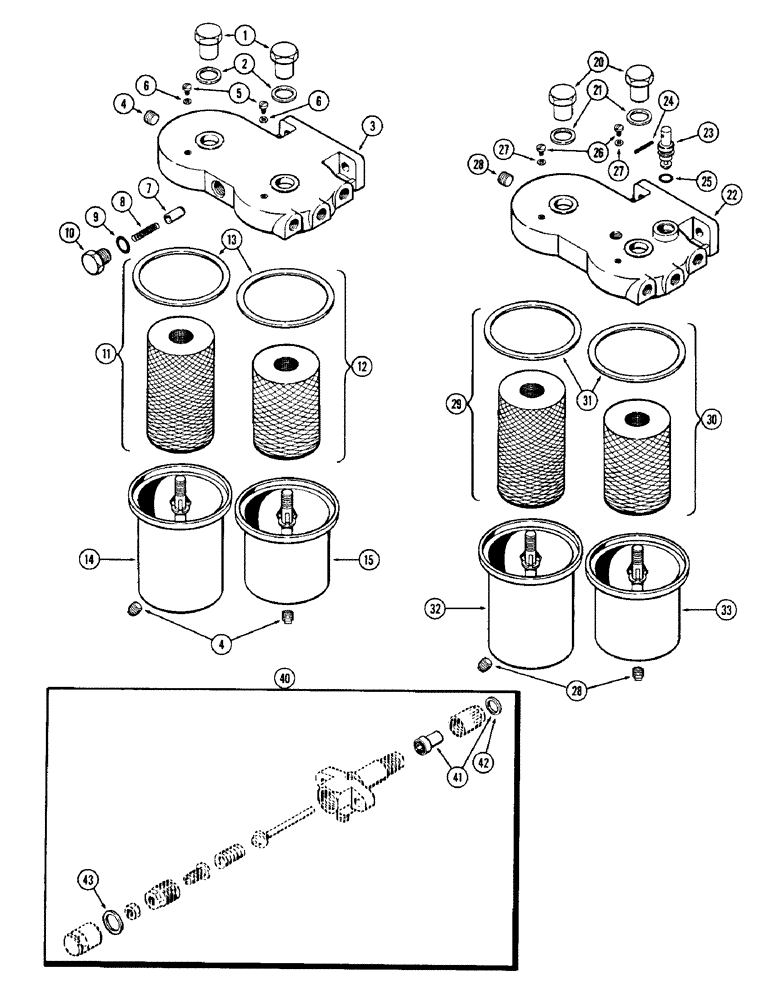

Запчасти Case W12 (030) - PRIMARY FUEL FILTER, LATE PRODUCTION (03) - FUEL SYSTEM

A40435

FILTER

ASSY. - fuel, 1st & 2nd stage primary, Includes: Ref. 1 - 15

1шт.

1

A21131

NUT

- filter head

2шт.

2

A28055

GASKET

- filter head nut

2шт.

3

A24915

HEAD - filter, 1st & 2nd stage

1шт.

4

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, 1/8" sq. hd.

3шт.

5

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- bleed, filter head

2шт.

6

A20662

GASKET

- bleed screw

2шт.

7

A24917

PLUNGER

- overflow

1шт.

8

A24918

SPRING

- plunger

1шт.

9

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - plug

1шт.

10

A24916

PLUG

- overflow regulating

1шт.

11

A21141

FILTER, ELEMENT

ELEMENT KIT - first stage filter, Includes: Ref.

1шт.

12

A7627

FILTER, ELEMENT

ELEMENT KIT - second stage filter, Includes: Ref. 13 - 15

1шт.

13

A28056

GASKET

- first & secon stage body

1шт.

14

A21129

BODY

- first stage filter

1шт.

15

A21132

BODY

- second stage filter

1шт.

A21133

FILTER

ASSY. - fuel, 1st. & 2nd. stage primary (Order A40435 for repairs), Includes: Ref. 20 - 33

1шт.

20

A21131

NUT

- filter head, early production

2шт.

21

A28055

GASKET

- filter head nut, early production

2шт.

22

A21077

FILTER HEAD

HEAD - filter, 1st. & 2nd. stage, early production

1шт.

23

A21097

VALVE - by-pass, early production

1шт.

24

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, , Early production 1/8" x 1", Slotted

1шт.

25

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

"O" RING - by-pass valve, early production

1шт.

26

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- bleed, filter head, early production

2шт.

27

A20662

GASKET

- bleed screw, early production

2шт.

28

221-11

PLUG,Sq Hd, 1/8"-27

- pipe, 1/8" sq. hd., early production

3шт.

29

A21141

FILTER, ELEMENT

ELEMENT KIT - first stage filter, Includes: Ref. 31, early production

1шт.

30

A7627

FILTER, ELEMENT

ELEMENT KIT - second stage filter, Includes: Ref. 31, early production

1шт.

31

A28056

GASKET

- 1st. & 2nd. stage body, early production

1шт.

32

A21129

BODY

- first stage filter, early production

1шт.

33

A21132

BODY

- second stage filter, early production

1шт.

40

A8013

NOZZLE INJECTION

INJECTOR ASSY., Includes: Ref. 41 - 43 - fuel injector assembly

6шт.

41

A31159

NOZZLE INJECTION

NOZZLE ASSY., Includes: Ref. 41 - 43 fuel injector assembl

1шт.

42

A27928

WASHER,14.22mm ID x 19.18mm OD x 2.06mm Thk

GASKET - injector nozzle, fuel injector assembly

1шт.

43

A31062

GASKET

- injector cap, fuel injector assembly

1шт.
