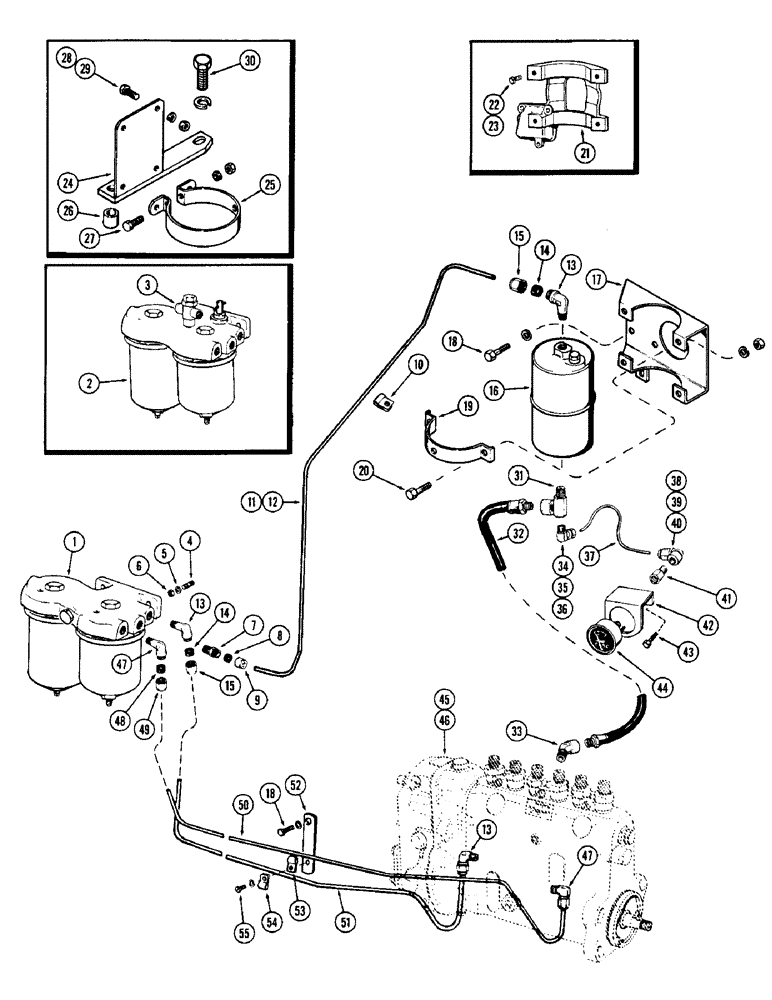

Запчасти Case W12 (026) - FUEL INJECTION FILTER SYSTEM (03) - FUEL SYSTEM

1

A40435

FILTER

ASSY. - fuel, primary 1st & 2nd stage (Used Late Models) (Repairs, Figure 30)

1шт.

2

A21133

FILTER

ASSY. - fuel, primary 1st & 2nd stage (Used Early Models) (Repairs, Figure 30) (Order A40435)

1шт.

3

A20637

LOCK VALVE

VALVE ASSY. - relief, filter

1шт.

4

A26554

STUD - filter mounting

2шт.

5

92-6

LOCK WASHER,3/8"

2шт.

6

25-116

NUT,Hex, 3/8"-24, G5

- hex., 3/8" N.F.

2шт.

7

222-25

HYD CONNECTOR,9/16"-24 x 1/4" NPTF w/Nut

CONNECTOR ASSY. - #68 fl., 5/16" tube x 1/4" P.T., Includes: Ref. 8 and 9

1шт.

8

222-103

SLEEVE,5/16" Tube

- connector, #60 fl., 5/16" Tube

1шт.

9

222-113

TUBE NUT,9/16"-24

NUT - connector, #61 fl., 5/16" tube

1шт.

10

A7922

CLIP

- fuel filter tube

2шт.

11

A22184

TUBE

- primary to final filter (Used w/A22183 and A33617 brackets)

1шт.

12

A20533

TUBE

- primary to final filter (Use w/A20723 brkt.)

1шт.

13

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSY. - 90 degrees - 69 fl., 5/16" tube x 1/4" P.T., Includes: Ref. 14 and 15

3шт.

14

222-103

SLEEVE,5/16" Tube

- elbow, #60 fl., 5/16 tube

1шт.

15

222-113

TUBE NUT,9/16"-24

NUT - elbow, #61 fl., 5/16" tube

1шт.

16

A27983

FILTER

ASSY. - fuel, final stage

1шт.

17

A33617

BRACKET - mtg. final filter (Late model)

1шт.

18

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

19

A21144

CLAMP

- final filter (w/A33617 & A22183 bracket)

2шт.

20

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

21

A22183

BRACKET - final filter, (Interm. of early & late model)

1шт.

22

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

23

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16" x 1-1/2" N.C.

2шт.

24

A20723

BRACKET - final filter (Early model)

1шт.

25

A27984

CLAMP - final filter (w/A20723 bracket)

2шт.

26

A28048

SPACER - filter bracket mounting (w/A20723 bracket)

2шт.

27

75-424

SCREW

- mach., 1/4" x 1-1/2" N.C. rd. hd.

2шт.

28

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

29

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

3шт.

30

13-732

BOLT,Hex, 7/16" - 14 x 2", Gr 5

2шт.

31

A20539

FITTING

UNION ASSY. - adapter 90 degrees

1шт.

32

A20538

FUEL HOSE,0.38" ID x 8.50"

Final filter to fuel pump 0.38" ID x 8.50"

1шт.

33

217-16

ELBOW,45 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- street, 1/4" P.T. x 45 degrees (Brass)

1шт.

34

222-40

ELBOW,90 Degree, 3/8"-24 Fem x 1/8"-27 NPTF

ASSY. - 1/8" tube x 1/8" P.T. x 90 degrees, Includes: Ref. 35 and 36

1шт.

35

222-100

TUBE NUT,1/8" Tube

SLEEVE - elbow, 1/8" Tube

1шт.

36

222-110

TUBE NUT,3/8"-24

NUT - elbow, 1/8" tube

1шт.

37

A9364

TUBE

- fuel pressure, Serial Range: gauge-filter

1шт.

38

222-53

ELBOW,3/8"-24 x 1/8 NPTF

ASSY. - 1/8" tube x 1/8" P.T., Includes: Ref. 39 and 40

1шт.

39

222-100

TUBE NUT,1/8" Tube

SLEEVE - elbow, 1/8" Tube

1шт.

40

222-110

TUBE NUT,3/8"-24

NUT - elbow, 1/8" tube

1шт.

41

A28061

FITTING

SNUBBER - fuel gauge

1шт.

42

A14498

X

SUPPORT - fuel gauge

1шт.

43

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

44

A11471

X

GAUGE ASSY. - fuel pressure

1шт.

45

A22639

PUMP, FUEL INJECTION

PUMP ASSY. - fuel transfer (Repairs, Figure 32) (Used Late Models) (2000 R.P.M.)

1шт.

46

A20689

PUMP ASSY. - fuel transfer (Repairs, Figure 32) (Used Early Models) (Order A22639)

1шт.

47

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

ASSY. - 3/8" tube x 1/4" P.T., Includes: Ref. 48 and 49

2шт.

48

222-104

SLEEVE,3/8" Tube

- elbow, 3/8" Tube

1шт.

49

222-114

NUT,5/8"-24

NUT - elbow, 3/8" tube

1шт.

50

A20693

TUBE

- 1st. stage filter to fuel pump

1шт.

51

A20531

TUBE

- fuel pump to 2nd stage filter

1шт.

52

A20537

SUPPORT - 1st. & 2nd stage filter tubes

1шт.

53

A20688

CLIP

- retainer, first stage tube

1шт.

54

A27814

X

CLIP - retainer, second stage tube

1шт.

55

72-46

SCREW - mach., 1/4" N.F. fillster hd.

1шт.
