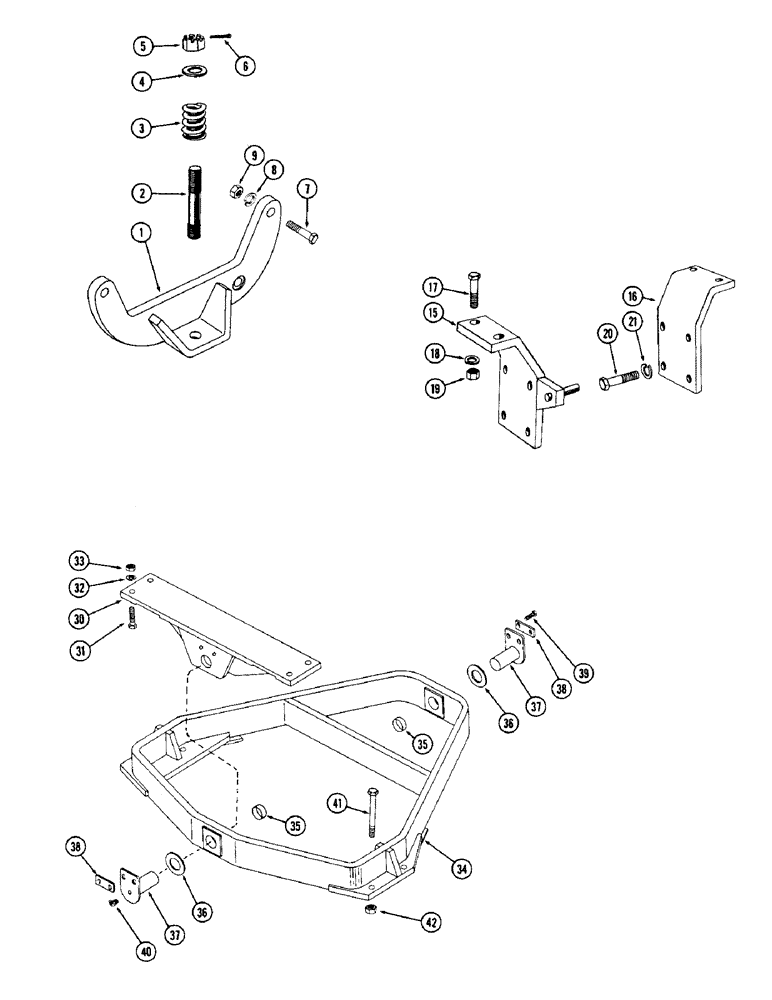

Запчасти Case W12 (156) - ENGINE MOUNT (02) - ENGINE

1

A14192

MOUNT - engine rear

1шт.

2

A12226

STUD - engine mount

1шт.

3

A12227

VALVE SPRING

SPRING - engine mount stud

1шт.

4

195-49

WASHER

- plain, 7/8"

2шт.

5

25-1914

SLOTTED NUT,7/8"-14, G5, Thk

NUT - hex. slotted, 7/8" N.F.

1шт.

6

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), 3/16" x 2"

1шт.

7

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

2шт.

8

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

9

25-1012

NUT,3/4"-10, G5

2шт.

15

A14195

BRACKET ASSY. - transmission R.H. mounting (w/pin), transmission mount

1шт.

16

A14197

BRACKET - transmission L.H. mounting, transmission mount

1шт.

17

14-1256

BOLT,Hex, 3/4" - 16 x 3-1/2", Gr 5

- hex. hd., 3/4 x 3-1/4" N.F., transmission mount

4шт.

18

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Transmission mount 3/4"

4шт.

19

25-1112

NUT,3/4"-16, G5

- hex., 3/4" N.F., transmission mount

4шт.

20

12-1028

BOLT - hex. hd., 5/8 x 1-3/4" N.C., transmission mount

8шт.

21

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Transmission mount 5/8"

8шт.

30

A13999

BRACKET - rear axle pivot mounting, rear axle pivot and mount

1шт.

31

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

Rear axle pivot and mount Hex, 5/8"-11 x 2 1/4", G5

4шт.

32

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Rear axle pivot and mount 5/8"

4шт.

33

25-1010

NUT,5/8"-11, G5

Rear axle pivot and mount 5/8"-11, G5

4шт.

34

A13992

PIVOT ASSY. - rear axle mounting, Includes: Ref. 35, rear axle pivot and mount

1шт.

35

A12058

BUSHING,44.88mm ID x 53.92mm OD x 38.1mm L

- pivot pin (replaces A12508), rear axle pivot and mount

2шт.

36

A14003

WASHER

- thrust, pivot pin, rear axle pivot and mount

2шт.

37

A14001

PIN - pivot, axle mounting, rear axle pivot and mount

2шт.

38

A15157

LOCK ASSY

LOCK - pivot pin, rear axle pivot and mount

2шт.

39

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

Rear axle pivot and mount Hex, 1/2"-13 x 1", G5, Full Thd

4шт.

40

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Rear axle pivot and mount 90º, 1/8" NPT x .84" lg

2шт.

41

116-800

BOLT - hex. hd., 7/8" x 11" N.F., rear axle pivot and mount

8шт.

42

131-187

LOCK NUT,7/8"-14, GB

NUT - hex. lock, 7/8" N.F., Esna, rear axle pivot and mount

8шт.
