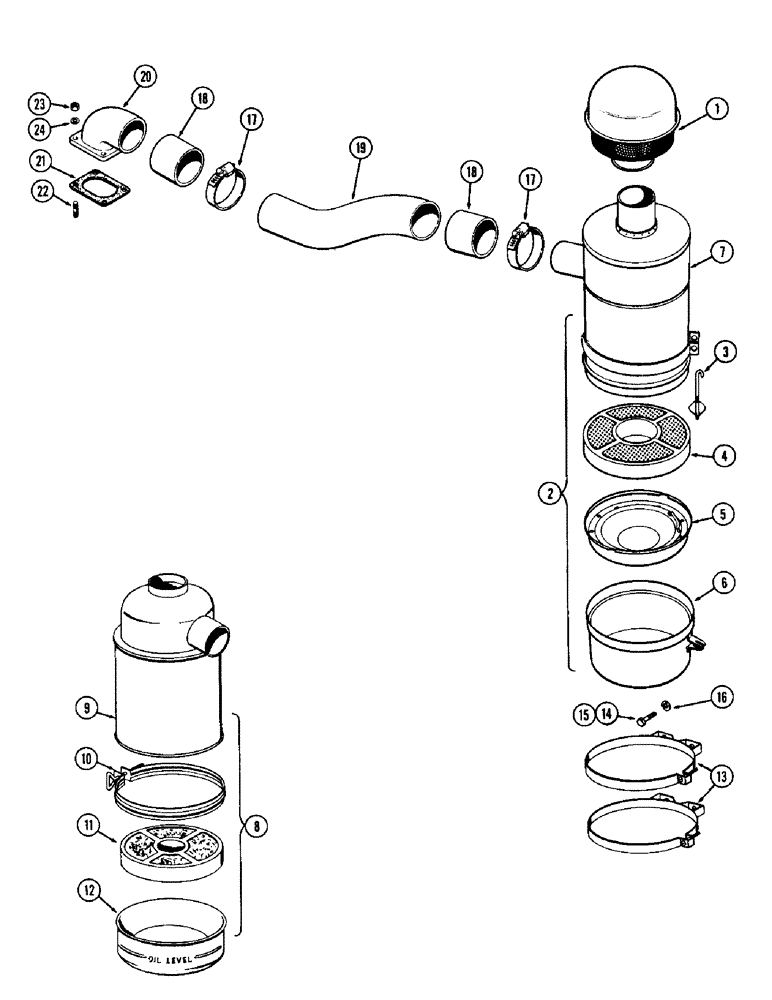

Запчасти Case W12 (042) - OIL BATH AIR CLEANER, EARLY PRODUCTION (02) - ENGINE

1

A16575

PRESCREENER

SCREENER ASSY - pre-air

1шт.

2

A17751NS

CLEANER ASSY - air, oil bath (Order ref. 2, 13 and 12 on figure 40) (Early Late Model), Includes: Ref. 3 - 7

1шт.

3

A55771

HARDWARE

BOLT ASSY - oil cup retainer (w/wing nut)

2шт.

4

A55768

SPARE PART

ELEMENT - air cleaner

1шт.

5

A55769

CUP

- oil, inner

1шт.

6

A55770

CUP - oil, outer

1шт.

7

NSS

NOT SOLD SEPARAT

BODY ASSY - air cleaner (Order A56302, figure 40)

1шт.

8

A16573NS

CLEANER ASSY - air, oil bath (Order ref. 2, 12 and 13 on figure 40) (Early Model), Includes: Ref. 9 - 13

1шт.

9

NSS

NOT SOLD SEPARAT

BODY ASSY - air cleaner (Order A56302, figure 40)

1шт.

10

L30435

CLAMP

ASSY. - cup ret. (Exh. stock: order L30507)

1шт.

10

L30507

CLAMP

ASSY - oil cup retainer

1шт.

11

L30433

CUP

ELEMENT - air cleaner

1шт.

12

L30508

CUP - oil

1шт.

13

A16574

BAND

ASSY - air cleaner mounting

2шт.

14

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

15

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

16

92-6

LOCK WASHER,3/8"

4шт.

17

214-45

HOSE CLAMP

CLAMP - hose, air intake tube

4шт.

18

A16577

HOSE - air intake tube

2шт.

19

A16576

TUBE - air intake

1шт.

20

A16578

ELBOW - intake

1шт.

21

A20678

GASKET

- elbow mounting

1шт.

22

A7597

STUD - mounting, elbow to intake manifold

4шт.

23

25-116

NUT,Hex, 3/8"-24, G5

- hex., 3/8" N.F.

4шт.

24

92-6

LOCK WASHER,3/8"

4шт.
