Запчасти Case W12 (040) - OIL BATH AIR CLEANER, LATE PRODUCTION (02) - ENGINE

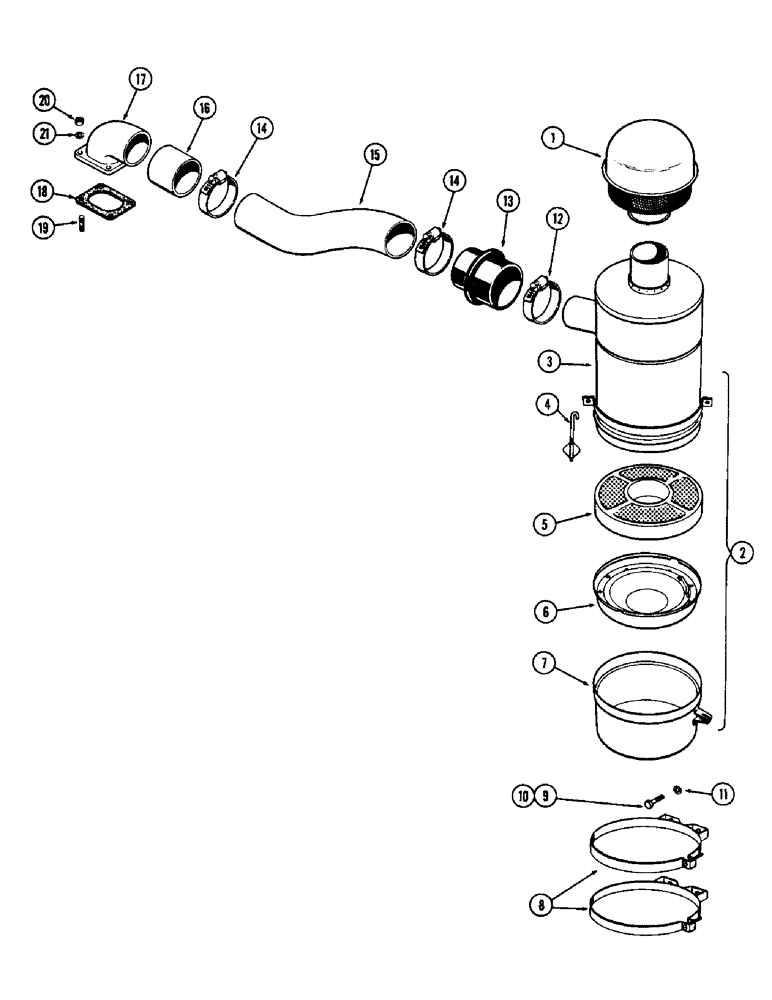

Схема запчастей Case W12 - (040) - OIL BATH AIR CLEANER, LATE PRODUCTION (02) - ENGINE

Артикул

Название

Примечание

Количество

1

A16575

PRESCREENER

SCREENER ASSY - pre-air

1шт.

2

A56302

AIR CLEANER

CLEANER ASSY - air, oil bath, Includes: Ref. 3 - 7

1шт.

3

NSS

NOT SOLD SEPARAT

BODY ASSY - air cleaner (Order A56302)

1шт.

4

A55771

HARDWARE

BOLT ASSY. - oil cup retainer (w/wing nut)

2шт.

5

A55768

SPARE PART

ELEMENT - air cleaner

1шт.

6

A55769

CUP

- oil, inner

1шт.

7

A55770

CUP - oil, outer

1шт.

8

A16574

BAND

ASSY - air cleaner mounting

2шт.

9

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

10

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

11

92-6

LOCK WASHER,3/8"

4шт.

12

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - adapter to air cleaner

1шт.

13

A56303

ADAPTER - air cleaner tube

1шт.

14

214-45

HOSE CLAMP

CLAMP - hose

2шт.

15

A16576

TUBE - air intake

1шт.

16

A16577

HOSE - elbow to intake tube

1шт.

17

A16578

ELBOW - air intake

1шт.

18

A20678

GASKET

- intake elbow mounting

1шт.

19

A7597

STUD - mounting, elbow to intake manifold

4шт.

20

25-116

NUT,Hex, 3/8"-24, G5

- hex., 3/8" N.F.

4шт.

21

92-6

LOCK WASHER,3/8"

4шт.

Выбрано товаров: 21
