Запчасти Case W12 (038) - DRY AIR CLEANER SYSTEM, DRY AIR CLEANER (02) - ENGINE

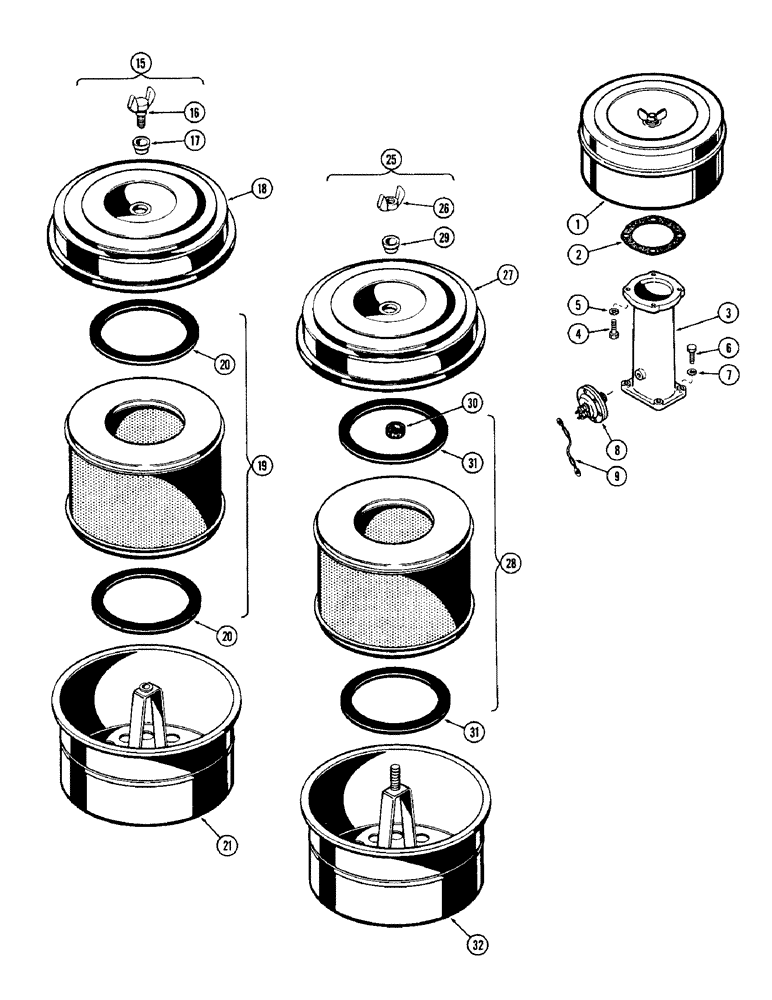

Схема запчастей Case W12 - (038) - DRY AIR CLEANER SYSTEM, DRY AIR CLEANER (02) - ENGINE

Артикул

Название

Примечание

Количество

1

A14417

AIR CLEANER

CLEANER ASSY - air, 8"

1шт.

2

A15304

GASKET

- air cleaner mounting

1шт.

3

A20747

ADAPTER - air cleaner to int. manifold

1шт.

4

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

5

92-6

LOCK WASHER,3/8"

4шт.

6

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

7

92-6

LOCK WASHER,3/8"

4шт.

8

A14739

SWITCH ASSY - air cleaner warning

1шт.

9

A26893

WIRE -, Serial Range: switch-ground

1шт.

321-153

DECAL

- caution (Not illustrated)

1шт.

15

A14417

AIR CLEANER

CLEANER ASSY - air, 8" (Late Model), Includes: Ref. 16 - 21, dry air cleaner

1шт.

16

A15873

BOLT - wing, cleaner cover, dry air cleaner

1шт.

17

A15901

SEAL - cover and wing bolt, dry air cleaner

1шт.

18

A15899

COVER

- air cleaner, dry

1шт.

19

A15903

ELEMENT

KIT - , Includes: Ref. 20, dry air cleaner

1шт.

20

A15900

GASKET - element, dry air cleaner

2шт.

21

NSS

NOT SOLD SEPARAT

BODY - air cleaner (Order A14417), dry air cleaner

1шт.

25

A14417

AIR CLEANER

CLEANER ASSY - air, 8" (Early Model), Includes: Ref. 26 - 32, dry air cleaner

1шт.

26

129-410

WING NUT,3/8"-16

NUT - wing, 3/8" N.C., dry air cleaner

1шт.

27

A15241

COVER - air cleaner, dry

1шт.

28

A15903

ELEMENT

KIT - Includes: Ref. 29 - 31, dry air cleaner

1шт.

29

A15902

WASHER - seal, cover & wing nut, dry air cleaner

1шт.

30

A15243

SEAL - cleaner cover, dry air cleaner

1шт.

31

A15242

GASKET - element, dry air cleaner

2шт.

32

NSS

NOT SOLD SEPARAT

BODY - air cleaner (Order A14417), dry air cleaner

1шт.

Выбрано товаров: 25
