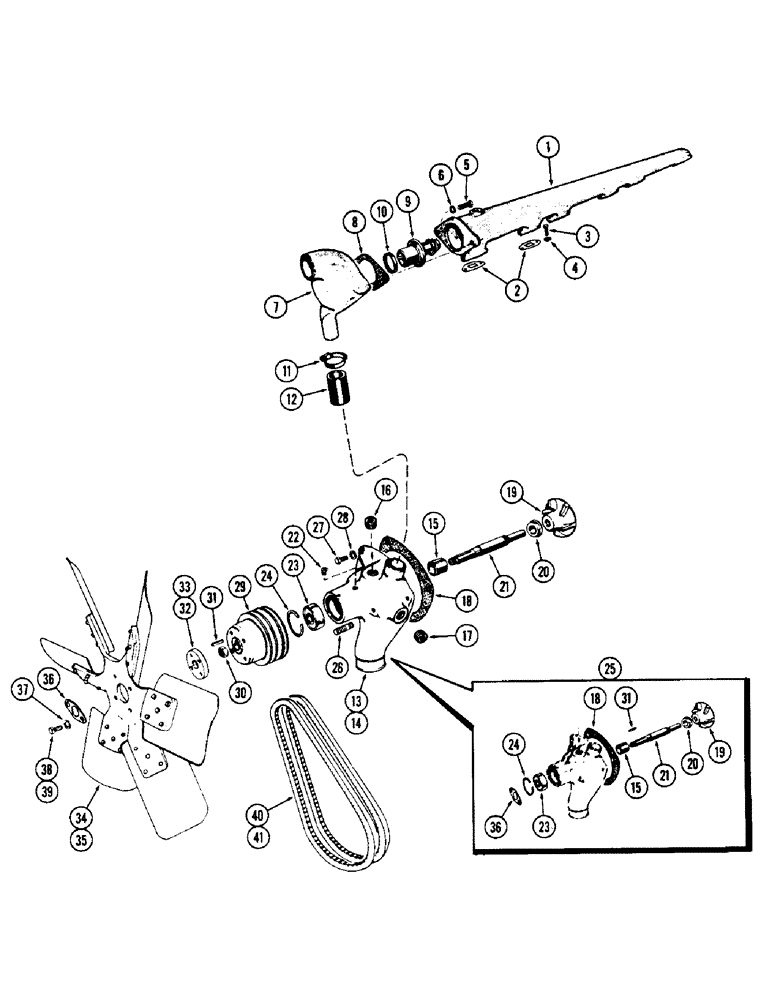

Запчасти Case W12 (024) - WATER MANIFOLD - PUMP AND FAN (02) - ENGINE

1

A11419

HOSE ASSY.

MANIFOLD - water, engine

1шт.

2

A27905

GASKET

- water manifold mounting

6шт.

3

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

12шт.

4

92-5

LOCK WASHER,5/16"

12шт.

5

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

6

92-6

LOCK WASHER,3/8"

2шт.

7

A11420

HOUSING - thermostat

1шт.

8

A11421

GASKET

- thermostat hsg. mounting

1шт.

9

A7634

THERMOSTAT

ASSY. - water (180-195 degrees F.), Includes: Ref. 10

1шт.

10

A11423

SEAL

- thermostat

1шт.

11

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

12

A11887

HOSE,1.50" ID x 2.75", SAE 20R2

- Water by-pass 1.50" ID x 2.75", SAE 20R2

1шт.

13

A21463

X

PUMP ASSY. - water, eng. (Exh. stock: Order A24809)

1шт.

13

A24809

PUMP

ASSY. - water, engine, Includes: Ref. 14 - 24

1шт.

14

A24992

THRUST WASHER

BODY ASSY. - water pump, Includes: Ref. 15 - 17

1шт.

15

A27900

BUSHING

- pump shaft

1шт.

16

221-843

PLUG,Hex Soc, 3/8"-18

- pipe, 3/8" hex. socket hd.

1шт.

17

221-845

PLUG,Hex Soc, 3/4"-14

- pipe, 3/4" hex. socket hd.

1шт.

18

1342741C1

GASKET

- pump mounting

1шт.

19

A26299

IMPELLER

- pump

1шт.

20

A24995

SEAL

- water pump

1шт.

21

A23636

SHAFT

- water pump (Replaces A21458)

1шт.

22

219-54

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - lube, 1/8" P.T. x 67-1/2 degrees

1шт.

23

A27152

BALL BEARING,19.99mm ID x 52mm OD x 19mm W

BEARING - pump shaft

1шт.

24

A27150

RING

- snap, bearing retainer

1шт.

25

A24180

KIT

REPAIR KIT - water pump

1шт.

26

A7391

STUD

- generator adjusting strap

1шт.

27

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

28

92-6

LOCK WASHER,3/8"

3шт.

29

A21454

PULLEY - fan & water pump

1шт.

30

A15488

NUT - pulley retaining

1шт.

31

A21075

KEY

- fan pulley (Replaces A27001)

1шт.

32

A15505

SPACER - fan (Used w/suction type)

1шт.

33

A15608

SPACER - fan (Used w/pusher type)

1шт.

34

A15519

FAN

- engine, suction type

1шт.

35

A15520

FAN

- engine, pusher type

1шт.

36

A26707

LOCK

- nut, fan

1шт.

37

92-6

LOCK WASHER,3/8"

4шт.

38

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

(Use w/suction fan) Hex, 3/8"-16 x 2 1/4", G5

4шт.

39

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

(Use w/pusher fan) Hex, 3/8"-16 x 1 3/4", G5

4шт.

40

A18426

SET OF BELTS,53.00" L

SET OF 2 BELTS , Fan drive (Use w/alternator) 53.00" L

1шт.

41

A21647

BELT,51.00" L

Fan drive (Set of 2) (Use w/reg. generator) 51.00" L

1шт.
